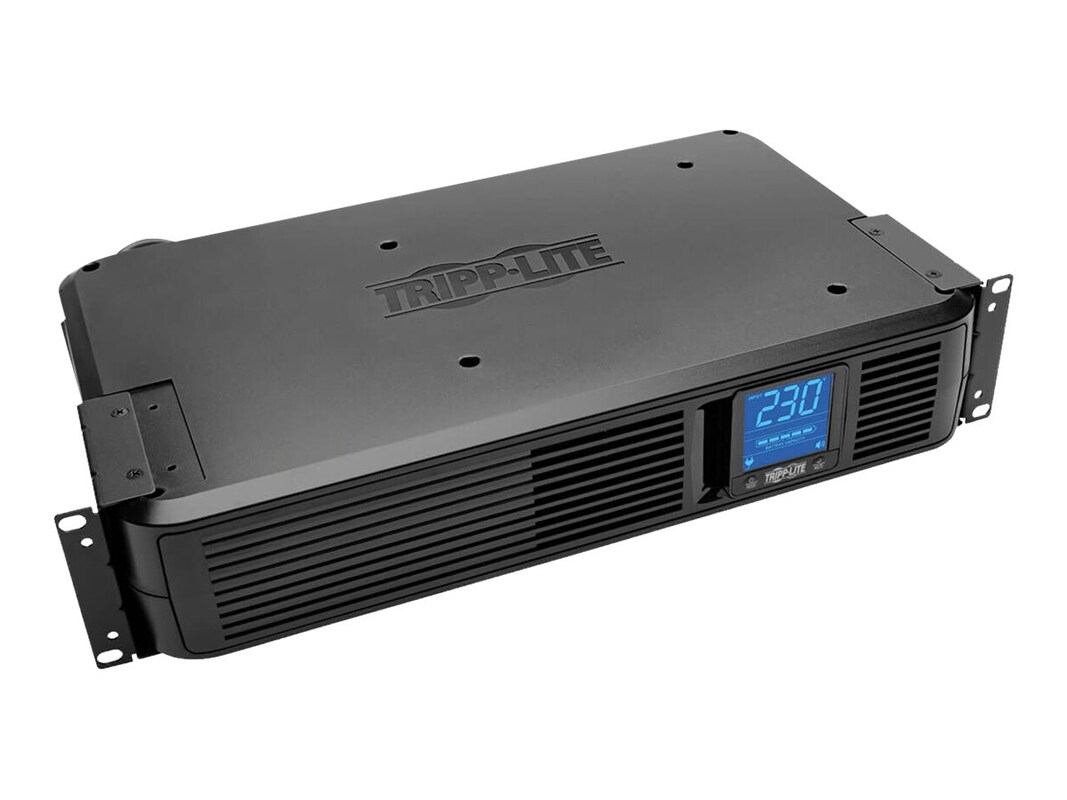

Tripp Lite's SMX1500LCD Line-Interactive Digital UPS System gives you voltage regulation, surge suppression and long-lasting battery support for personal computers, network workstations, home entertainment systems and media centers. Internal UPS circuits support entry-level PCs for up to 60 minutes or individual VCR/DVR components for up to 3 hours during power failures. Data losses, viewing interruptions, lost recordings and component programming failures are prevented. Automatic Voltage Regulation (AVR) circuits regulate brownouts as low as 176V back to usable levels without consuming battery power.
This UPS provides complete power protection in an attractive black tower or 2U rackmounted configuration. Included are (8) battery-supported AC outlets and a USB port which enables optional unattended system shutdown without data loss in the event of an extended power failure (a USB cable is included). PowerAlert Software available via free download from www.tripplite.com.
The HID-compliant USB interface enables full integration with the built-in power management and auto shutdown features of Windows and Mac OS X. Built-in single-line RJ-11 phone suppression jacks protect modem, satellite receiver or other peripherals with a standard dialup/DSL phone connection. A set of 2.2GHz coaxial jacks protect against surges entering on CATV, satellite or broadcast antenna connections. The built-in audible alarm and large LCD front panel voltage display indicate line power status, battery power status, battery low/replace status and voltage boost operation.
The 1500VA/900W power-handling ability of this UPS supports entry-level PCs, home entertainment systems, network workstations, audio/video components and more.
This UPS provides complete power protection in an attractive black tower or 2U rackmounted configuration. Included are (8) battery-supported AC outlets and a USB port which enables optional unattended system shutdown without data loss in the event of an extended power failure (a USB cable is included). PowerAlert Software available via free download from www.tripplite.com.
The HID-compliant USB interface enables full integration with the built-in power management and auto shutdown features of Windows and Mac OS X. Built-in single-line RJ-11 phone suppression jacks protect modem, satellite receiver or other peripherals with a standard dialup/DSL phone connection. A set of 2.2GHz coaxial jacks protect against surges entering on CATV, satellite or broadcast antenna connections. The built-in audible alarm and large LCD front panel voltage display indicate line power status, battery power status, battery low/replace status and voltage boost operation.
The 1500VA/900W power-handling ability of this UPS supports entry-level PCs, home entertainment systems, network workstations, audio/video components and more.
-
29.40 lbs
-
LEDS ALARMS & SWITCHES
Front panel LEDs Front panel LCD screen with blue backlight offers continuous input line voltage data, plus line power status, battery power status, battery charge level and voltage regulation operation
Alarms Audible alarm with 15-sec. delay sounds to indicate loss of utility power. Alarm can be silenced by pressing front panel alarm cancel button. Once silenced, alarm will re-sound when approximately 2 min. full load runtime remains
Switches: includes (2) front panel switches -- (1) main on/off power switch, (1) dual function alarm cancel/self test button
SURGE/NOISE SUPPRESSION
AC surge suppression: 480 joules
AC suppression response time: Instantaneous
Dataline suppression: Single line tel/DSL surge suppression with RJ-style phone connectors (center 2 wires protected, 260V clamping); includes phone cable. 1-set of coax connections (cable included).
EMI/RFI AC noise suppression: Yes -
# Ports: 8Communication Interface: USBConnector: Power IEC 320 EN 60320 C13 (F)Connector: Power IEC 320 EN 60320 C14 (M)Connector: Power IEC 60320 C14
-
UPS, USB cable, phone cable, coax cable, (2) C13 to C14 jumper cables, (2) tower/rackmount brackets, documentation
-
Attributes: Automatic voltage regulation (AVR)Attributes: Coaxial line protectionAttributes: Line interactiveAttributes: RJ-11 line protectionColor: Attractive blackColor: BlackEnclosure Type: InternalForm Factor: 2U RackmountForm Factor: ExternalForm Factor: TowerWarranty Period: 2 yearsWeight Taxonomy: 33.51lbs
-
3.5"h x 17.25"w x 10.5"d
-
Outlet quantity / type: (8) IEC-C13
Input connection type: IEC-C14 -
Battery Run Time (max): 4.5minPower Capacity (VA): 1500VAPower Provided: 900Power Provided: 900WSurge Suppression: StandardSurge Suppression: YesVoltage Provided: 230VVoltage Provided: 24V
-
Voltage compatibility:230VAC
Frequency compatibility:50/60Hz
OUTPUT
Output: 900W/1500VA
Output nominal voltage: 230VAC
Output voltage regulation BATTERY MODE: PWM sine wave 230V +/-5%
Output frequency regulation LINE MODE: Passes line frequency of 50/60Hz +/-10%
Output frequency regulation BATTERY MODE: Inverter output regulated to 50/60Hz +/-0.5Hz
INPUT
Maximum input: 4.4A
BATTERY
Full load runtime: 4.5 minutes (1500VA/900W)
Half load runtime: 13 minutes (750VA/450W)
DC system voltage: 24VDC
Typical battery lifespan: 3-6 years depending on usage
Battery recharge rate: 4-8 hours to 90%
VOLTAGE REGULATION
Voltage regulation description: Line-interactive voltage regulation corrects brownouts as low as 144V and overvoltages to 282 back to usable 230V values
Overvoltage correction: Input voltages between 245 and 282V are reduced by 12%
Brownout correction: Input voltages between 177 and 199V are boosted by 14%
Severe brownout correction: Input voltages between 144 and 176V are boosted by 30% -
This product is subject to our return policy. Please see our complete return policy for details.
-
35.4 lbs
-
Compliant Standards: FCC Class A certifiedCompliant Standards: GOSTCompliant Standards: RoHSCompliant Standards: SASO
-
