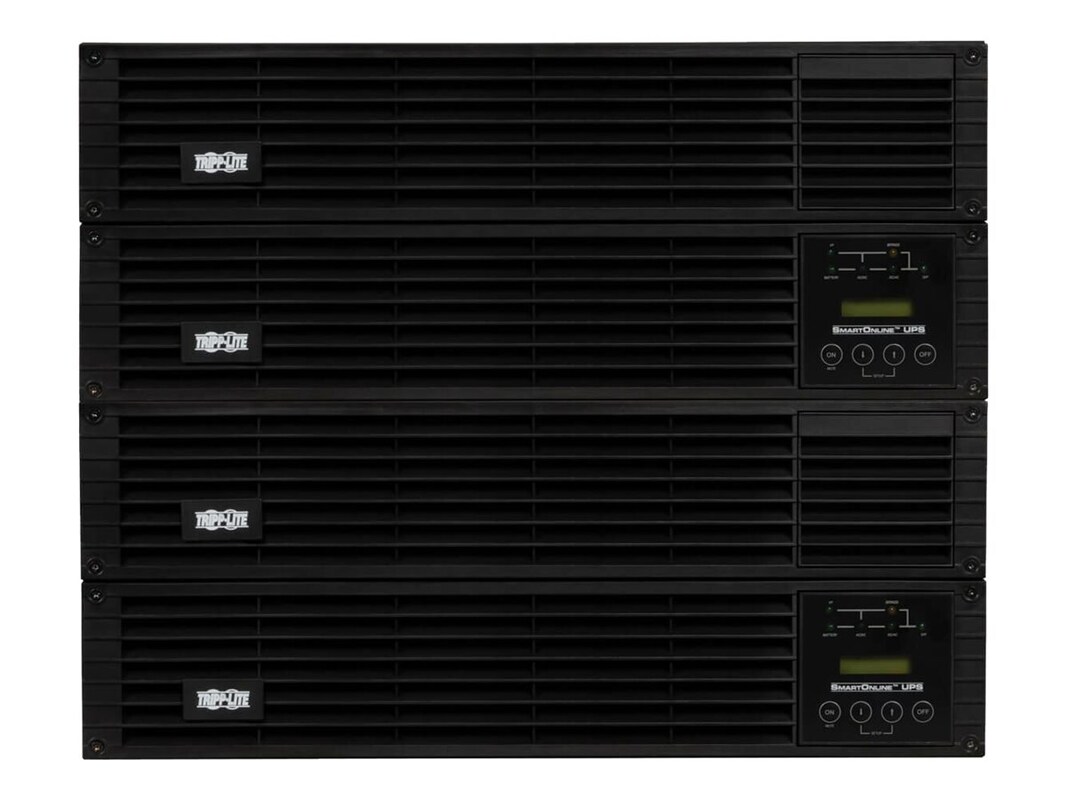

Tripp Lite SmartOnline EZ-Series 12,000VA 10,800W 240V UPS Hardwired Input Output USB Serial EPO (SU12KRT4UHW)

216.00 lbs

LEDS ALARMS & SWITCHES

LED Indicators: (6) LEDs indicate line power, online mode, economy/bypass mode, on-battery, charger and AC output status; LCD screen offers additional information and control options
Alarms: Unique audible alarms for all major UPS, environmental and power conditions (see manual)
Alarm cancel operation: Alarm cancel switch
Switches: Includes main power off/on switch, plus 2 switches to set and execute scrollable LCD functions. A manual bypass switch featured on the detachable PDU allows for complete removal of the UPS during routine maintenance without disrupting power to connected loads

SURGE / NOISE SUPPRESSION

UPS AC suppression response time: Instantaneous
EMI/RFI AC noise suppression: Yes

COMMUNICATIONS

Communications interface: USB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface
Network monitoring port description: Additional contact closure support with optional RELAYIOCARD and RELAYIOMINI interface cards. RELAYIOMINI installation requires removal of panel containing USB ports
PowerAlert software: Included
Communications cable: USB, DB9 serial and EPO cables included
WatchDog compatibility: Yes

LINE / BATTERY TRANSFER

Transfer time: No transfer time (0 ms.) in online, double-conversion mode
Low voltage transfer to battery power (setpoint): 156V (full load) / 100V (50% load or less, derates linearly)
High voltage transfer to battery power (setpoint): 280V (full load) / 300V (90% load or less)

SPECIAL FEATURES

Cold Start (startup in battery mode during a power failure): Cold-start operation supported
High availability UPS features: Automatic inverter bypass; Manual bypass switch; Detachable hot-swap PDU; Hot swappable UPS power module; Hot swappable batteries
Green & high efficiency features: High efficiency economy mode operation; Schedulable daily hours of economy mode operation

CERTIFICATIONS

UPS Certifications: Tested to UL1778 (USA); Tested to CSA (Canada); Meets FCC Part 15 Category A (EMI); RoHS (Restriction of Hazardous Substances); IEC 61000-4-5 1995 B Surge Immunity

UPS, USB, DB9, EPO cables, 4-post rackmount kit, documentation

13.8"h x 17.5"w x 20.7"d

Hardwire input
Hardwire output

OUTPUT

Output Capacity: 12,000VA/10,800W
Output power factor: 0.9
Output Capacity Details: 12,000VA (240V)/10,395VA (208V)/8400 watts (208/240V)
Crest Factor: 3:1
Nominal Output Voltages Supported: 200V; 208V; 220V; 230V; 240V
Frequency compatibility: 60Hz
Output voltage regulation (line mode): +/- 2%
Output voltage regulation (Economy line mode): +/- 10%
Output voltage regulation (Battery mode): +/- 2%

INPUT

Rated input current (at maximum load): 63.8A (200V), 61.2A (208V), 58A (220V), 55.4A (230V), 53.2A (240V) Nominal Input Voltages Supported: 200VAC; 208VAC; 220VAC; 230VAC; 240VAC

BATTERY

Full load runtime: 2 minutes (10,800 watts)
Half load runtime: 8.5 minutes (5400 watts)
Expandable battery runtime: Supports extended runtime with OPTIONAL external battery packs
External battery pack compatibility: BP192V12-3U ; BP192V557C-1PH ; BP192V787C-1PH ; BP192V1037C-1PH ; BP192V1407C-1PH
DC system voltage: 192V
Battery recharge rate: Less than 6 hours from 10% to 90% (internal batteries)

VOLTAGE REGULATION

Voltage regulation description: Online, double-conversion power conditioning
Overvoltage correction: Corrects overvoltages as high as 300V (<90% load) and 280V (full load)
Undervoltage correction: Corrects undervoltages as low as 100 (<50% load) and 155V (full load); derates linearly

This product is subject to our return policy. Please see our complete return policy for details.

345 lbs

39121011

2 Years

2 Years

$250,000 connected Equipment Insurance
