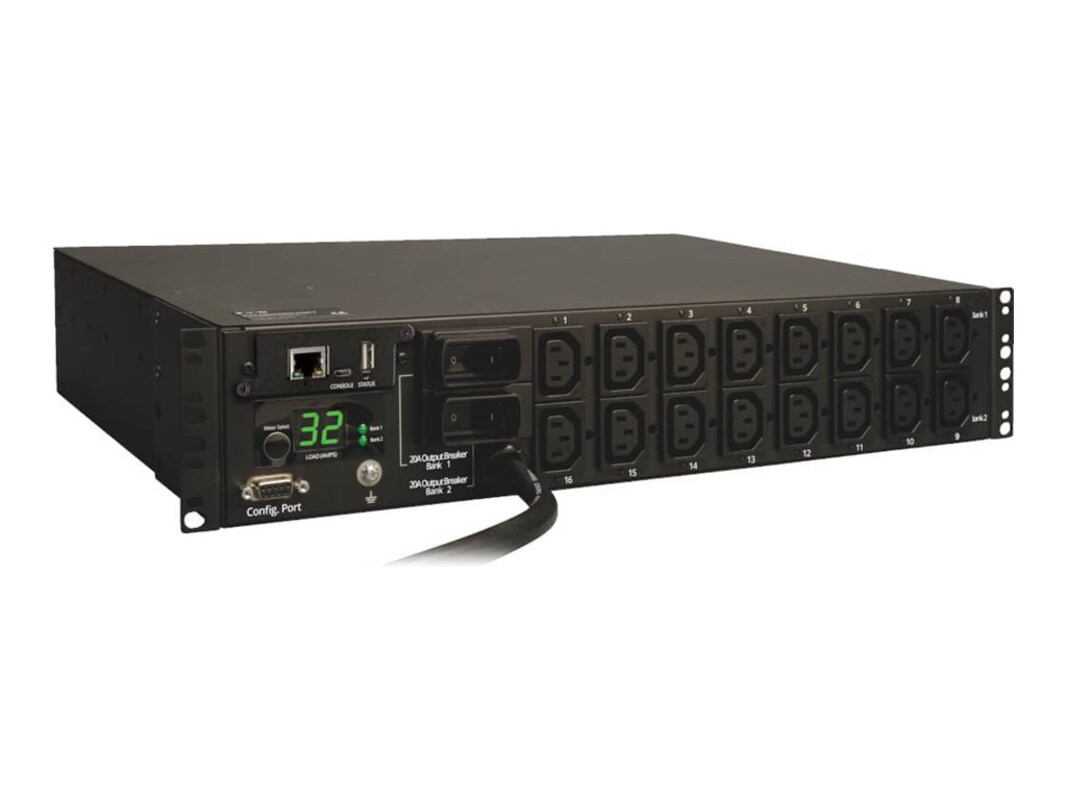

Tripp Lite Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on, turn off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption. PowerAlert interface supports remote control and custom notification of user-specified conditions via email, secure web, SNMP, Telnet or SSH interface. Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. PDU output current consumption in amps can be displayed locally via visual meter or remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip.
-
13.70 lbs
-
Features
230V Switched PDU with built-in web/network interface in 2U rackmount form factor; 32A capacity
Blue 230V IEC-309 32A (2P+E) input cable; 12 ft. / 3.6m power cable included
(16) switched C13 outlets
2U horizontal rackmount form factor
Supports power-on, power-off or reboot of each outlet on a real-time or programmable basis
Enables reboot of locked equipment, custom power-on/power-off sequences, load-shedding of optional loads and disabling unused outlets
Network interface provides PDU control and data regarding input voltage, frequency and loading information
Digital display reports load level information in amps
Supports user-specified alarm notification thresholds
In-rack environmental reporting with optional ENVIROSENSE temperature / humidity sensor and rack access notification with up to 4 optional SRSWITCH door sensors
DHCP/Manual configuration support
10/100Mbps auto-sensing
Real-time clock backup maintains the time of day and date even if the PDU is unpowered
Tiered access privileges allow an administrator and a guest to login via web browser
Alert notifications via email or SNMP traps offer immediate event notification
Firmware upgrade ability supports future product enhancements
Supports HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2, SNMPv3, Telnet, SSH, FTP, DHCP, BOOTP, NTP protocols
Fully compatible with FREE PowerAlert Network Management System / NMS Software
Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
Mounting ears are reversible for front or rear facing rackmount installation
Included cord retention brackets -
# Ports: 16Connector: Power IEC 309 (M)Connector: Power IEC 320 EN 60320 C13 (F)Connector: Power IEC 60309
-
PDU, rack installation hardware, configuration cable, cable ties, software, documentation
-
Attributes: SwitchedColor: BlackForm Factor: 2U RackmountForm Factor: Rack-mountableWarranty Period: 2 yearsWeight Taxonomy: 13.67lbs
-
3.5"h x 17.5"w x 12.5"d
-
Outlet quantity/type: (16) C13 outlets
Overload protection: Outlets are arranged in two banks of 8. Each bank is protected by a separate 20A circuit breaker
Customized load management receptacles: Each outlet is individually controllable via remote interface
Input connection type: IEC-309 32A (2P+E)
Input cord length: 12ft -
Power Provided: 7.4kWVoltage Provided: 230VVoltage Provided: AC 230V
-
OUTPUT
Output capacity: 7.4kW (230V) / 32A total capacity / 16A max per breakered outlet bank; 10A max per C13 outlet
Frequency compatibility: 50/60Hz
Output nominal voltage: 230VAC
INPUT
PDU Input Voltage: 230VAC
Recommended Electrical Service: 230VAC
Maximum Input: 32A
Phase: Single-Phase -
Remote Management Protocol: HTTPRemote Management Protocol: HTTPSRemote Management Protocol: SNMPRemote Management Protocol: SNMP 1Remote Management Protocol: SNMP 2Remote Management Protocol: Telnet
-
This product is subject to our return policy. Please see our complete return policy for details.
-
16.1 lbs
-
Compliant Standards: IEC 60950-1Compliant Standards: RoHS
-
