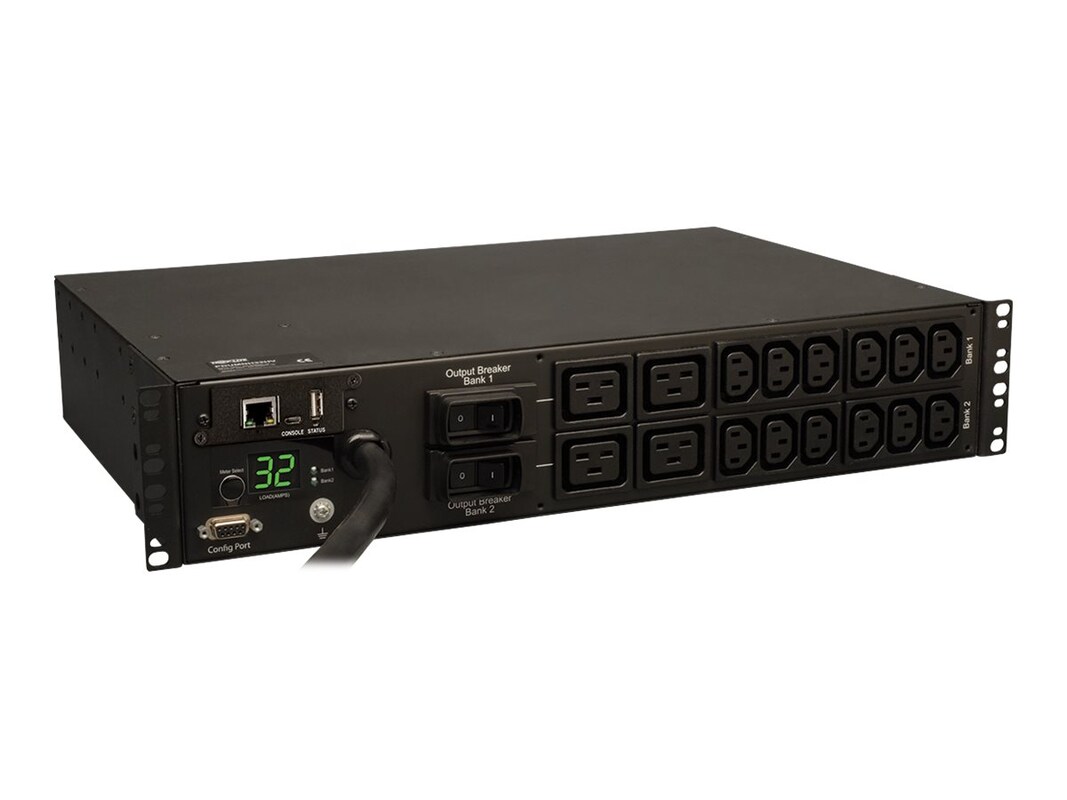

The PDUMNH32HV Monitored, 32A, 2U horizontal rackmount PDU supports a 7.3kW maximum capacity at 230V. An attached Blue 230V, IEC-309 32A (2P+E) input plug is included. (16) 230V outlets (12 C13, 4 C19) are arranged in two separately breakered 8-outlet banks. Visual and remote current monitoring tracks the current for each 8-outlet bank separately and provides the total power consumption for all 16 outlets combined. 2U installation in 19-inch rackmount applications is supported. The included cord retention brackets keep vital network equipment plugged in and continuously powered.
The Tripp Lite Monitored Rack Power Distribution Unit supports real-time remote monitoring via secure web, SNMP or Telnet interface and custom notification of user-specified remote conditions via email and SNMP trap. PDU power consumption in amps is displayed on the front panel digital display and can be monitored remotely to warn of potential overloads before critical IT mains breakers become overloaded.
Advanced configurations support in-rack environmental monitoring with the optional ENVIROSENSE temperature/humidity probe and rack access notification for up to (4) SRSWITCH or user supplied contact-closure sensors (available separately). Real-time monitoring of all reported functions, user-specified alarms and notification thresholds is supported. The unit is fully compatible with PowerAlert Network Management System Software, available via FREE download from www.tripplite.com.
The Tripp Lite Monitored Rack Power Distribution Unit supports real-time remote monitoring via secure web, SNMP or Telnet interface and custom notification of user-specified remote conditions via email and SNMP trap. PDU power consumption in amps is displayed on the front panel digital display and can be monitored remotely to warn of potential overloads before critical IT mains breakers become overloaded.
Advanced configurations support in-rack environmental monitoring with the optional ENVIROSENSE temperature/humidity probe and rack access notification for up to (4) SRSWITCH or user supplied contact-closure sensors (available separately). Real-time monitoring of all reported functions, user-specified alarms and notification thresholds is supported. The unit is fully compatible with PowerAlert Network Management System Software, available via FREE download from www.tripplite.com.
-
13.70 lbs
-
Features
32A 7.4kW single phase 230V Monitored Power Distribution Unit / PDU
Attached Blue IEC-309 32A (2P+E) input plug with 3.65m line cord
2U horizontal rackmount format
(16) outlets (12 C13, 4 C19)
Lighted display with select button reports output power consumption in amps in 3 segments (bank 1, bank 2 and total)
?Built-in SNMP/ethernet interface reports voltage, frequency and PDU loading via network or secure web browser interface with options for user specified alarm and notification thresholds
Supports in-rack environmental reporting with optional ENVIROSENSE temperature / humidity sensor and rack access notification with up to 4 optional SRSWITCH door sensors
DHCP/Manual configuration support
10/100 Mbps auto-sensing allows optimal communication with 10/100 Base-T networks
Real-time clock backup maintains the time of day and date even if the PDU is unpowered
Tiered access privileges allow an administrator and a guest to login via web browser for monitoring
Alert notifications via email or SNMP traps offer immediate event notification
Firmware upgrade ability supports future product enhancements.
Supports HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2, SNMPv3, Telnet, SSH, FTP, DHCP, BOOTP, NTP protocols
Fully compatible with FREE PowerAlert Network Management System / NMS Software
Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
Mounting ears are reversible for front or rear facing rackmount installation
Included cord retention brackets keep vital network equipment plugged in and continuously powered
Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases
Typical Applications
Ideal for network configurations requiring a monitored PDU supporting remote web/network current monitoring -
# Ports: 16Connector: Power IEC 320 (M)Connector: Power IEC 320 EN 60320 C13 (F)Connector: Power IEC 320 EN 60320 C19 (F)Connector: Power IEC 60309 32A
-
PDU, rack mounting hardware, cable retention brackets, configuration cable, documentation
-
Color: BlackForm Factor: 2U RackmountForm Factor: Rack-mountableWarranty Period: 2 yearsWeight Taxonomy: 13.67lbs
-
3.5"h x 17.5"w x 12.5"d
-
Outlet quantity/type: (12) C13, (4) C19
Input connection type: IEC-309 32A BLUE (2P+E)
Input cord length: 12ft (3.65m) -
Power Provided: 7.4kWVoltage Provided: 230VVoltage Provided: AC 230V
-
OUTPUT
Output capacity: 7.4kW (230V) / 32A total capacity / 16A max per breakered outlet bank; 16A max per C19 outlet; 10A max per C13 outlet
Frequency compatibility: 50/60Hz
Output nominal voltage: 230V
Overload protection: Outlets are arranged in two banks of 8 (6 C13, 2 C19 per bank); Each bank is protected by a separate 20A circuit breaker
INPUT
PDU Input Voltage: 230V
Recommended Electrical Service: 230V
Maximum Input Current: 32A
Voltage compatibility: 230VAC
Phase: Single-Phase -
Remote Management Protocol: HTTPRemote Management Protocol: HTTPSRemote Management Protocol: SNMP 1Remote Management Protocol: SNMP 2Remote Management Protocol: Telnet
-
This product is subject to our return policy. Please see our complete return policy for details.
-
16.9 lbs
-
Compliant Standards: RoHSCompliant Standards: UL 60950-1
-
