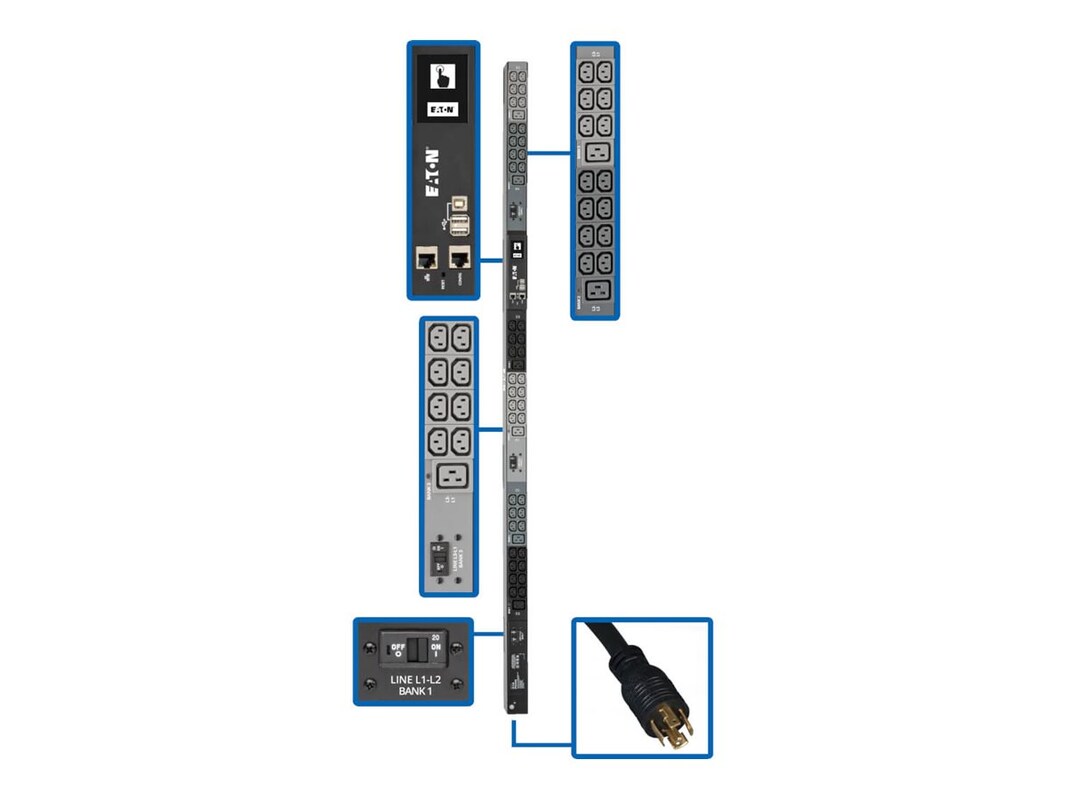

Tripp Lite Monitored 0U PDU 3PH 10kW 200 208 240V 30A, L21-30P Input, (42) C13 (6) C19 Outlets, LX, TAA

15.69 lbs

Distributes and Monitors Network-Grade AC Power:
10kW 200/208/240V monitored PDU with 3-phase input
NEMA L21-30P plug with 10 ft. cord connects to compatible AC power source
Firmware upgrades support future product enhancements

48 Outlets Distribute AC Power:
42 C13 and 6 C19 split into 3 separately breakered load banks
Plug-lock insert sleeves prevent cables from becoming accidentally disconnected

Color Touchscreen LCD:
Reports network data, including IP address, input current level per phase and output current per load bank with ±1% billing-grade accuracy
Generates unique QR code for read-only access to PowerAlert® Device Manager via mobile device
Full access available by logging into PowerAlert Device Manager via browser as user with read/write credentials

Built-In HTML5-Based LX Platform Interface:
Allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH
Supports 10/100 Mbps auto-sensing for communication with an Ethernet network
Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities
No Java required

Broad Communications Compatibility:
Supports IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP
Supports automatic and manual assignment of IP address

Easy 0U Installation in EIA-Standard 19 in. Racks:
Mounts vertically using included toolless buttons or rack-mounting brackets
Included PDUMVROTATEBRKT allows mounting with rear-facing outlets

TAA-Compliant:
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

PDU with built-in LX platform interface, configuration cable, (48) plug-lock insert sleeves, rack mounting hardware, PDUMVROTATEBRKT mounting accessory, documentation

70"H x 2.17"W x 2.86"D

PDU Type: Monitored

Output Capacity Details: 10kW (240V), 9.6kW (230V), 9.1kW (220V), 8.6kW (208V), 8.3kW (200V) total capacity; 13.9A max per breakered outlet bank; 12A max per C13 outlet
Frequency Compatibility 50 / 60 Hz
Output Receptacles: (42) C13; (6) C19
Output Nominal Voltage: 200; 208; 240
Overload Protection: 3 20A circuit breakers, 1 per outlet bank

PDU Input Voltage: 200; 208; 240
Recommended Electrical Service: 30A 208/240V with L21-30R outlet
Maximum Input Amps: 24
PDU Plug Type: NEMA L21-30P
Input Cord Length (ft.): 10
Input Phase: 3-Phase

Reported Load Segments: Reports input current per phase (L1, L2, L3) and output current for each breakered load bank (13.9A balanced max per banks B1-B3); Outlets are color-coded and labelled for phase and load bank identification; L1-L2 feeds black outlets (B1); L2-L3 feeds dark-gray outlets (B2); L3-L1 feeds light-gray outlets (B3)

Front Panel LCD Display: Touchscreen LCD reports NETWORK DATA (IP address, Subnet Mask, Gateway, MAC Address, Device Name, Model, Serial Number), INPUT PHASE DATA (Amperage, Wattage, Voltage per phase, plus Unbalance percentage), LOAD BANK DATA (Amperage, Wattage, Voltage per load bank, plus total PDU output in watts), CONFIGURATION DATA (Listing of current configuration settings), ENVIRONMENTAL DATA (Reports data and status of E2 sensor modules; Sensor options are available for temperature and humidity, plus input and output dry contacts), MOBILE ACCESS (Generates a unique QR code to view reported PDU details on a mobile device)

Material of Construction: Metal
Form Factors Supported: Vertical rackmount installation supported with included mounting brackets; supports tooless mounting in button-mount compatible racks
PDU Form Factor: 0U; Vertical

Operating Temperature Range: 32 to 122F (0C to 50C)
Storage Temperature Range: 5 to 140F (-15C to 60C)
Relative Humidity: 5 to 95% non-condensing
Operating Elevation (ft.): 0-10,000
Operating Elevation (m): 0-3000 m
