Tripp Lite HDMI over Cat6 Extender Kit for Medical Environments, 4K @ 60 Hz, HDR, 4:4:4, PoC, 230 ft., TAA

Print page
Item#: 41331455 // MFG Part#: B127M-101-H // By: Tripp Lite

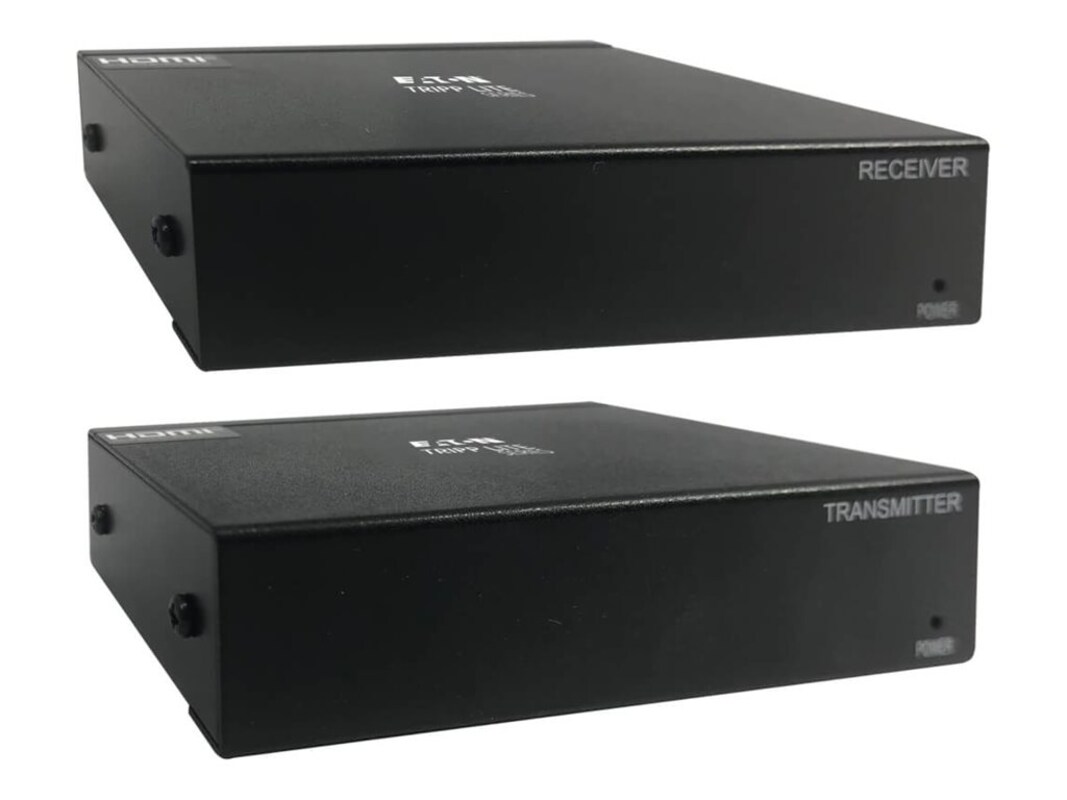

Tripp Lite B127M-101-H Main Image from Front
Rollover to Zoom
NOTE: Images may not be exact; please check specifications.
  • Temporarily Out-of-Stock
  • Call for next available delivery
Ordering Information
$232.11
Qty:
This complete transmitter and receiver system is recommended for transmitting 4K video for medical applications in hospitals, clinics, physicians’ offices and other medical environments where the source and display are farther apart than conventional A/V cables allow. The extender kit conforms to strict EMI/RFI and ESD requirements.

The B127M-101-H extends 4K signals from an HDMI source device to an HDMI display up to 230 feet (70 meters) away via user-supplied Cat6 cabling.

The HDCP 2.2-compliant B127M-101-H supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz, as specified by HDMI 2.0, with 36-bit Deep Color, 4:4:4 chroma subsampling and full, rich uncompressed DTS-HD, Dolby TrueHD and 7.1-channel digital audio. High Dynamic Range (HDR) provides a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on a 4K display. Built-in equalization allows you to fine-tune the image quality at the remote display.

The transmitter and receiver both meet CISPR 11- Group 1 Class A and IEC 61000-4-2 (ESD) Test level 4 standards for environments with strict EMI/RFI and ESD limitations. They are approved for medical applications where reducing electrical interference is vital to the proper functioning of equipment.

To monitor the video signal being extended to the receiver, connect a 4K display to the transmitter’s local HDMI port with a user-supplied HDMI cable. This port does not support multi-resolution capabilities, so the connected monitor must also support 4K/60 Hz to function properly.

Power over Cable (PoC) technology powers the receiver over Cat6 cable. LEDs on both units will light up to indicate the system is receiving power and a signal is being transmitted. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place the receiver where needed without worrying about finding a nearby AC outlet.

The included transmitter and receiver work right out of the box with no software required. Mounting hardware is included for installing both units on a wall, pole or 19-inch rack. Connect the transmitter to the source with a user-supplied HDMI cable (such as Tripp Lite’s P568- or P569-Series). Then, connect the two units with user-supplied 26AWG STP Cat6/6a patch cable (such as Tripp Lite N262-Series). Finally, connect the receiver to the display with another user-supplied HDMI cable.

The B127M-101-H is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
