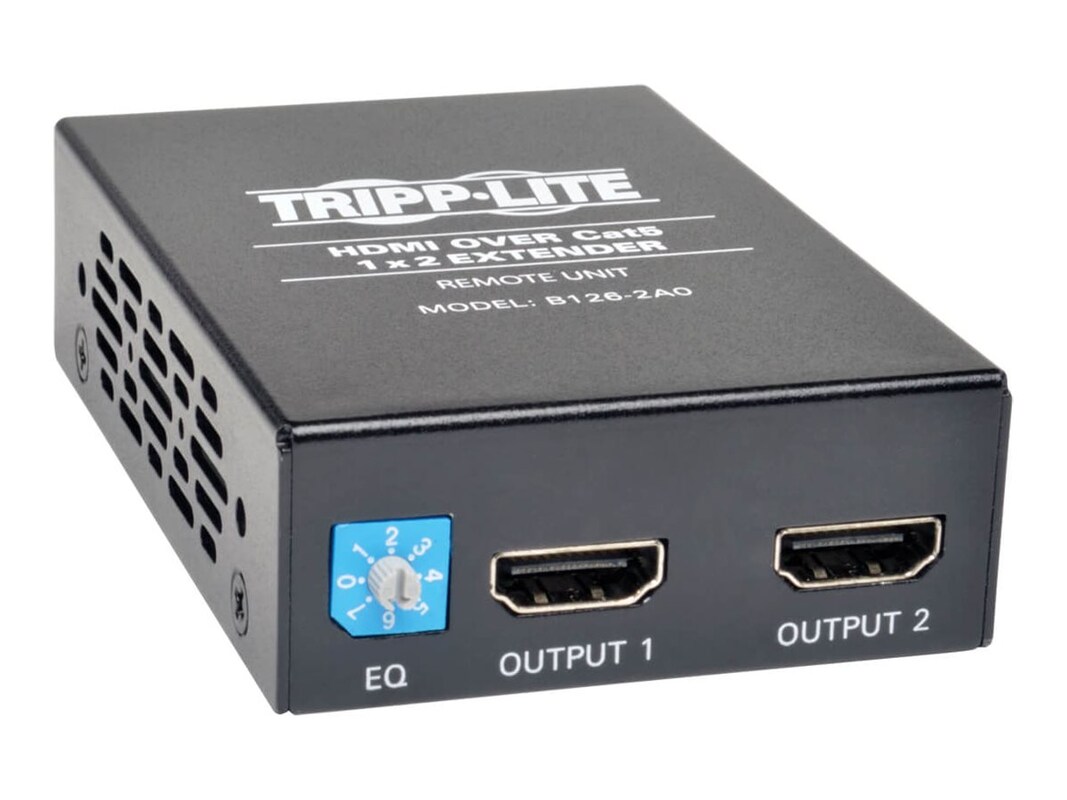

The B126-2A0 is a receiver unit that is used with the B126-002 and B126-004 transmitter units. It extends a 1080p (60Hz) signal to two monitors up to 150 ft. away using Cat5e/6 cable, and then splitting the signal out to 2 x HDMI outputs. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite's N202-Series) It features a built-in Equalization control for adjustment of the video image. Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM).
Installation is simple. Connect the transmitter unit to an HDMI source using a Tripp Lite P568-Series HDMI cable (not included). Connect the receiver unit to a display using a Tripp Lite P568-Series HDMI cable (not included). Finally, connect the receiver to the RJ45 port on the transmitter using a single Cat5e/6 cable.
Installation is simple. Connect the transmitter unit to an HDMI source using a Tripp Lite P568-Series HDMI cable (not included). Connect the receiver unit to a display using a Tripp Lite P568-Series HDMI cable (not included). Finally, connect the receiver to the RJ45 port on the transmitter using a single Cat5e/6 cable.
-
HDMI Receiver, splitting to 2 x HDMI outputs.
For use with B126-002 and B126-004 transmitter units.
Supports computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p (60Hz).
24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N202-Series, is required to achieve maximum distance and resolution.
Use Tripp Lite P568-Series HDMI cables to connect to HDMI source and monitor.
HDCP and 3D compatible.
Compatible with both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM).
Supports 24-bit True Color (8-bits per channel).
Can further expand the range and number of monitors by adding repeaters.
Connect up to three repeaters, with a receiver unit located at the end of the installation, for a total of 5 displays.
A 1080p (60Hz) signal can be extended up to 125 ft. for each repeater in the installation. In a full 4 level chain (3 repeaters, 1 receiver), a 1080p (60Hz) signal can be extended up to 500 ft.
A 1080i (60Hz) signal can be extended up to 175 ft. for each repeater in the installation. In a full 4 level chain (3 repeaters, 1 receiver), a 1080i (60Hz) signal can be extended up to 700 ft.
A 3D signal can be extended up to 100 ft. for each repeater in the installation. In a full 4 level chain (3 repeaters, 1 receiver), a 3D signal can be extended up to 400 ft.
Features a built-in Equalization control for adjustment of the video image.
Compatible with all operating systems.
Plug and play; No drivers required.
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. -
Connectivity Technology: Wired
-
remote unit, external power supply, mounting hardware, screwdriver, documentation
-
Color: BlackForm Factor: ExternalProduct Type: AV ExtenderWarranty Period: 1-year warranty
-
Networking Type: Video/audio extender
-
1"h x 2.5"w x 3.6"d
-
(2) HDMI out
(1) RJ-45 in
(1) Power in -
Supply: 100-240VAC, 50/60Hz
-
Networking Protocol: 3D supportNetworking Protocol: 7.1 channel audio supportNetworking Protocol: HDCP compliant
-
This product is subject to our return policy. Please see our complete return policy for details.
-
1 lbs
-
Compliant Standards: RoHSCompliant Standards: TAACompliant Standards: Yes
-
43222619
-
1 Year
-
1 Year
