Temporarily Out-of-Stock
- Call for next available delivery
Ordering Information
$382.60
Quick View
Getting Details

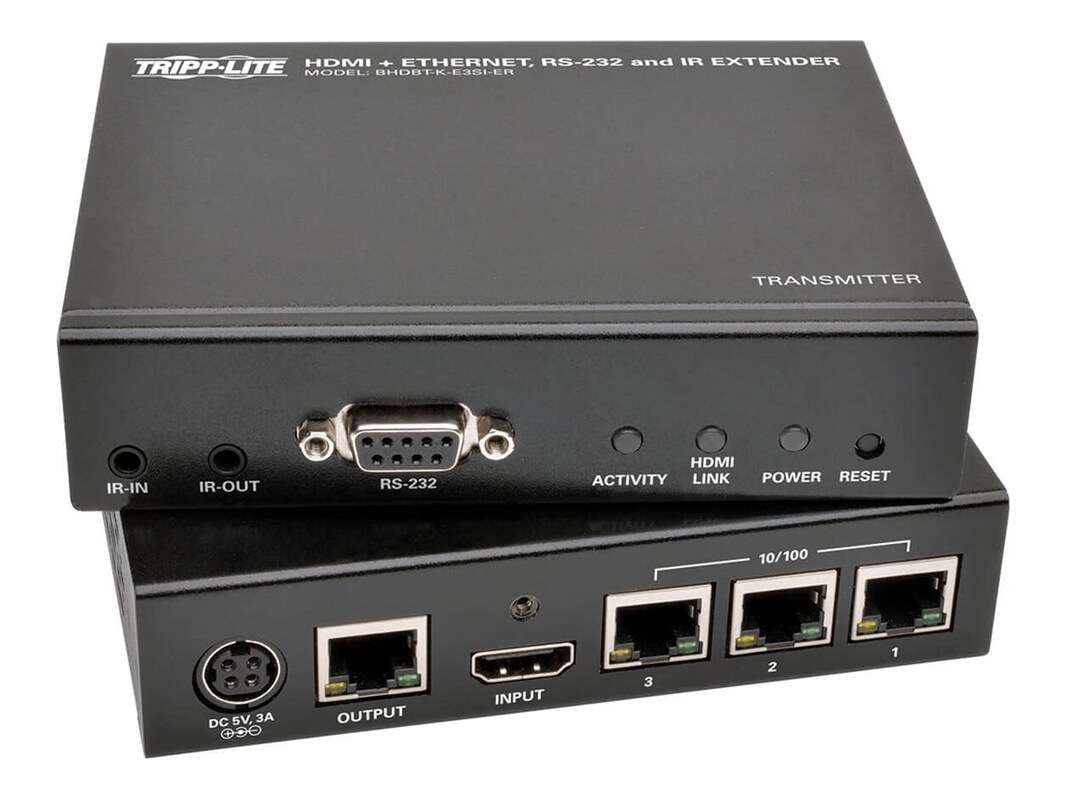

The BHDBT-K-E3SI-ER HDBaseT HDMI over Cat5e/6/6a Extender Kit extends uncompressed HDMI audio and video, RS-232 serial and IR remote control signals up to 500 feet over a single Cat5e/6/6a cable, including a 1920 x 1080(1080p) signal @ 60 Hz.
In addition to HDMI, RS-232 and IR signals, this extender kit features three built-in 10/100 Ethernet ports on both the transmitter and receiver units. This allows connected devices, such as a Blu-ray™ player, cable/satellite box, and HDTV, to communicate with each other and access online content via LAN.
You can also control RS-232 serial devices, such as touchscreen displays or scanners, at baud rates up to 115 Kbps. The two-way IR remote control feature(@ 39 KHz) lets you control your Blu-ray player using its remote when at the remote monitor or control your remote monitor using its remote when at the Blu-ray player. Locking HDMI ports(ideal for use with Tripp Lite’s P569-006-LOCK high-speed HDMI cables with locking connectors) on both the transmitter and receiver prevent cables from coming loose or undone, ensuring an intact signal.
The plug-and-play BHDBT-K-E3SI-ER supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio, as well as 3D video, EDID and HDCP.
In addition to HDMI, RS-232 and IR signals, this extender kit features three built-in 10/100 Ethernet ports on both the transmitter and receiver units. This allows connected devices, such as a Blu-ray™ player, cable/satellite box, and HDTV, to communicate with each other and access online content via LAN.
You can also control RS-232 serial devices, such as touchscreen displays or scanners, at baud rates up to 115 Kbps. The two-way IR remote control feature(@ 39 KHz) lets you control your Blu-ray player using its remote when at the remote monitor or control your remote monitor using its remote when at the Blu-ray player. Locking HDMI ports(ideal for use with Tripp Lite’s P569-006-LOCK high-speed HDMI cables with locking connectors) on both the transmitter and receiver prevent cables from coming loose or undone, ensuring an intact signal.
The plug-and-play BHDBT-K-E3SI-ER supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio, as well as 3D video, EDID and HDCP.
-
Ideal for digital signs, classrooms and trade show booths.
Built-in 10/100 Ethernet ports on transmitter and receiver.
Extends a 1920 x 1080 (1080p) signal up to 500 ft.
Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD.
Controls RS-232 serial devices at baud rates up to 115 Kbps. -
Connectivity Technology: Wired
-
transmitter unit, receiver unit, IR-in cable, IR-out cable, (2) external power supply, mounting hardware, documentation
-
Color: BlackForm Factor: ExternalProduct Type: AV ExtenderWarranty Period: 1-year warranty
-
Networking Type: Video/audio/infrared/serial/network extender
-
(2) HDMI (F)
(8) RJ-45 (F)
(4) 3.5mm audio (F)
(1) DB9 (F)
(1) DB9 (M) -
# Power Supplies Installed: 2
-
Networking Protocol: 3D supportNetworking Protocol: 4K resolution supportNetworking Protocol: 7.1 channel audio supportNetworking Protocol: Dolby TrueHD supportNetworking Protocol: DTS-HD Master Audio supportNetworking Protocol: HDBaseT technologyNetworking Protocol: HDCP compliant
-
This product is subject to our return policy. Please see our complete return policy for details.
-
4.9 lbs
-
Compliant Standards: RoHSCompliant Standards: TAACompliant Standards: Yes
-
43222619
-
1 Year
-
1 Year
