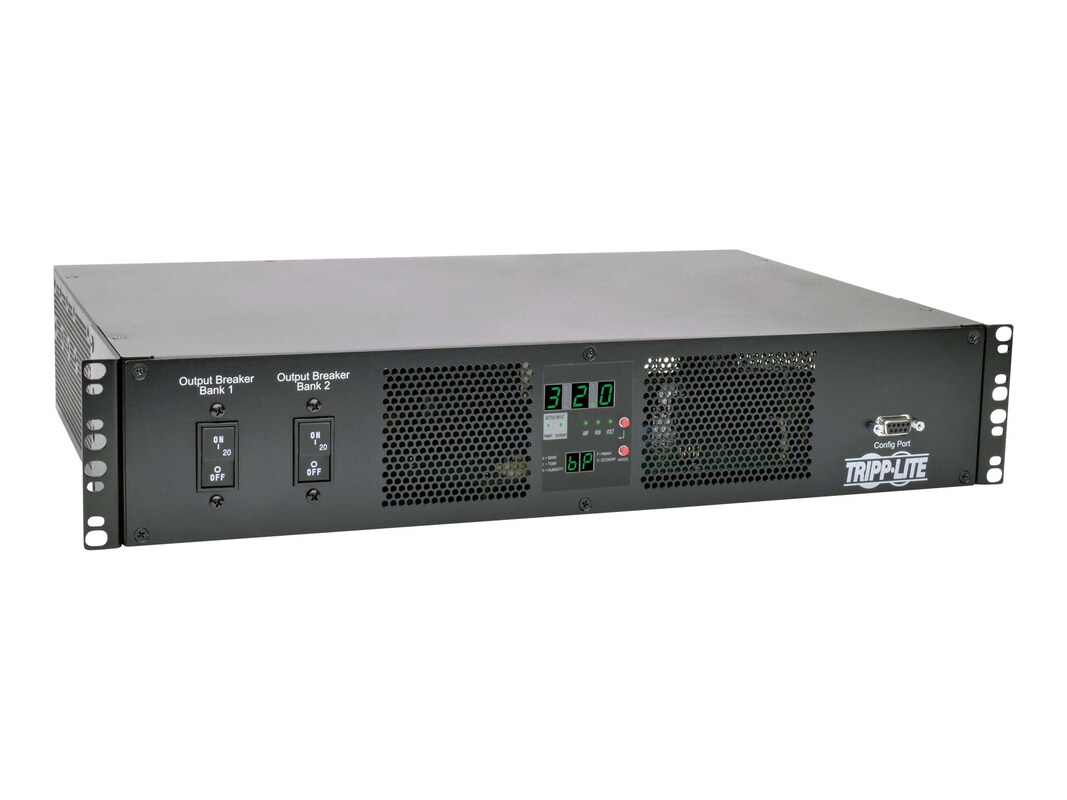

The PDUMH32HVAT 7.4kW Single-Phase 230V ATS/Switched PDU provides remote power monitoring and enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms, it mounts in 2U of space in EIA-standard racks and features 18 outlets (16 C13 and two C19) in two load banks, each bank protected by a 20A circuit breaker.
Dual 3-meter input cords with IEC309 32A Blue (2P+E) plugs connect to separate primary and secondary single-phase 230V power sources. The PDU constantly evaluates the power quality of both input sources. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 1-5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption.
Multifunction digital display with LED indicators reports output current, voltage, power factor and kW loading information.
Dual 3-meter input cords with IEC309 32A Blue (2P+E) plugs connect to separate primary and secondary single-phase 230V power sources. The PDU constantly evaluates the power quality of both input sources. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 1-5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption.
Multifunction digital display with LED indicators reports output current, voltage, power factor and kW loading information.
-
13.70 lbs
-
Features
Provides remote power monitoring and enables redundant power for network devices with non-redundant power supply configurations
Dual 3m input cords with IEC309 32A Blue (2P+E) plugs connect to separate primary and secondary single-phase power sources
Dynamic solid-state (TRIAC) automatic transfer switching
Switches to secondary power source if primary source fails or becomes unstable
1-5ms transfer time ensures uninterrupted operation of connected equipment
Built-in processor monitors both sources and prevents switching if secondary source is unavailable or of lower quality than primary source
Front-panel digital display with LED indicators reports output current, voltage, power factor and kW loading information
Protect each of (2) single-phase output banks
Front-panel LED indicates when breaker has tripped
Secures equipment power cords to reduce cable clutter and increase accessibility to connected components
Mounts Horizontally in 2U of Rack Space
Compatible with EIA-standard 19 in. 4-post racks and rack enclosures
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases -
# Ports: 18Connector: Power IEC 309 (M)Connector: Power IEC 320 EN 60320 C13 (F)Connector: Power IEC 320 EN 60320 C19 (F)Connector: Power IEC 60309 32A
-
PDU, rack-mounting brackets, cord retention brackets, cable ties, documentation
-
Attributes: MeteredColor: BlackForm Factor: 2U RackmountForm Factor: Rack-mountableWarranty Period: 2 yearsWeight Taxonomy: 13.69lbs
-
3.5"h x 17.5"w x 12.5"d
-
Output Receptacles: (16) C13; (2) C19
Input Connection Type: Two labelled IEC309 32A Blue cables support Primary and Secondary input connections
PDU Plug Type: (2) IEC-309 32A BLUE (2P+E)
Input Cord Length: 10ft
-
Power Provided: 7.4kWPower Provided: 7.7kWVoltage Provided: 240VVoltage Provided: AC 200/208/220/230/240V
-
OUTPUT
Output Capacity Details: 7.7kW (240V), 7.4kW (230V), 7.0kW (220V), 6.7kW (208V), 6.4kW (200V); 32A maximum
Frequency Compatibility: 50/60Hz
Output Nominal Voltage: 200, 208, 220, 230, 240V nominal, single phase
Overload Protection: Includes two 20A output circuit breakers; Breaker 1 controls the upper row of 9 outlets (8 C13, 1 C19); Breaker 2 controls the lower row of outlets (8 C13, 1 C19)
INPUT
PDU Input Voltage: 200V; 208V; 220V; 230V; 240V
Recommended Electrical Service: 32A, 230V
Maximum Input Current: 32A
Input Phase: Single-Phase -
This product is subject to our return policy. Please see our complete return policy for details.
-
20.3 lbs
-
Compliant Standards: CECompliant Standards: IEC 60950-1Compliant Standards: NOMCompliant Standards: RoHSCompliant Standards: TAACompliant Standards: Yes
-
