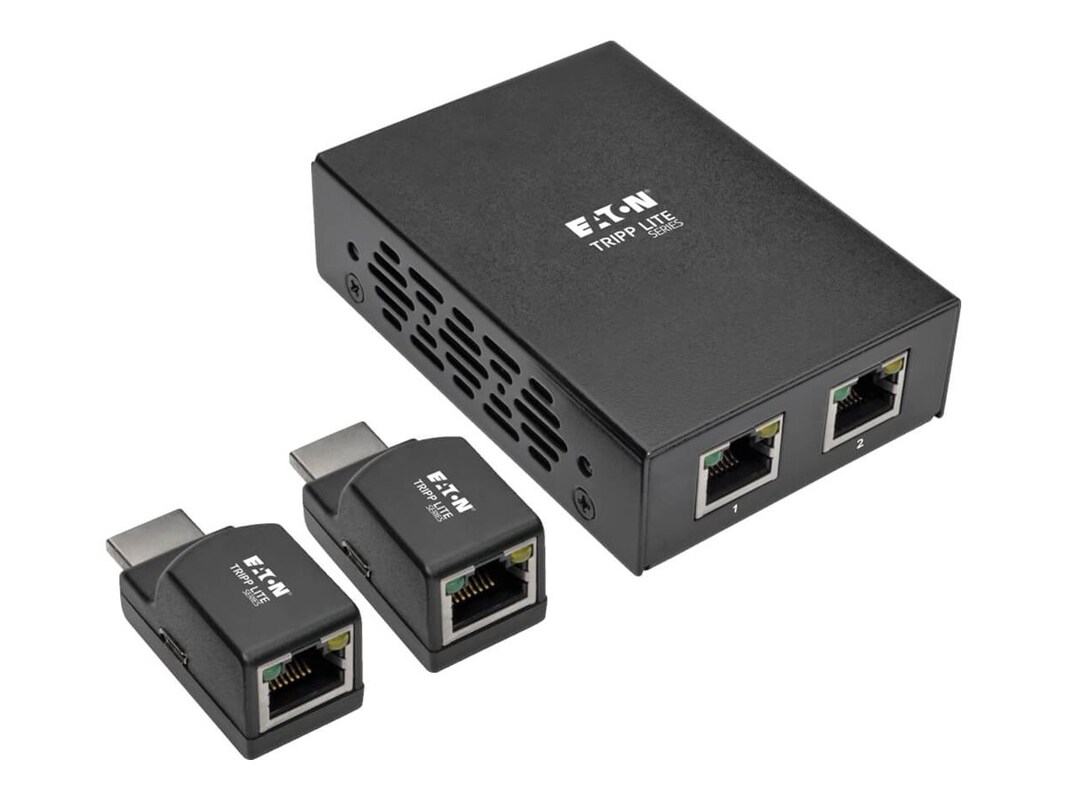

Tripp Lite 2-Port HDMI over Cat5 Cat6 Extender Kit, Power over Cable, Box-Style Transmitter, 2 Mini Receivers
-
Limited Quantity Available
- Call for next available delivery
Add to Cart
Messages
Loading
-
:
Quick View
Getting Details
The B126-2P2M-POC 2-Port HDMI over Cat5/Cat6 Extender Kit includes a two-port transmitter and two low-profile receivers that work in tandem to extend an HDMI audio/video signal to two projectors, monitors or televisions. The kit is recommended for digital signs, trade shows, classrooms, churches, offices, retail settings and other applications where the source is located farther than conventional cables allow.
HDMI cable (see Tripp Lite’s P568-Series) connects the audio/video source, such as a Blu-ray™ player, to the transmitter’s HDMI port. Cat5e/6/6a cable connects the transmitter to the receivers’ RJ45 ports (for best results, use 24 AWG solid-wire Cat6 cable, such as Tripp Lite’s N202-Series). The receivers plug directly into the displays’ HDMI input ports. Built-in PoC technology powers the receivers over Cat5e/6/6a cable, so no external power supply on the display side is needed.
The B126-2P2M-POC can extend a high-definition 1080p (at 60 Hz) signal up to 50 feet and a 1080i signal up to 100 feet. In addition to crystal-clear video, the B126-2P2M-POC delivers full, rich audio up to 7.1-channel surround sound (multi-channel or PCM) and supports 3D and HDCP standards. Easy to set up with no software or drivers to install. Transmitter mounts to a wall, rack or pole using the included hardware. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
HDMI cable (see Tripp Lite’s P568-Series) connects the audio/video source, such as a Blu-ray™ player, to the transmitter’s HDMI port. Cat5e/6/6a cable connects the transmitter to the receivers’ RJ45 ports (for best results, use 24 AWG solid-wire Cat6 cable, such as Tripp Lite’s N202-Series). The receivers plug directly into the displays’ HDMI input ports. Built-in PoC technology powers the receivers over Cat5e/6/6a cable, so no external power supply on the display side is needed.
The B126-2P2M-POC can extend a high-definition 1080p (at 60 Hz) signal up to 50 feet and a 1080i signal up to 100 feet. In addition to crystal-clear video, the B126-2P2M-POC delivers full, rich audio up to 7.1-channel surround sound (multi-channel or PCM) and supports 3D and HDCP standards. Easy to set up with no software or drivers to install. Transmitter mounts to a wall, rack or pole using the included hardware. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
-
2-port transmitter extends HDMI A/V signal to 2 low-profile receivers
Recommended for digital signs, trade shows, classrooms, churches, offices, retail settings and other HDMI A/V applications
Extends a 1080p (@ 60 Hz) signal up to 50 ft. from source
Extends a 1080i signal up to 100 ft. from source
Supports 7.1-channel surround sound (multi-channel or PCM) audio
HDCP and 3D compliant
Plug-and-play engineering—no software or drivers to download and install
Transmitter connects to source using HDMI cable, such as Tripp Lite’s P568-Series
Transmitter and receivers connect with Cat5e/6/6a cable (for best results, use Tripp Lite’s N202-Series)
LEDs indicate when units are receiving power or an HDMI signal
Mounting hardware included for installing transmitter on a wall, rack or pole
Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
-
Connectivity Technology: Wired
-
transmitter, (2) receiver units, (2) USB Micro-B cables, power supply, mounting hardware, documentation
-
Color: BlackForm Factor: ExternalManufacturer Product Line: Eaton Tripp Lite SeriesModel: 2-Port HDMI over Cat5/Cat6 Extender Kit, Power over Cable, Box-Style Transmitter, 2 Mini Receivers, 1080p @ 60 Hz, TAAProduct Type: AV ExtenderWarranty Period: 1-year warranty
-
Networking Type: Video/audio extender
-
Transmitter:
(1) HDMI in (F)
(2) RJ-45 (F)
(1) Power in
Mini Receivers:
(2) HDMI (M)
(2) RJ-45 (F) -
Networking Protocol: 3D supportNetworking Protocol: 7.1 channel audio supportNetworking Protocol: HDCP compliantNetworking Protocol: Pole mountableNetworking Protocol: Power over cable (PoC)Networking Protocol: Wall mountable
-
This product is subject to our return policy. Please see our complete return policy for details.
-
1.21 lbs
-
Compliant Standards: FCCCompliant Standards: REACHCompliant Standards: RoHSCompliant Standards: Yes
-
Source device with HDMI output
Display device(s) with HDMI input -
