Ordering Information
$44.30
Quick View
Getting Details
- Ideal for high-bandwidth external hard drives and faster file transfers
- Add one external and one internal 10Gbps USB-A ports to your PC
- Upgrade your computer to the faster speed of USB 3.1 Gen 2
- Easy to Install and Works with USB 3.0 and 2.0 devices
- Compatible OS: Apple MacOS X 10.9 or later, Linux 3.5, Microsoft Windows 7
- 8
- 8.1
- 10, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows 7, Microsoft Windows 8, Microsoft Windows 8.1, Microsoft Windows 10
- USB 3.1 Protocol(s)
- FCC, RCM, RoHS, WEEE Compliant

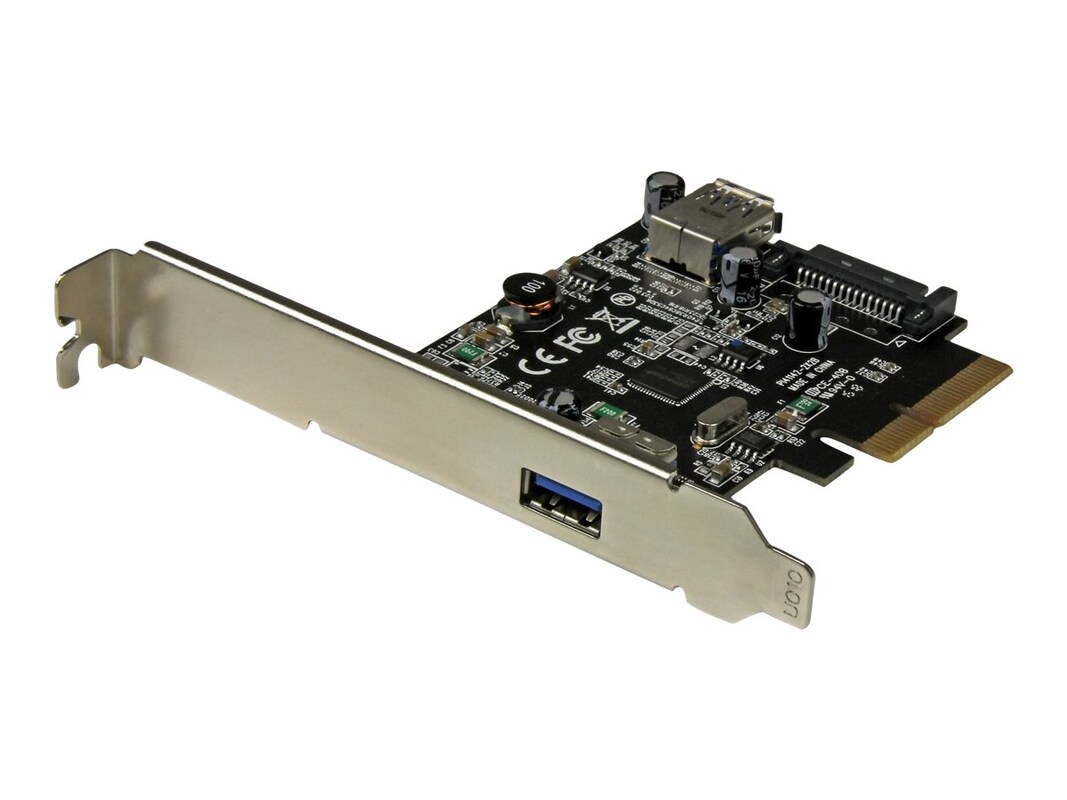

This USB 3.1 Gen 2 card prepares you for the next generation of USB performance, on the inside and outside of your computer. The 2-port card adds one internal Type-A connector as well as one external Type-A connector to your desktop computer, with a combined bandwidth of up to 10Gbps. For power-hungry devices, the card also has an internal SATA power connector, enabling you to use your computer’s power supply to add more power to the ports.
-
1.90 oz
-
Connectivity Technology: WiredConnector Type: USB 3.1Slot Type: PCI Express x4Slot Type: PCI-Express
-
Card, low profile bracket, documentation
-
Form Factor: Plug-in cardWarranty Period: 2 yearsWeight Taxonomy: 1.76oz
-
Hardware:
Bus Type: PCI Express
Card Type: Standard Profile (LP bracket included)
Chipset ID: ASMedia - ASM1142
Performance:
Maximum Data Transfer Rate: 10Gbps
Type and Rate: USB 3.1 Gen 2 - 10 Gbit/s
UASP Support: Yes -
Networking Type: USB adapter
-
Compatibility:
Windows 10 (32/64), 8 / 8.1 (32/64), 7 (32/64)
Windows Server 2012, 2008 R2
Mac OS 10.9 and later (tested up to 10.10)
Linux 3.5 -
The maximum throughput of this card is limited by the bus interface. PCI Express Gen 1.0 max throughput is 2.5Gbps. PCI Express Gen 2.0 max throughput is 5Gbps. PCI Express Gen 3.0 max throughput is 10Gbps.
The available bandwidth (10Gbps) is shared equally between the two ports. -
Data Transfer Rate: 10Gbps
-
4.7"h x 0.7"w x 3.5"d
-
(1) PCIe x4 Male
(2) USB 3.1 Type-A Female (1 External, 1 Internal)
(1) SATA Power (15-Pin) Plug -
Processor Manufacturer: ASMediaProcessor Model Number: ASM1142
-
Networking Protocol: USB 3.1
-
This product is subject to our return policy. Please see our complete return policy for details.
-
0.14 lbs
-
Compliant Standards: FCCCompliant Standards: RCMCompliant Standards: RoHSCompliant Standards: WEEE
-
OS Required: Apple MacOS X 10.9 or laterOS Required: Linux 3.5OS Required: Microsoft Windows 10OS Required: Microsoft Windows 7OS Required: Microsoft Windows 7 / 8 / 8.1 / 10OS Required: Microsoft Windows 8OS Required: Microsoft Windows 8.1OS Required: Microsoft Windows Server 2008 R2OS Required: Microsoft Windows Server 2012
-
43201500
