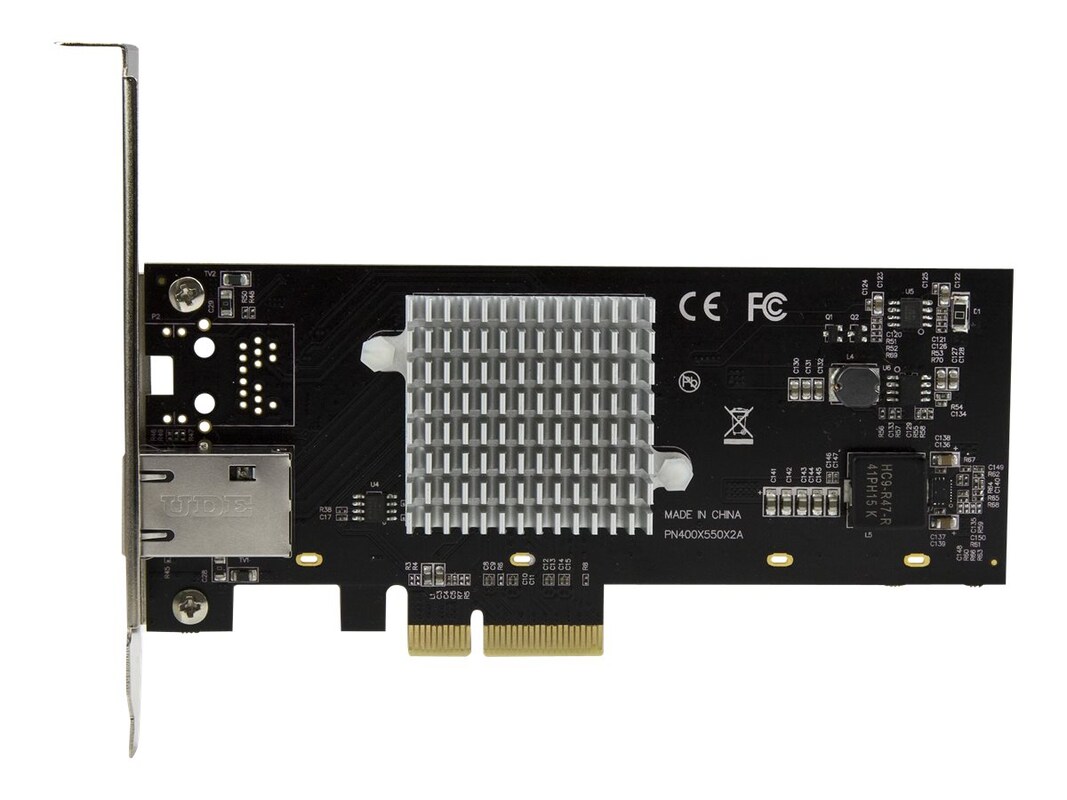

- Upgrade your server or workstation to 10G networking over copper
- Add a 10GBase-T/NBASE-T RJ45 port
- Multi-speed 10G/5G/2.5G/1G/100Mbps network adapter card
- 10GbE NIC with Intel X550-AT Chip
- 1-Port 10G PCI Express Ethernet Network Card
- PCI Express 2.0PCI-Express
- 10.0Gbps10Gbps Transfer Rate
- 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.3ab, IEEE 802.3u, 100 Gigabit Ethernet, IEEE 802.1Q, IEEE 802.3x Protocol(s)
- FCC, RoHS Compliant
This 10G network card utilizes the Intel X550-AT chipset, delivering the power, performance and enhanced capabilities you need for dependable network connections. Compliant with IEEE 802.3u/ab/an standards, the 1-port 10G card delivers a dependable way to upgrade or replace your existing network port, providing throughput capability of up to 10Gbps in each direction (20Gbps total). It connects easily through a single, four-lane (x4 or higher) PCI Express slot.
-
3.60 oz
-
Cabling Type: Ethernet 1000Base-TCabling Type: Ethernet 100Base-TXCabling Type: Ethernet 10GBase-TConnectivity Technology: WiredSlot Type: PCI Express 2.0Slot Type: PCI-Express
-
NIC, 3.9-inch cable, low-profile bracket, documentation
-
Color: BlackColor: SilverForm Factor: Plug-in cardWarranty Period: 2 yearsWeight Taxonomy: 3.59oz
-
Chipset: Intel X550AT
Auto MDIX: Yes
Full Duplex Support: Yes
Jumbo Frame Support: 9000 max
Maximum Data Transfer Rate: 10Gbps
LED Indicators: Link, activity, 10G/1G speed
Humidity: 20 to 80%
Operating Temperature: 41 to 122 F (5 to 50 C)
Storage Temperature: -4 to 148 F (-20 to 60 C) -
Networking Type: Network adapter
-
OS Compatibility:
- Windows 7, 8, 8.1, 10 (64-bit only)
- Windows Server 2008 R2, 2012, 2012 R2 (64-bit only)
- Linux 2.4.x/2.6x/3.x LTS Versions Only
- ESXi 5.1/5.5/6.0 -
Data Transfer Rate: 10Gbps
-
4.8"h x 2.7"w x 6.0"d
-
(1) PCIe x4 Male
(1) RJ-45 Female -
Processor Manufacturer: IntelProcessor Model Number: X550-AT
-
Networking Protocol: 10 Gigabit EthernetNetworking Protocol: 100 Gigabit EthernetNetworking Protocol: Fast EthernetNetworking Protocol: Gigabit EthernetNetworking Protocol: IEEE 802.1QNetworking Protocol: IEEE 802.3abNetworking Protocol: IEEE 802.3uNetworking Protocol: IEEE 802.3x
-
This product is subject to our return policy. Please see our complete return policy for details.
-
0.22 lbs
-
Compliant Standards: FCCCompliant Standards: RoHS
-
OS Required: Linux 2.4.x to 4.11.x LTS versions onlyOS Required: Microsoft Windows 10 64-bit EditionOS Required: Microsoft Windows 7 / 8 / 8.1 / 10 (64 bits)OS Required: Microsoft Windows 7 64-bit EditionOS Required: Microsoft Windows 8 64-bit EditionOS Required: Microsoft Windows 8.1 64-bit EditionOS Required: Microsoft Windows Server 2008 R2 x64 EditionOS Required: Microsoft Windows Server 2012 R2 x64 EditionOS Required: Microsoft Windows Server 2012 x64 EditionOS Required: Microsoft Windows Server 2016 (64-bit)OS Required: Microsoft Windows Server 2016 64-bit EditionOS Required: Microsoft Windows Server 2019 (64-bit)OS Required: Microsoft Windows Server 2019 64-bit EditionOS Required: VMware ESXi 5.1OS Required: VMware ESXi 5.5OS Required: VMware ESXi 6.0
-
