- 2592 x 1520 Resolution
- 3.3mm 5.7mm Lens
- Horizontal Field of View (degrees):, 100-53 Vertical Field of View (degrees): 54-30
- AS/NZS CISPR 32 Class A, CAN/CSA-C22.2 No. 62368-1, EN 50130-4, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, FCC 47 CFR Part 15 B Class A, ICES-3(A)/NMB-3(A), IEC/EN 62471, IEC/EN 63000, IEEE 802.1x, IEEE 802.3at, IK10, IP66, KS C 9832 Class A, KS C 9835, NDAA, NEMA Type 4X, UKCA, UL 62368-1, VCCI-CISPR 32 Class A Compliant

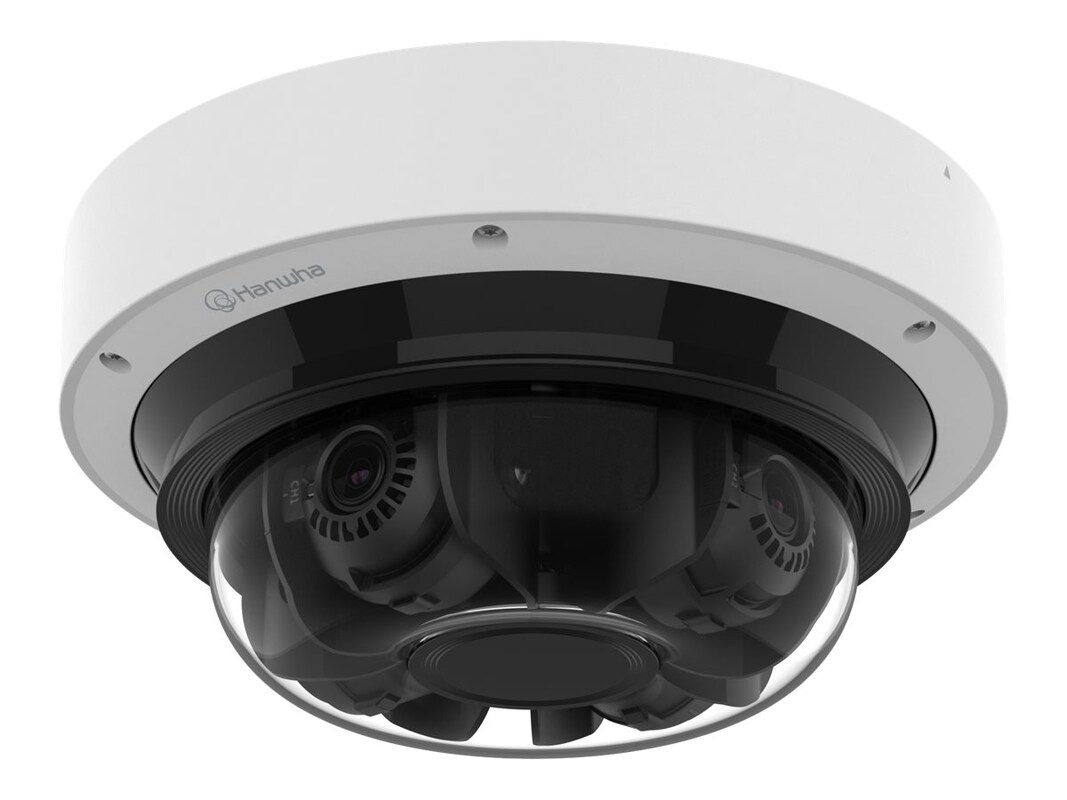

The PNM-C16083RVQ is a unique, high-resolution multi-sensor multi-directional camera capable of providing 4MP on each of its' 4 sensors. Each sensor can be manually adjusted for pan along the track, tilt & rotation, along with motorized zoom, & focus control. The powerful AI capabilities enhance the license-free video analytics to reduce false alarms and provide quick and accurate forensic search with a compatible VMS.
-
6.00 lbs
-
4MP x 4ch multi-directional camera, using one IP address
30fps@4MP (H.265, H.264)
3.3~5.7mm (FoV H: 109°~56°, V: 55°~31°) motorized varifocal lens
Integrated IR that rotates with camera head, IR viewable length WiseIR 15m (49.21ft)
H.265, H.264, MJPEG codec, Multi streaming
120dB WDR
USB port for easy installation
Analytics events based on AI engine: Object detection [Person/Vehicle (Car/Bus/Truck/Motorcycle/Bicycle)], IVA (Virtual line/Area, Enter/Exit, Loitering, direction, intrusion), Appear/Disappear
WiseNR ?(using AI engine), WiseStream?(Based on AI engine)
I/O Box compatibility for audio & alarm I/O
TPM with FIPS 140-2 level 2
micro SD card 512GB x2
Operating Temperature: -40°C~+55°C(-40°F~+131°F)
PoE+ powered
Hard-coated dome bubble
IP66, IK10, NEMA4X
Easy Gangbox mounting installation
-
Connector: 3.5mm audioConnector: microSD slotConnector: microUSBConnector: RJ-45Connector Type: AudioConnector Type: EthernetConnector Type: Micro USBConnector Type: microSD slot
-
camera, cable brushing, cap installer, documentation
-
Color: RAL 9003Color: WhiteWeight Taxonomy: 6.02lbs
-
Focal Length (max): 5.7mmFocal Length (min): 3.3mmHorizontal Field of View (degrees): 100-53Vertical Field of View (degrees): 54-30
-
RAM (installed): 8GB
-
8GB RAM, 1GB Flash
-
Optical Sensor Type: CMOS
-
4.5"h x 9.8"w x 9.8"d
-
(1) Micro USB Type B
(1) RJ-45
(2) 3.5mm audio (in, out)
(1) MicroSD slot
-
Consumption: PoE+: Max 25.5W, typical 22.0W
-
Networking Protocol: ARPNetworking Protocol: BonjourNetworking Protocol: DDNSNetworking Protocol: DHCPNetworking Protocol: DNSNetworking Protocol: FTPNetworking Protocol: HTTPNetworking Protocol: HTTPSNetworking Protocol: ICMPNetworking Protocol: IPv4Networking Protocol: IPv6Networking Protocol: LLDPNetworking Protocol: MQTTNetworking Protocol: NTPNetworking Protocol: QOSNetworking Protocol: RTCPNetworking Protocol: RTPNetworking Protocol: RTSPNetworking Protocol: SMTPNetworking Protocol: SNMP 1Networking Protocol: SNMP 2cNetworking Protocol: SNMP 3Networking Protocol: SRTPNetworking Protocol: SSLNetworking Protocol: TCP/IPNetworking Protocol: TLSNetworking Protocol: UDP/IPNetworking Protocol: UPnP
-
This product is subject to our return policy. Please see our complete return policy for details.
-
7.5 lbs
-
Compliant Standards: AS/NZS CISPR 32 Class ACompliant Standards: CAN/CSA-C22.2 No. 62368-1Compliant Standards: EN 50130-4Compliant Standards: EN 55032 Class ACompliant Standards: EN 61000-3-2Compliant Standards: EN 61000-3-3Compliant Standards: FCC 47 CFR Part 15 B Class ACompliant Standards: ICES-3(A)/NMB-3(A)Compliant Standards: IEC/EN 62471Compliant Standards: IEC/EN 63000Compliant Standards: IEEE 802.1xCompliant Standards: IEEE 802.3atCompliant Standards: IK10Compliant Standards: IP66Compliant Standards: KS C 9832 Class ACompliant Standards: KS C 9835Compliant Standards: NDAACompliant Standards: NEMA Type 4XCompliant Standards: UKCACompliant Standards: UL 62368-1Compliant Standards: VCCI-CISPR 32 Class A
-
46171610
-
Digital Video Capture Resolution: 2592 x 1520
