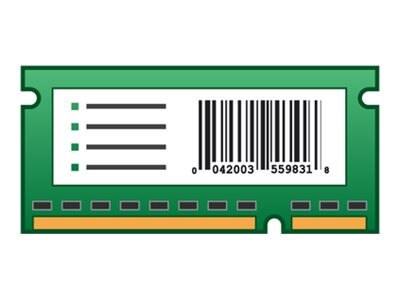

Lexmark Forms & Bar Code Card for MX91x

Forms are stored in the printer so there is no server to configure and maintain. There is also a low initial investment for a small number of printing devices.

Merge and quickly print forms using only the variable ASCII text data transmitted over the network. This card works in conjunction with the printer firmware to monitor incoming ASCII, SAP RDI or PCL data. In the event that incoming data contains a pattern consistent with conditions set in a resident electronic form, a form merge process is initiated.

This card works with Ethernet networks for IBM AS/400, S/390, IBM iSeries and UNIX (any host) using ASCII, SAP RDI (with Lexmark SAP R/3 Device Type for PCL) or PCL data. It also supports PCL and PostScript command access for more than 47 industry standard one-and two-dimensional bar codes.

Use Lexmark Forms Manager to upload and manage forms, to update firmware and to change the mode (Print, Data Capture, Disabled, Archive and Print, and Archive Only) of the card.

Compatible with models:
Lexmark MX911de
Lexmark MX910de
Lexmark MX912de
Lexmark MX910dxe

Forms and Bar Code Card

On all Lexmark RMA requests call 800-Lexmark for warranty service. Lexmark will either fix or replace the printer

0.5 lbs

Only one of these cards may be used at any time: Forms and Bar Code, Card for IPDS, Card for PRESCRIBE or Lexmark PrintCryption Card. These cards are installed in the same single connector.

44101700
