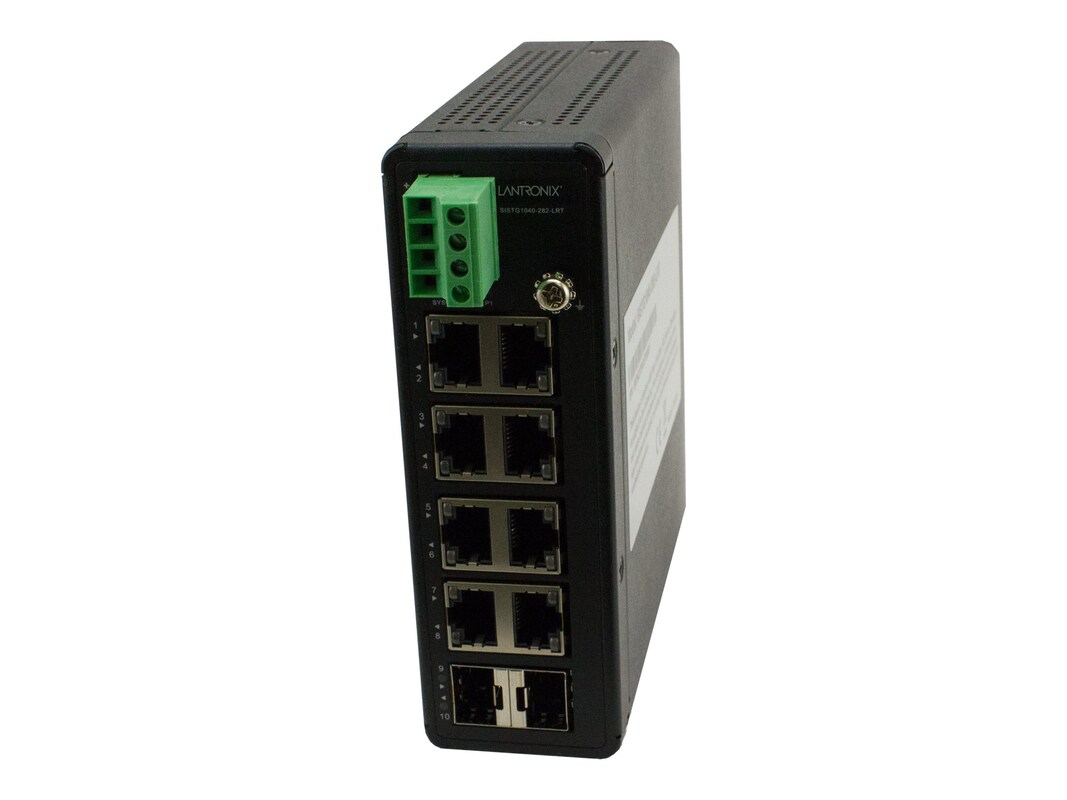

This switch is an unmanaged full Gigabit Ethernet hardened switch that has eight 10/100/1000Base-T ports with two 100/1000 dual speed SFP slots. The SISTG1040-282-LRT can be used at the edge of a hardened network to provide Gigabit Ethernet connections in hazardous locations. The two fiber uplink ports can also be used in a daisy chain for maximum network reliability. It has redundant input power connections to ensure safe reliable operation in temperatures between -40°C and +75°C. Transition Networks’ hardened switches are certified to operate reliably in harsh environments such as those found on factory floors, outdoor enclosures or other hazardous environments.
-
0.86 lbs
-
# Ports: 2# Ports: 8
-
Switch, power supply, documentation
-
Chassis Form Factor: DINChassis Form Factor: Rail-mountableChassis Form Factor: Wall-mountableColor Family: BlackForm Factor: DIN rail mountableForm Factor: Wall-mountableManufacturer Product Line: Transition Networks HardenedModel: SISTG1040-282-LRTWeight Taxonomy: 13.76oz
-
Switching Capacity: 20 Gbps
MAC Address: 4K MAC address table -
Networking Type: Switch
-
1.7"h x 5.3"w x 5.4"w
-
I/O:
(8) 10/100/1000Base-T RJ-45
(2) 100/1000Base-X SFP
(1) Power in -
# Power Supplies Installed: 1
-
Internal power supply
Input: 12 - 48 VDC; Redundant input; reverse power protection
Consumption: 5.8 W -
Networking Protocol: Gigabit EthernetNetworking Protocol: IEEE 802.1pNetworking Protocol: IEEE 802.3Networking Protocol: IEEE 802.3aeNetworking Protocol: IEEE 802.3azNetworking Protocol: IEEE 802.3uNetworking Protocol: IEEE 802.3xNetworking Protocol: IEEE 802.3z
-
This product is subject to our return policy. Please see our complete return policy for details.
-
1.01 lbs
-
Compliant Standards: EMICompliant Standards: EN 50121-4Compliant Standards: EN 50155Compliant Standards: EN 60950Compliant Standards: FCC Part 15Compliant Standards: IEC 61850-3Compliant Standards: IEEE 1613Compliant Standards: IP30Compliant Standards: NEMA TS-2Compliant Standards: UL Class 1 Division 2Compliant Standards: Yes
-
43222612
-
Warranty Period: 5 years
