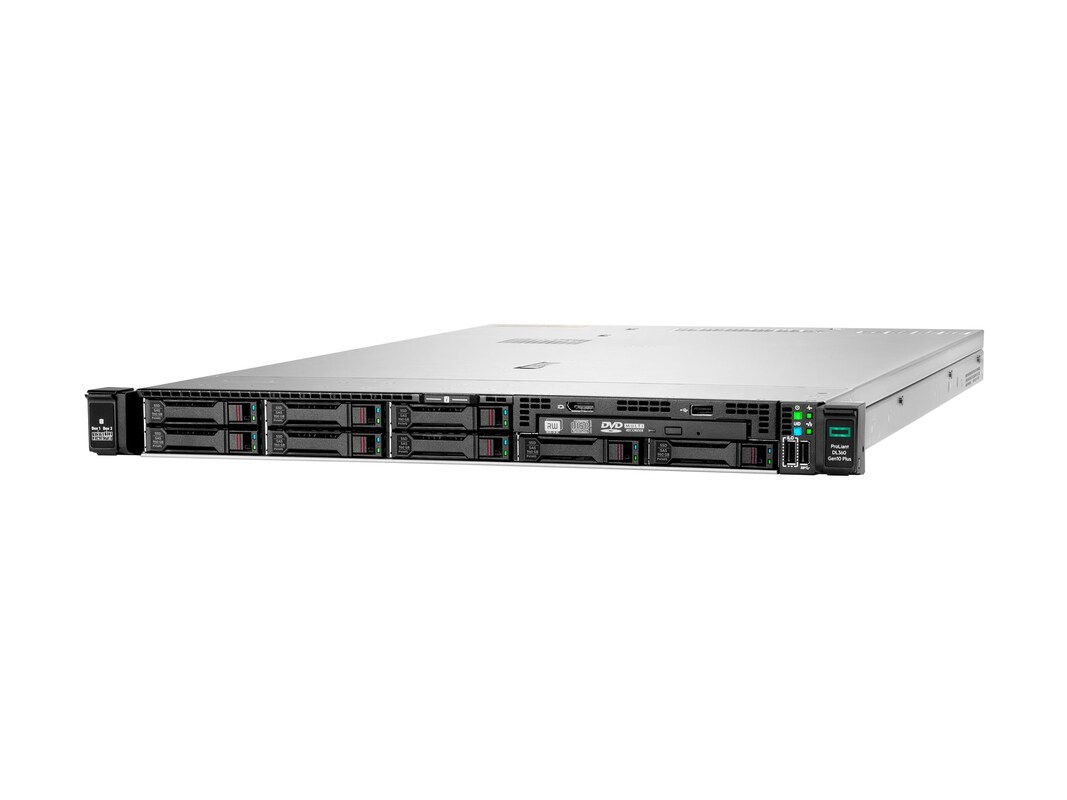

Adaptable for diverse workloads and environments, the compact 1U HPE ProLiant DL360 Gen10 Plus server delivers enhanced performance with the right balance of expandability and density. Designed for supreme versatility and resiliency, the HPE ProLiant DL360 Gen10 Plus server is ideal for IT infrastructure, either physical, virtual, or containerized.
Powered by a powerful processor, it offers PCIe and Intel Software Guard Extension (SGX) support. The HPE ProLiant DL360 Gen10 Plus server delivers premium compute, memory, I/O, and security capabilities for customers focused on performance at any cost.
-
28.80 lbs
-
Slot Type: Open Compute Project mezzanine (OCP) 3.0
-
Server, easy install rails, CPU standard heatsink, (7) high performance fans, (31) DIMM blanks, power supply, documentation
-
Chassis Form Factor: 1U RackmountChassis Form Factor: Rack-mountableColor: BlackColor: SilverForm Factor: DIMM 288-pinPrinter Type: NoneService Included: On-siteSystem Type: ServerWarranty Information: On-siteWarranty Period: 3 yearsWeight Taxonomy: 28.75lbs
-
Cache Memory (installed): 18MBMemory Attributes: Dual RankMemory Attributes: HPE SmartMemoryMemory Attributes: RegisteredRAM (installed): 32GBRAM Technology: DDR4 SDRAM
-
32GB (1x32GB) 3200MHz DDR4 SDRAM, upgradeable to 4TB.
There are thirty-two DIMM slots. One slot is occupied by a removable 32GB module; the other slots are open.
Memory notes:
Memory will truncate down to match processor data bus speed (where applicable)
Video memory: graphics card(s) sold seperately.
-
There is no operating system pre-installed.
-
OS Provided: No Operating System Installed
-
CD/DVD Type: No Optical DriveCD/DVD Type: None
-
1.7"h x 17.1"w x 30.3"d
-
Expansion slots:
(1) PCIe 4.0 x16, FH (x16 mode)
(1) PCIe 4.0 x16, low-profile (x16 mode)
Expansion bays:
(8) 2.5" hot-swappable drive bays
I/O:
(3) USB 3.0 (1 front, 2 rear, 2 internal)
(1) HPE iLO (front, service port)
(1) USB 2.0 (front)
(1) VGA
(1) HPE iLO
(2) RJ-45 LAN (10GbE)
(2) Power in
Networking controller:
Broadcom BCM57416 controller, 2x10GbE ports, features Wake on LAN (WoL), PXE support
-
# Power Supplies Installed: 1# Power Supplies Supported: 2Power Provided: 800
-
(1) 800W hot-pluggable power supply; supports (2) maximum.
120/230V AC, 1+1 power redundancy with second power supply (sold seperately)
-
# Processors Installed: 1# Processors Supported: 2Chipset Type: Intel C621ANumber of Cores: 12-coreProcessor Manufacturer: IntelProcessor Model Number: 4310Processor Speed: 2.1GHzProcessor Speed (Boosted): 3.3GHzProcessor Type: Xeon SilverProcessor Upgradability: Upgradable
-
Networking Protocol: 10 Gigabit EthernetNetworking Protocol: PXE supportNetworking Protocol: Wake on LAN (WoL)
-
This product is subject to our return policy. Please see our complete return policy for details.
-
22 lbs
-
Compliant Standards: ACPI 6.3Compliant Standards: ASHRAE Class A3Compliant Standards: ASHRAE Class A4Compliant Standards: Redfish APICompliant Standards: SMBIOS 3.2Compliant Standards: TLS v1.2Compliant Standards: UEFICompliant Standards: WEEE
-
Hard Drive Type: Hot-swapHard Drive Type: No HDDHard Drive Type: NoneStorage Controller Type: NVM ExpressStorage Controller Type: SASStorage Controller Type: SATAStorage Controller Type: SATA/SAS/NVMe
-
43211501
-
Display Technology: None.Video RAM (installed): 16MB
