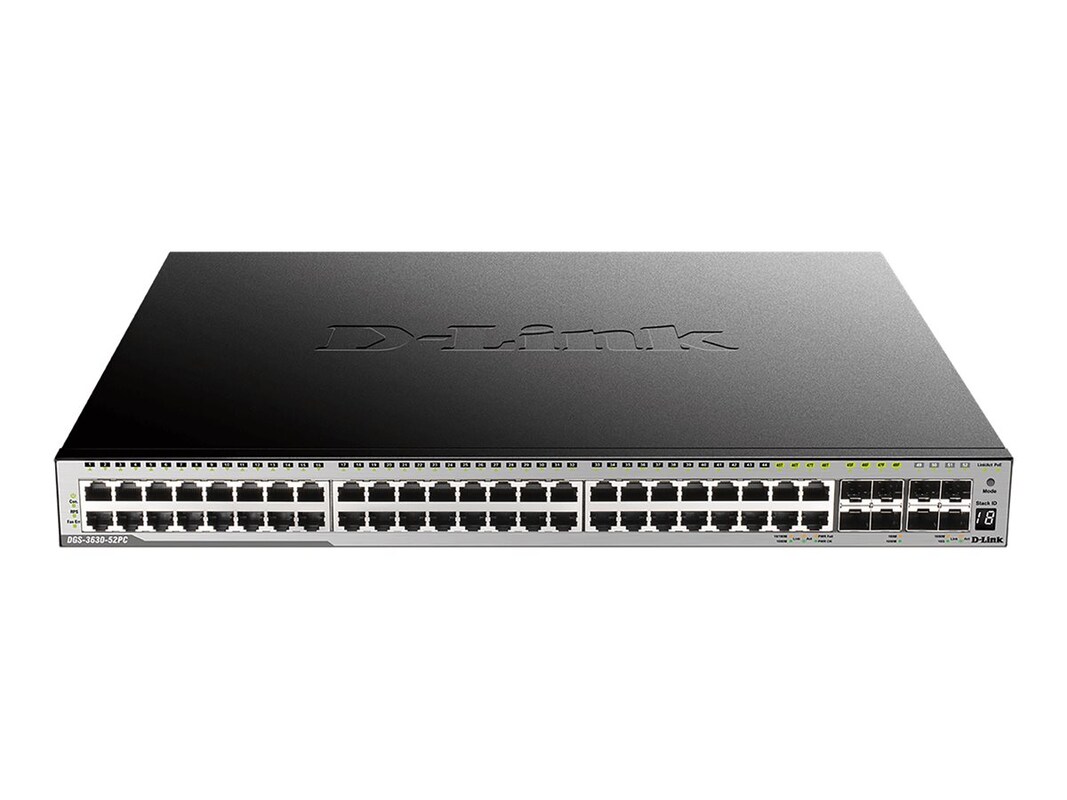

The DGS-3630 series Layer 3 stackable managed switches are designed for small to mediumsized businesses, small to medium-sized enterprises, large enterprises, and Internet service providers. They deliver high performance, flexibility, fault tolerance, and advanced software features for maximum return on investment. With Gigabit Ethernet, SFP, 10 GbE SFP+, security features, and advanced Quality of Service (QoS), the DGS-3630 series can act as core, distribution, or access layer switches. High port densities, switch stacking, and easy management make the DGS-3630 series suitable for a variety of applications.
-
13.90 lbs
-
# Ports: 48# Ports: 8
-
Switch, documentation
-
Chassis Form Factor: 1U RackmountColor: BlackColor: GrayForm Factor: Rack-mountableWarranty Period: Limited lifetimeWeight Taxonomy: 13.89lbs
-
Specifications:
Switching capacity: 176Gbps
Forwarding performance: 130.95Mpps
Stacking bandwidth: 80Gbps
IPv4 routing table entries: 16000
IPv6 routing table entries: 7000
IPv4 forwarding table entries: 32000
IPv6 forwarding table entries: 16000
VLAN groups: 4000
Dynamic VLAN entries: 4000
Static ARP entries: 512
IPv4 routes (static): 512
IPv6 routes (static): 256
QoS hardware queues per port: 8
ACL entries (egress): 4000
ACL entries (ingress): 1000
MAC Address Table Size: 68K entries
Jumbo Frame Support: 12KB
Max Units In A Stack: 9 -
Networking Type: Switch
-
1.7"h x 17.4"w x 15.0"d
-
I/O:
(48) 1000Base-T RJ-45 PoE+
(4) 1000Base-X SFP
(4) 10GBase-X SFP+
(1) RJ-45 console management
(1) RJ-45 management (GbE LAN)
(1) USB 2.0 Type-A
(1) RJ-45 alarm
(1) mini-USB console -
Powered over ethernet
PoE budget: 370W
Voltage required: 120 to 230V AC, 50 to 60Hz
Operational power consumption: 54.1W
Cooling:
(2) Fans -
Networking Protocol: 10 Gigabit EthernetNetworking Protocol: ACLNetworking Protocol: ARPNetworking Protocol: DHCPNetworking Protocol: DSCPNetworking Protocol: Gigabit EthernetNetworking Protocol: IEEE 802.1ab (LLDP)Networking Protocol: IEEE 802.1agNetworking Protocol: IEEE 802.1AXNetworking Protocol: IEEE 802.1DNetworking Protocol: IEEE 802.1pNetworking Protocol: IEEE 802.1QNetworking Protocol: IEEE 802.1QbbNetworking Protocol: IEEE 802.1sNetworking Protocol: IEEE 802.1vNetworking Protocol: IEEE 802.1WNetworking Protocol: IEEE 802.1xNetworking Protocol: IEEE 802.3afNetworking Protocol: IEEE 802.3ahNetworking Protocol: IEEE 802.3atNetworking Protocol: IEEE 802.3xNetworking Protocol: IGMPNetworking Protocol: IGMP v2Networking Protocol: IGMP v3Networking Protocol: OSPFNetworking Protocol: PoE+Networking Protocol: QOSNetworking Protocol: RADIUSNetworking Protocol: RIPNetworking Protocol: TACACS+Networking Protocol: TFTPRemote Management Protocol: CLIRemote Management Protocol: HTTPSRemote Management Protocol: RMON 1Remote Management Protocol: RMON 2Remote Management Protocol: RMON 3Remote Management Protocol: RMON 9Remote Management Protocol: SNMP 1Remote Management Protocol: SNMP 2cRemote Management Protocol: SNMP 3Remote Management Protocol: SSH-2Remote Management Protocol: TelnetRemote Management Protocol: TFTPRouting Protocol: BGP-4Routing Protocol: BGP-4+Routing Protocol: Bidirectional Forwarding Detection (BFD)Routing Protocol: DVMRPv3Routing Protocol: IGMPRouting Protocol: IGMPv2Routing Protocol: IGMPv3Routing Protocol: MLDRouting Protocol: MLDv2Routing Protocol: MSDPRouting Protocol: OSPFv2Routing Protocol: OSPFv3Routing Protocol: PIM-DMRouting Protocol: PIM-SMRouting Protocol: PIM-SSMRouting Protocol: Policy-based routing (PBR)Routing Protocol: RIP-1Routing Protocol: RIP-2Routing Protocol: RIPngRouting Protocol: Static IPv4 routingRouting Protocol: Static IPv6 routingRouting Protocol: URPFRouting Protocol: VRRPRouting Protocol: VRRPv2Routing Protocol: VRRPv3
-
This product is subject to our return policy. Please see our complete return policy for details.
-
13.88 lbs
-
Compliant Standards: BSMICompliant Standards: CBCompliant Standards: CCCCompliant Standards: C-TickCompliant Standards: CULCompliant Standards: FCC Class A certifiedCompliant Standards: ITU Y.1731Compliant Standards: VCCI
-
