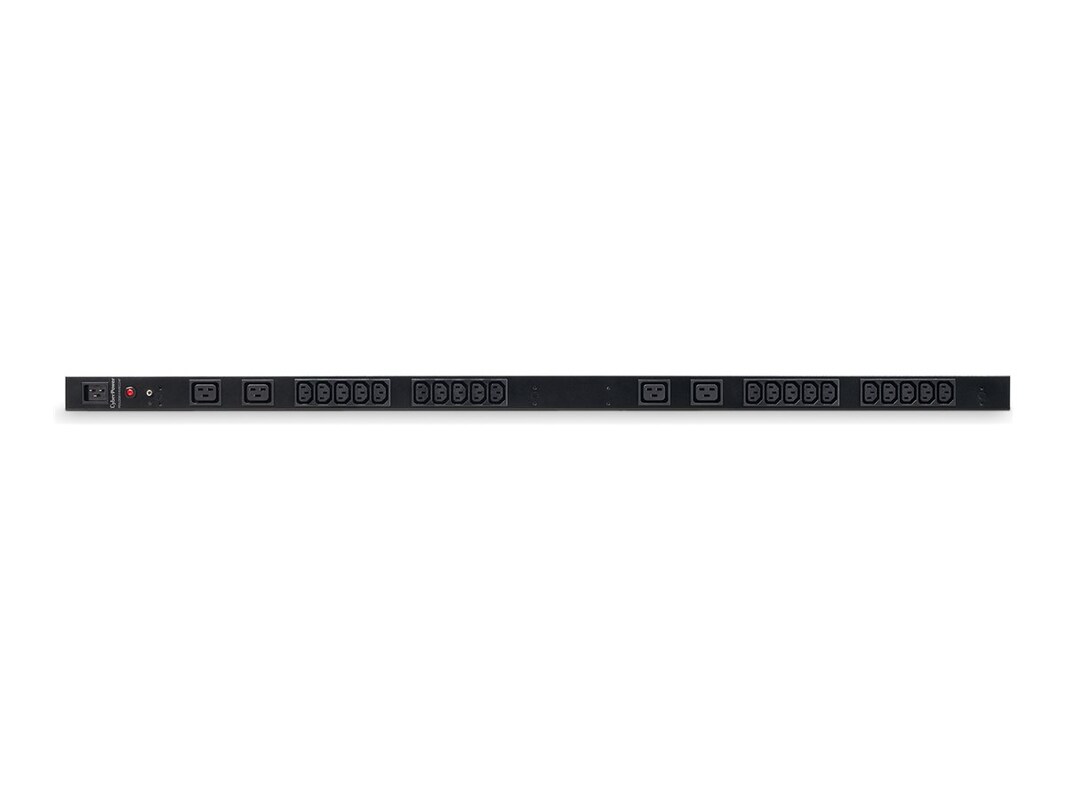

The CyberPower PDU20BVHVIEC24F, a 24-outlet (front), 0U vertical rackmount basic power distribution unit (PDU), provides 200/230V 20A output. It distributes power to 20 IEC-320 C13, 4 IEC-320 C19 receptacles from a single IEC-320 C20 plug with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the PDU20BVHVIEC24F has rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal, and wall mount installation. The PDU20BVHVIEC24F comes with a cord retention tray and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions.
-
6.00 lbs
-
Specifications
Style: Rackmount, Vertical Rackmount, Wallmount/Under-Counter
Form Factors Supported: Vertical or horizontal mounting supported in wallmount applications, racks and a variety of other surface types
Cord Retention Tray/Cord Organizers: Yes
Adjustable Mounting Brackets: (3) sets (L-short/L-long/flat)
External Site Ground Pin: Yes
Certifications:UL60950_1 certified by ETL (USA), CSA C22.2 (Canada), RoHS Compliant -
# Ports: 24Connector: Power IEC 320 EN 60320 C13 (F)Connector: Power IEC 320 EN 60320 C19 (F)Connector: Power IEC 320 EN 60320 C20 (M)Connector: Power IEC 60320 C20
-
PDU, cord organizers, adjustable mounting brackets, documentation
-
Color: BlackForm Factor: 0U RackmountForm Factor: Rack-mountableManufacturer Product Line: CyberPower Basic SeriesModel: PDU20BVHVIEC24FWeight Taxonomy: 5.73lbs
-
48"h x 1.75"w x 1.5"d
-
Plug Type: IEC-320 C20
Plug Style: Straight
Cord Length: 10ft
Outlets, Total: (24)
Outlets, Front: (4) C19 + (20) C13
Outlets, Rear: 0
Outlet Type: IEC-320 C13/C19 -
Voltage Provided: 230VVoltage Provided: AC 208/230V
-
Input
Voltage: 200V/230V
Frequency: 50/60Hz
Maximum Input Current: 20A (derated to 16A)
Output
Overload Protection: 16A
Nominal Output Voltage: 200V/230V -
This product is subject to our return policy. Please see our complete return policy for details.
-
11.9 lbs
-
Compliant Standards: ETLCompliant Standards: RoHSCompliant Standards: UL 60950-1
-
39121017
-
Warranty Period: 2 years
