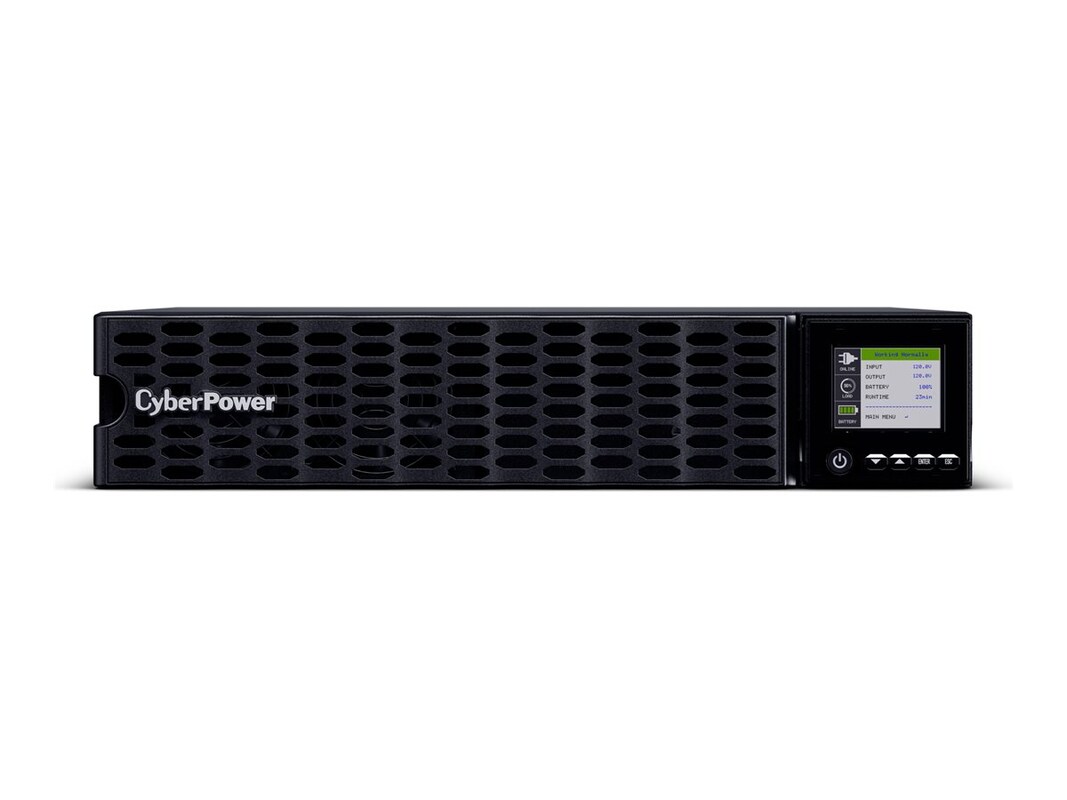

CyberPower 2200VA 1800W 2U UPS w 6x NEMA 5-20R & 1x NEMA L5-20R, TAA

Double-Conversion Topology:

Provides consistent, clean, and nearly perfect power, regardless of the condition of the incoming power. Never a need to switch to battery as DC power operates 100% of the time. Designed for high-end system components, corporate servers, lab equipment, and other sensitive electronic devices.

Sine Wave Output:

Keeps sensitive equipment with Active PFC working by preventing unnecessary shutdowns caused by gaps from simulated sine waves.

Full Matrix LCD Control Panel:

Auto-rotating, multi-function color LCD screen clearly shows status of UPS and power (green for normal, yellow for warning, and red for power failure and fault notices). LCD provides UPS status, controls, most recent event logs, and diagnostics.

Toolless Front Panel:

Tool-less front panel removal makes battery replacement easier.

Hot-Swappable Batteries:

Keeps equipment running by eliminating downtime during UPS power maintenance.

Extended Battery Module (EBM):

Extends runtime by adding up to 10 EBMs.

Smart Battery Management (SBM):

Improves and extends the functional life of a UPS battery and reduces excessive heat during work cycles by using a three-cycle charging process.

Individual Outlet Control:

Individual outlets can be programmed, scheduled, or remote controlled to supply power to different devices.

Fast Charge Technology:

Allows UPS batteries to return to full capacity more rapidly by utilizing a built-in charger. Restores charge from 0-90% within four hours regardless of the number of EBMs.

PowerPanel Business Software:

Provides tools for easy remote monitoring and managing of the UPS and automates shutdown of multiple devices when needed.

RMCARD205:

Enables remote management of up to 50 clients via a standard web browser, command line interface (CLI), or network management system (NMS) connection.

Rackmount Rail:

Ensures easy installation and slides out safely with a safety catch.

Tamper-Proof Input Circuit Breaker:

Ensures power is turned off using a tool to eliminate the risk of accidental powering off when not desired during service or maintenance.

EMI/RFI Filters:

Prevents electromagnetic and radio frequency interference to ensure clean power for connected equipment.

Energy Star Certified & GreenPower UPS ECO Mode:

Improves UPS efficiency up to 96% reducing electrical and cooling costs.

Upgradeable UPS Firmware:

The UPS firmware that manages the unit’s features and functions is field upgradeable. UPS firmware upgrades require the optional RMCARD205 to be installed in the UPS and are done via the web management interface.

Multiple Language Options:

The LCD Control Panel can be configured in English, Spanish, French, and German for ease of use.

Critical & Non-Critical Load Banks:

Maximizes the output of the UPS by scheduling non-critical loads to shut off allowing additional runtime for critical load outlets.

Emergency Power Off (EPO):

Allows the UPS to be shut off in the event of an emergency, when the EPO port is connected to an EPO switch.

Generator Compatible:

Ensures a stable sine wave output (free of harmonics and distortion) without switching to battery mode when running on generator input power.

Converter Mode:

Provides the flexibility to set the output frequency, regardless of the input frequency, to match connected equipment by selecting 50Hz or 60Hz output on the LCD control panel.

USB & Serial Connectivity:

Enables full integration with built-in power management and auto shutdown features on Windows, Linux, and VMware systems throu

(6) NEMA 5-20R

(1) NEMA L5-20R

(1) NEMA 5-20P

(1) RS-232

(1) USB Type B

(1) EPO

(1) Relay out

Input Voltage Range:

60 VAC - 69 VAC for 0–60% Load

70 VAC - 79 VAC for 0–70% Load

80 VAC - 89 VAC for 0–80% Load

90 – 95 VAC for 0–90% load

Nominal Input Voltage:

100 - 125 VAC
