Rollover to Zoom
NOTE: Images may not be exact; please check specifications.
-
Temporarily Out-of-Stock
- Call for next available delivery

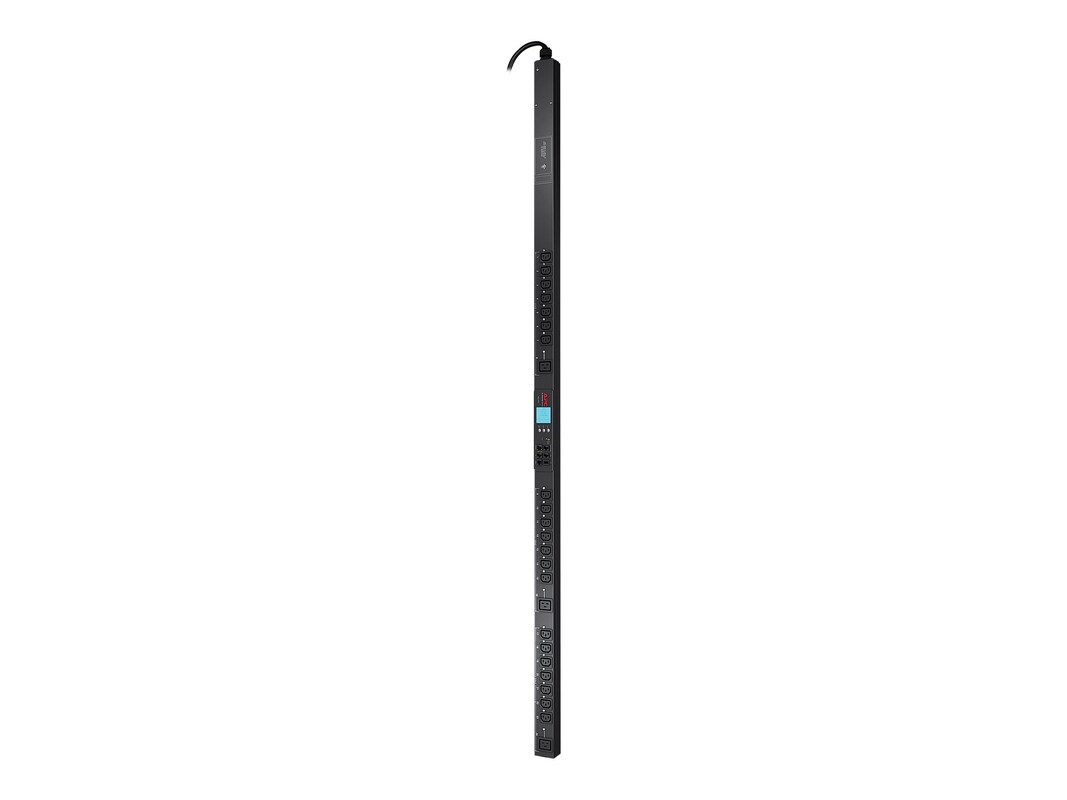

This APC Switched Rack Power Distribution Unit (PDU) enables advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power cycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing time delays allow you to define the order in which to power up or down attached equipment to avoid circuit overload. Current metering provides real-time remote monitoring of connected loads with user-defined alarms to warn of potential circuit overloads. You can access, configure and control the Switched Rack PDU through secure Web, SNMP, Command Line Interface or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency. The AP8000 series Switched Rack PDU includes real power monitoring, a temperature/humidity sensor port and locking IEC receptacles.
-
15.40 lbs
-
Regulatory Approvals: cUL Listed, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Class A, ICES-003, PSE, UL Listed, VCCI Class A, VDE
Environmental Compliance: RoHS, REACH Contains No SVHCs, Contains Lithium Battery -
# Ports: 24Connector: Power IEC 320 EN 60320 C13 (F)Connector: Power IEC 320 EN 60320 C19 (F)Connector: Power IEC 60309
-
PDU, rack mounting brackets, power cord, sample power cord, serial cable, documentation
-
Attributes: MeteredAttributes: SwitchedColor: BlackColor Family: BlackForm Factor: 0U RackmountForm Factor: Rack-mountableManufacturer Product Line: APC Switched Rack PDUModel: 2G Zero UWeight Taxonomy: 15.43lbs
-
70.5"h x 2.2"w x 1.8"d
-
Output Connections
(21) IEC 320 C13
(3) IEC 320 C19
Input Connection
IEC 309 16A 3P+N+PE
IEC 309 20A 3P+N+E
Cord Length: 6 feet (7.8 meters)
Number of Power Cords: (1) -
Voltage Provided: 230VVoltage Provided: AC 208/230V
-
Output
Nominal Output Voltage: 208V, 230V
Maximum Total Current Draw per Phase: 16A
Overload Protection: No
Input
Nominal Input Voltage: 400V 3-phase
Input Frequency: 50/60Hz
Regulatory Derated Input Current (North America): 16A
Acceptable Input Voltage: 100-240VAC
Maximum Line Current per phase: 20A
Maximum Input Current per phase: 20A -
Remote Management Protocol: HTTPRemote Management Protocol: SNMPRemote Management Protocol: Telnet
-
This product has a limited return policy. For defective returns, technical issues and support please contact APC directly at 800-555-2725. Defective units should be replaced through APC directly. Visit http://www.apc.com/us/en/support/contact-us for APC warranty details and contact information.
-
19.5 lbs
-
Compliant Standards: CULCompliant Standards: EN 61000-3-2Compliant Standards: EN 61000-3-3Compliant Standards: EN55022 Class ACompliant Standards: EN55024Compliant Standards: FCC Part 15 ACompliant Standards: ICES-003Compliant Standards: REACHCompliant Standards: RoHSCompliant Standards: ULCompliant Standards: VDE
-
39121017
-
Warranty Period: 2 years
