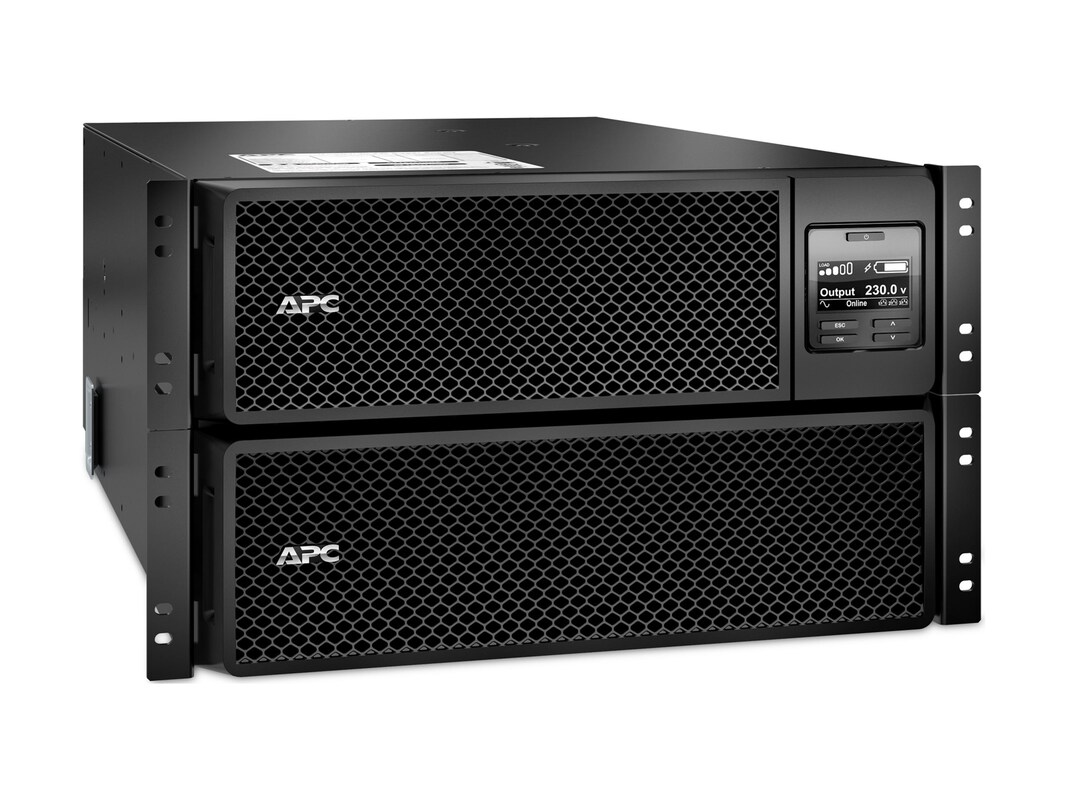

Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice/data networks, medical labs and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass and input power factor correction.
-
246.00 lbs
-
Features
LCD graphics display - Text and mimic diagrams that display modes of operation, system parameters and alarms.
10/100 BaseT Connection - Connect the device to a network using a 10 or 100 BaseT connection.
Green mode - Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing protection.
Battery failure notification - Provides early-warning fault analysis on batteries enabling timely preventive maintenance.
Conformance
Regulatory Approvals: CE, CE Mark
RoHS: Compliant
REACH: Contains No SVHCs
Battery Directive: Compliant
Battery Notes: Contains Lithium Coin Cell
Environmental Compliance: China RoHS -
# Ports: 10Communication Interface: Contact closureCommunication Interface: Serial (RS-232)Communication Interface: USBConnector: Hardwire 3-wire (1PH + N + G)Connector: Hardwire 5-wire (3PH + N + G)Connector: Power Hard Wire 3-wire (1PH + N + G)Connector: Power Hard Wire 3-wire (HN + G)Connector: Power Hard Wire 5-wire (3PH + N + G)Connector: Power IEC 320 EN 60320 C13 (F)Connector: Power IEC 320 EN 60320 C19 (F)Connector: Power IEC jumper
-
UPS, rack mounting brackets/hardware/support rails, temperature probe, USB cable, software CD, documentation
-
Attributes: Double conversion onlineColor: BlackForm Factor: 6U RackmountForm Factor: Convertible TowerForm Factor: Rack-mountableWarranty Period: 3 yearsWeight Taxonomy: 246.52lbs
-
10.4"h x 17"w x 28.2"d
-
Communications & Management
Interface Ports: Contact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB
Available SmartSlot Interface Quantity: (1)
Control panel: Multi-function LCD status and control console
Audible Alarm: Audible and visible alarms prioritized by severity
Emergency Power Off (EPO): Yes -
Battery Run Time (max): 3.8minPower Capacity (VA): 10000VAPower Provided: 10kWPower Provided: 10000VAPower Provided: 230VSurge Suppression: StandardSurge Suppression: YesVoltage Provided: AC 230V
-
Output
Output Power Capacity: 10kW/10kVA
Max Configurable Power: 10kW/10kVA
Nominal Output Voltage: 230VAC
Output Voltage Distortion: Less than 3%
Output Frequency (sync to mains): 50/60Hz +/- 3Hz
Other Output Voltages: 220, 240VAC
Crest Factor: 3:1
Topology: Double Conversion Online
Waveform Type: Sine wave
Bypass: Internal Bypass (Automatic and Manual)
Input
Nominal Input Voltage: 230VAC
Input Frequency: 45-65Hz (auto sensing)
Other Input Voltages: 220, 240VAC
Batteries
Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte, leakproof
Typical recharge time: 1.50 hours
RBC Quantity: (2)
Surge Protection and Filtering
Surge energy rating: 480 Joules -
This product is subject to our return policy. Please see our complete return policy for details.
-
246 lbs
-
Compliant Standards: CECompliant Standards: C-TickCompliant Standards: EACCompliant Standards: EN 50091-1Compliant Standards: EN 50091-2Compliant Standards: EN 62040-2Compliant Standards: IEC 60950Compliant Standards: IP20Compliant Standards: REACHCompliant Standards: RoHSCompliant Standards: VDE
-
