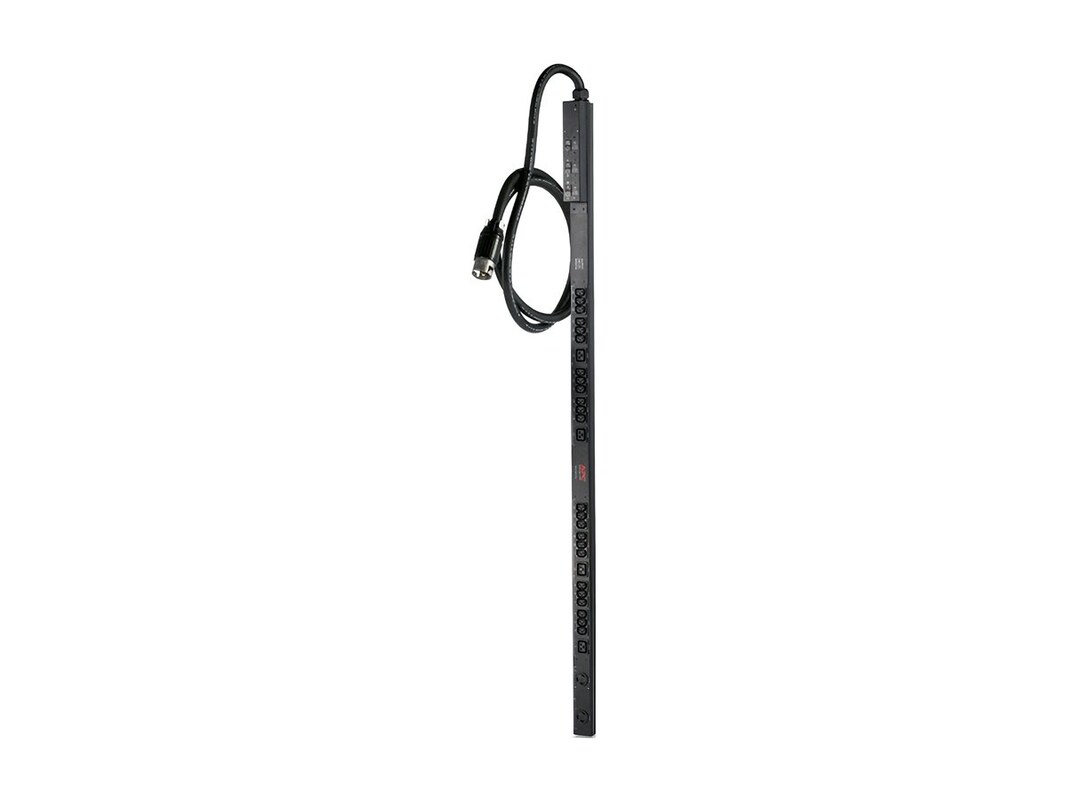

This is a basic 0U rack PDU solution for high density installations. Its maximum load capacity is 14.4kVA with a nominal output voltage of 208VAC and maximum total current draw per phase of 40 amps. It is rack mountable with vertical and toolless-mount capability.
-
21.70 lbs
-
# Ports: 30Connector: Hubbell CS8365CConnector: Power Hubbell CS8265CConnector: Power IEC 320 EN 60320 C13 (F)Connector: Power IEC 320 EN 60320 C19 (F)
-
Unit, cord retention brackets, rack mounting brackets, toolless mounting kit, documentation
-
Color: BlackColor Family: BlackForm Factor: 0U RackmountForm Factor: Rack-mountableManufacturer Product Line: APC Basic Rack PDUWeight Taxonomy: 21.83lbs
-
70"h x 2.2"w x 3.75"d
-
(24) IEC 320 C13 outlets
(4) IEC 320 C19 outlets
(2) NEMA L6-30R outlets
(1) Input Connection Compatible with Hubbell CS8365C, 10ft. cord (3.05m)
-
Power Capacity (VA): 14400VAPower Provided: 14.4kWVoltage Provided: AC 208V
-
Output
Nominal Output Voltage: 208VAC
Maximum Total Current Draw per Phase: 40A
Overload Protection: Yes
Input
Nominal Input Voltage: 208VAC 3Ph
Regulatory Derated Input Current: 40A
Maximum Input Current per phase: 50A
Load Capacity: 14,400VA -
This product has a limited return policy. For defective returns, technical issues and support please contact APC directly at 800-555-2725. Defective units should be replaced through APC directly. Visit http://www.apc.com/us/en/support/contact-us for APC warranty details and contact information.
-
30 lbs
-
Compliant Standards: CSACompliant Standards: CULCompliant Standards: ULCompliant Standards: UL 60950
-
39121017
-
Warranty Period: 2 years
