The safest method to bring ultra-high efficiency and scalability to power distribution for demanding business critical applications.

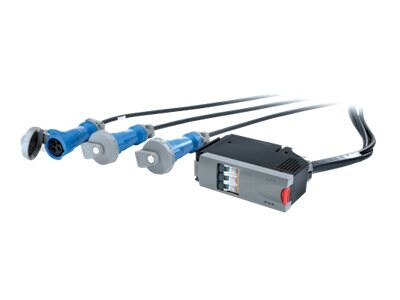

The 1-Phase Circuit Breaker Module features hot swap module technology and is terminated with (3) individual 1-Phase IEC connectors, perfect to power InRow RC modular cooling units.
-
15.00 lbs
-
Regulatory Approvals: UL Listed
Environmental Compliance: RoHS 7b Exemption -
Connector: Power IEC 60309 20A
-
Unit, documentation
-
Color: GrayForm Factor: Plug-in moduleManufacturer Product Line: APCModel: IT Power Distribution ModuleWeight Taxonomy: 14.99lbs
-
6"h x 17"w x 16.5"d
-
Output Connections: (3) IEC 309 16A (680cm 860cm 1040cm)
Input Connection: IEC 309 -
Voltage Provided: AC 230V
-
Output
Nominal Output Voltage: 230V
Maximum Total Current Draw per Phase: 16A
Input
Nominal Input Voltage: 230V
Input Frequency: 60Hz
Acceptable Input Voltage: 200-240VAC
Maximum Line Current per phase: 16A -
Remote Management Protocol: HTTPRemote Management Protocol: SNMP
-
This product has a limited return policy. For defective returns, technical issues and support please contact APC directly at 800-555-2725. Defective units should be replaced through APC directly. Visit http://www.apc.com/us/en/support/contact-us for APC warranty details and contact information.
-
17 lbs
-
Compliant Standards: RoHS Exemption 7bCompliant Standards: UL
-
39121017
-
Warranty Period: 1-year warranty
