                Tripp Lite Uninterruptible Power Supply (UPS) Finder
            Ordering Information
Add to Cart
Messages
					 Loading
					Loading

-
										:
Quick View
                     Getting Details
                    Getting Details

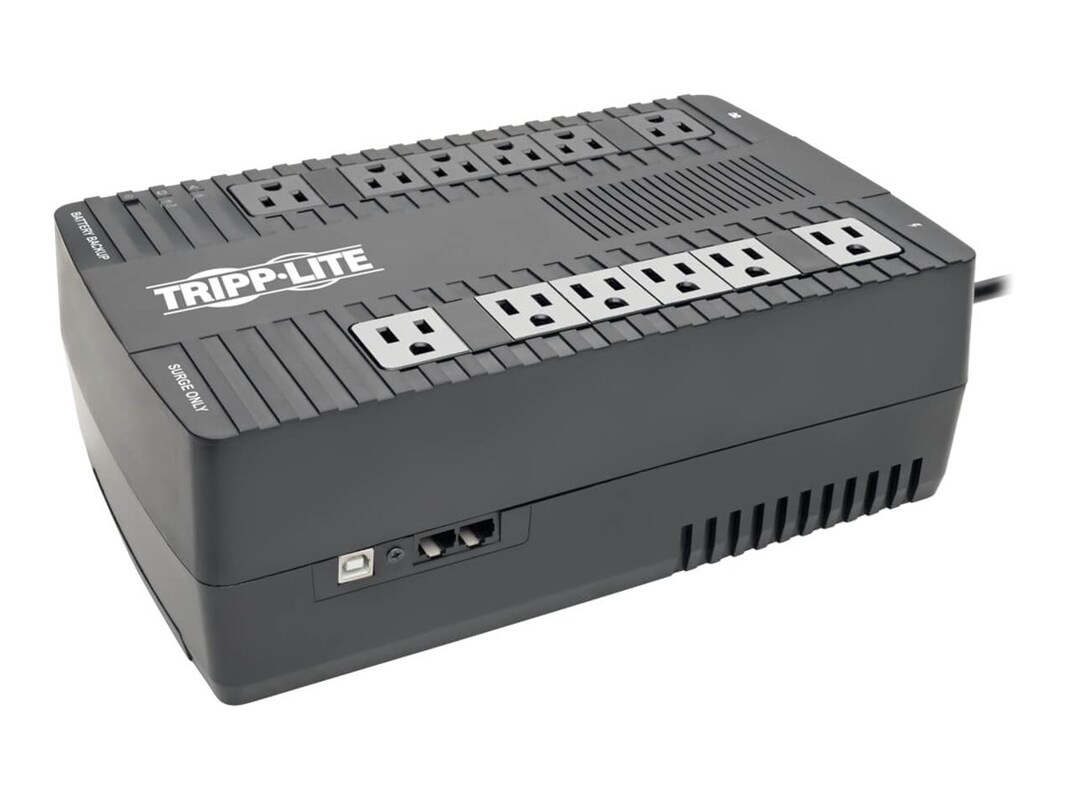

                Tripp Lite's AVR750U line-interactive UPS offers complete protection for PCs, workstations and other sensitive electronics in an ultra-compact, mountable housing. Prevents data loss and system downtime by providing battery-supported AC output during blackouts and Automatic Voltage Regulation (AVR) during brownouts and overvoltages. Includes (12) output receptacles, (4) of which are widely spaced to accommodate large transformer blocks without obscuring adjacent outlets. (6) outlets feature full battery support and surge suppression, protecting computers, monitors and other vital system components from power loss. (6) additional outlets with surge suppression only are ideal for printers and other peripherals not requiring battery support.
Single-line telephone suppression jacks protect modems, fax machines, cordless phones or other equipment with a DSL or standard dialup RJ-11 phone line connection. The USB port with included cable and PowerAlert monitoring software enables safe unattended system shutdown in case of extended power failure. HID-compliant USB interface enables full integration with built-in power management and auto-shutdown features of Windows, Mac OS X and Linux. Audible alarm and front panel LEDs offer status information regarding line and battery power operation. 750VA / 450 watt power-handling ability supports entry-level PCs for up to 35 minutes during power failures.
        Single-line telephone suppression jacks protect modems, fax machines, cordless phones or other equipment with a DSL or standard dialup RJ-11 phone line connection. The USB port with included cable and PowerAlert monitoring software enables safe unattended system shutdown in case of extended power failure. HID-compliant USB interface enables full integration with built-in power management and auto-shutdown features of Windows, Mac OS X and Linux. Audible alarm and front panel LEDs offer status information regarding line and battery power operation. 750VA / 450 watt power-handling ability supports entry-level PCs for up to 35 minutes during power failures.
-
                15.30 lbs
-
                LEDS ALARMS & SWITCHES
 LED Indicators: (2) LEDs indicate power status and overload/check battery status
 Alarms: Audible alarm indicates power-failure and overload status
 Switches: Combination switch controls on/off power status and self-test operation
 SURGE / NOISE SUPPRESSION
 UPS AC suppression rating: 420 joules
 UPS AC suppression response time: Instantaneous
 UPS Dataline suppression: (1) line TEL / DSL protection (1 in / 2 out - splitter)
 EMI / RFI AC noise suppression: Yes
 PHYSICAL
 Installation form factors supported with included accessories: Tower; Ultra-compact desktop; Wallmount (using keyhole mounting tabs)
 Primary form factor: Desktop
 COMMUNICATIONS
 Communications interface: USB (HID enabled)
 PowerAlert software: Free download from www.tripplite.com
 Communications cable: USB interface cable included
 WatchDog compatibility: Supports Watchdog application, OS and hard-reboot restart options for remote applications
 LINE / BATTERY TRANSFER
 Transfer time: 2 to 4 milliseconds
 Low voltage transfer to battery power (setpoint): 83V
 High voltage transfer to battery power (setpoint): 147V
 SPECIAL FEATURES
 Cold Start (startup in battery mode during a power failure): Cold-start operation supported
 High availability UPS features: Hot swappable batteries
 Green & high efficiency features: Greater than 95% efficiency - GREEN UPS
 CERTIFICATIONS
 UPS Certifications: Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B (EMI); Meets FCC Part 68 / Industrie Canada (telecommunications); RoHS (Reduction of Hazardous Substances)
-
                # Ports: 12Communication Interface: USBConnector: Power NEMA 5-15Connector: Power NEMA 5-15 (F)Connector: Power NEMA 5-15 (M)
-
                UPS, software, USB cable, phone cable, documentation
-
                Attributes: Automatic voltage regulation (AVR)Attributes: Line interactiveAttributes: RJ-11 line protectionColor: BlackEnclosure Type: InternalForm Factor: BlockForm Factor: ExternalManufacturer Product Line: Eaton Tripp Lite SeriesModel: UPS 750VA 450W Desktop Battery Back Up AVR 50/60Hz Compact 120V USB RJ11
-
                Fulfillment Type: NoneMaintenance Included: No
-
                4"h x 12"w x 7"d
-
                (12) NEMA 5-15R outlets (6 UPS/surge, 6 surge only)
 (1) NEMA 5-15P input cord, 6ft
 (2) RJ-11 protection (1-in, 1-out)
 (1) USB management port
-
                Battery Run Time (max): 3minPower Capacity (VA): 750VAPower Provided: 450Power Provided: 450WSurge Suppression: StandardVoltage Provided: 120VVoltage Provided: AC 120V
-
                OUTPUT
 Output Capacity: 750VA/450W
 Nominal Output Voltages Supported: 115v; 120v
 Frequency compatibility: 60Hz
 Output voltage regulation (line mode): +8%, -21%
 Output voltage regulation (Battery mode): 115V (+/- 5%)
 Output AC waveform (AC mode): Sine wave
 Output AC waveform (battery mode): PWM sine wave
 INPUT
 Rated input current (at maximum load): 12A
 Nominal Input Voltages Supported: 120VAC
 Recommended Electrical Service: 15A, 120V
 BATTERY
 Full load runtime: 3 minutes (450W)
 Half load runtime: 10 minutes (225W)
 DC system voltage: 12VDC
 Battery recharge rate (included batteries): Less than 27 hours from 10% to 90%
 Replacement battery cartridge (internal UPS battery replacement): RBC51
 Battery Access: Battery access door
 Battery replacement description: Hot-swappable, user replaceable batteries
 VOLTAGE REGULATION
 Voltage regulation description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 147V
 Overvoltage correction: Input voltages between 129 and 147V are reduced by 12%
 Undervoltage correction: Input voltages between 83 and 104V are boosted by 14%
-
                This product is subject to our return policy. Please see our complete return policy for details.
-
                17 lbs
-
                Compliant Standards: CULCompliant Standards: NOM
-
                39121011
-
                Warranty Period: 3 years
