- Ethernet 100Base-FXEthernet 100Base-TXEthernet 10Base-T Transceiver
- 100.0Mbps200Mbps Transfer Rate
- Ethernet, Fast Ethernet, IEEE 802.3, IEEE 802.3u Protocol(s)
- Yes, TAA Compliant

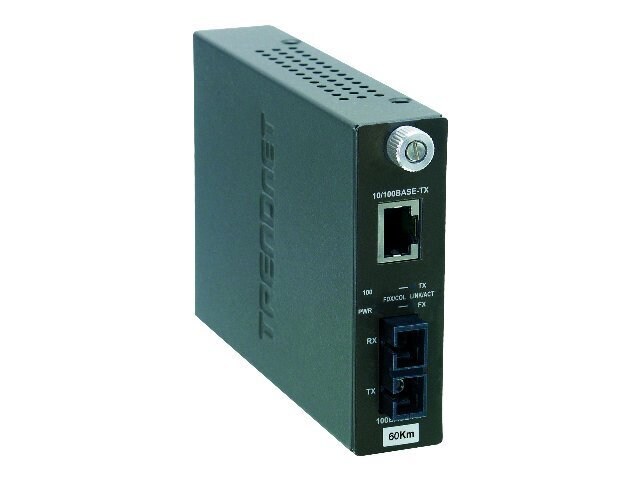

This Fiber Media Converter transforms 10/100BaseTX UTP/STP media to 100BaseFX media and vice versa. This converter will give your switch or hub the ability to interface with fiber connection over a distance up to 60km. It's the perfect solutions for various fiber media conversions for your network.
-
Supported Frame Size: Standard Ethernet up to 1522B
Wavelength: 1300nm
Protocol: CSMA/CD -
Cabling Type: Ethernet 100Base-FXCabling Type: Ethernet 100Base-TXCabling Type: Ethernet 10Base-TConnectivity Technology: WiredConnector: SC single-mode
-
Converter, documentation
-
Form Factor: ExternalWarranty Period: Limited lifetimeWeight Taxonomy: 0.88lbs
-
Networking Type: Fiber media converter
-
Data Transfer Rate: 100MbpsData Transfer Rate: 200Mbps
-
(1) 10/100BaseTX RJ-45 auto-negiotiating Auto-MDIX full-/half-duplex
(1) 100BaseFX SC full-/half-duplex
Network Media:
100BaseTX: Cat 5, EIA/TIA-568 100ohm UTP/STP, up to 100m
100Base-FX: Single-Mode fiber optic cable 9/125 or 10/125, up to 60km -
Power Provided: 7.2
-
Power Adapter: 7.5VDC, 1.5A (7.2 watts max.)
-
Networking Protocol: EthernetNetworking Protocol: Fast EthernetNetworking Protocol: IEEE 802.3Networking Protocol: IEEE 802.3u
-
This product is subject to our return policy. Please see our complete return policy for details.
-
2.4 lbs
-
Compliant Standards: TAACompliant Standards: Yes
-
26121609
-
Limited Lifetime
-
Limited Lifetime
