Rollover to Zoom
NOTE: Images may not be exact; please check specifications.
-
In Stock
- Ships in 24-48 Hours
Ordering Information
$416.78
Quick View
Getting Details
- Unit and Port LEDs allow for quick status information
- Auto-Negotiation
- Fixed Full-Duplex on fiber
- Ethernet 1000Base-LXEthernet 1000Base-TEthernet 100Base-TXEthernet 10Base-T Transceiver
- 1.0Gbps1Gbps Transfer Rate
- Ethernet, Fast Ethernet, Gigabit Ethernet Protocol(s)
- CUL, EN55022 Class A, EN55024, FCC Class A certified, UL, CISPR 22, EN 55022 Class A, EN 55024, CE Compliant

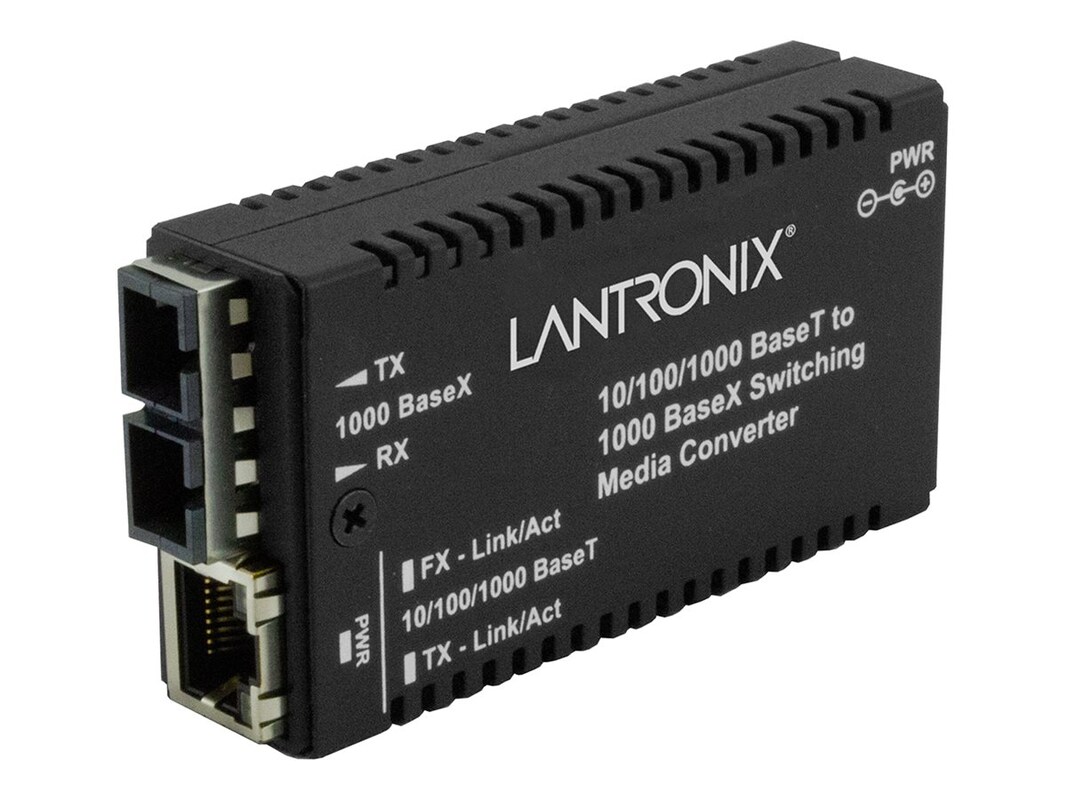

The mini media converters provide a cost-effective method for integrating fiber optic cabling into a 10/100/1000 UTP environment. With its miniature size, the mini offers a space saving alternative while it converts copper to fiber with the smallest footprint available in the industry.
-
2.00 lbs
-
Cabling Type: Ethernet 1000Base-LXCabling Type: Ethernet 1000Base-TCabling Type: Ethernet 100Base-TXCabling Type: Ethernet 10Base-TConnectivity Technology: WiredConnector: RJ-45
-
Transceiver, documentation
-
Form Factor: ExternalManufacturer Product Line: Transition Networks Stand-AloneWarranty Period: Limited lifetime
-
FIBER OPTIC CONNECTOR SPECS:
Single Mode:
- Min TX PWR: -9.5 dBm
- Max TX PWR: -3.0 dBm
- RX Sensitivity: -20.0 dBm
- Max In PWR: -3.0 dBm
- Link Budget: 10.50 dB
ENVIRONMENTAL PROPERTIES:
Operating Temperature: 32 to 122 F (0 to 50 C)
Storage Temperature: -5 to 149 F (-15 to 65 C)
Humidity: 5 to 95%, non-condensing
Altitude: 0 to 10,000 ft (3048 m.) -
Networking Type: Fiber media converter
-
Data Transfer Rate: 1Gbps
-
1.8"W x 3.3"D x 0.85"H
-
Power Consumption: 3.15 watts
Power Sources: Unit accepts 5VDC to 28VDC
Wall Mount AC adapter: 12VCD 400mA -
Networking Protocol: EthernetNetworking Protocol: Fast EthernetNetworking Protocol: Gigabit Ethernet
-
This product is subject to our return policy. Please see our complete return policy for details.
-
0.82 lbs
-
Compliant Standards: CECompliant Standards: CISPR 22Compliant Standards: CULCompliant Standards: EN 55022 Class ACompliant Standards: EN 55024Compliant Standards: EN55022 Class ACompliant Standards: EN55024Compliant Standards: FCC Class A certifiedCompliant Standards: UL
-
26121609
