Panorama Antennas LOW PRO 4X LTE,2XWI-FI,GPS-BLA

Print page
Item#: 41855397 // MFG Part#: LGMDM4B-7-38-24-58 // By: Panorama Antennas

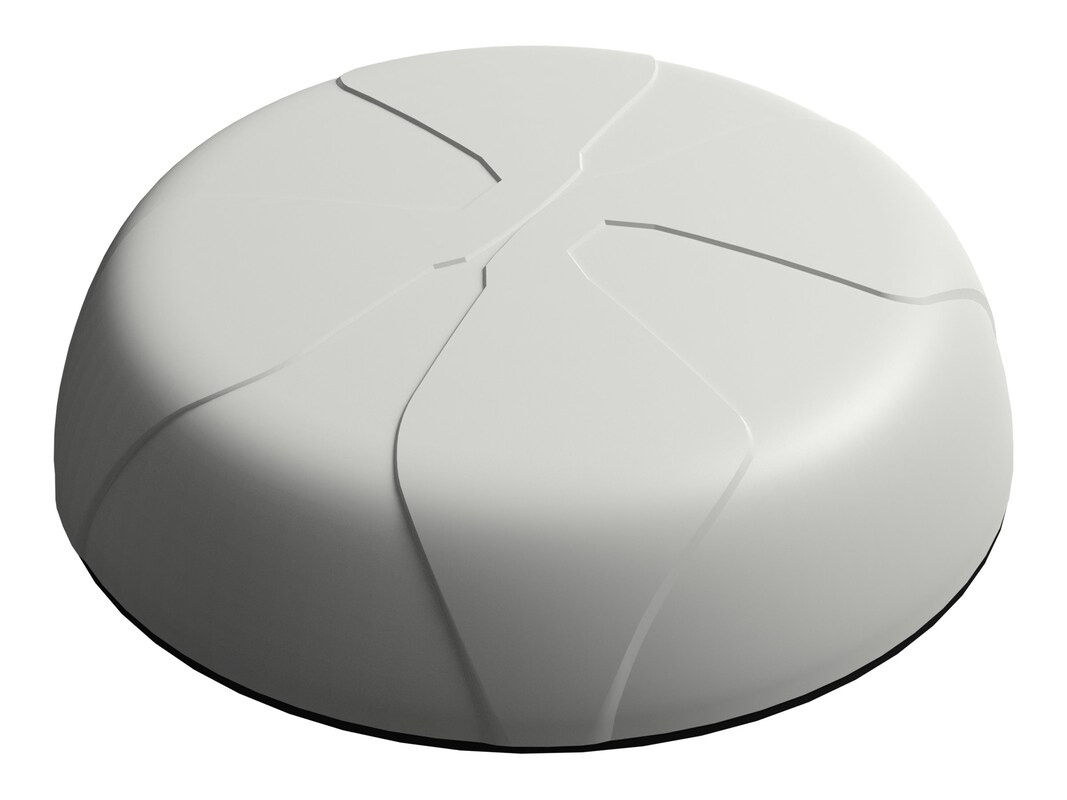

Panorama Antennas LGMDM4B-7-38-24-58 Main Image from Front
Rollover to Zoom
NOTE: Images may not be exact; please check specifications.
  • Temporarily Out-of-Stock
  • Call for next available delivery
Ordering Information
$239.48
Qty:
The Panorama L[G]M[Q]M4 low profile MiMo antenna range has been designed to support the next generation of vehicular LTE routers with 4x4 MiMo. The antenna enclosure can provide up to nine antenna elements. All versions have four ultra-wideband elements for 698-3800MHz which support MiMo function for 4G/5G and cellular bands. LG versions offer a GNSS antenna which has a 26dB gain LNA with high performance filtering for reliable operation. Variants are also available which include 2, 3 or 4 dual band 2.4/4.9-6GHz Wi-Fi elements for MiMo function designated by the suffix 24-58.
The antenna does not require a metallic ground plane, and maintains a high level of performance even when mounted on a non-metallic surface. The GNSS antenna module carries an E11 Mark type approval under ECE R10.4, and the cables are certified to ECE 118.01.
