Omnitron 10 100 BASE-TX FX ETHERNET US

Print page
Item#: 41065740 // MFG Part#: 1111-2-1 // By: Omnitron Systems Technology

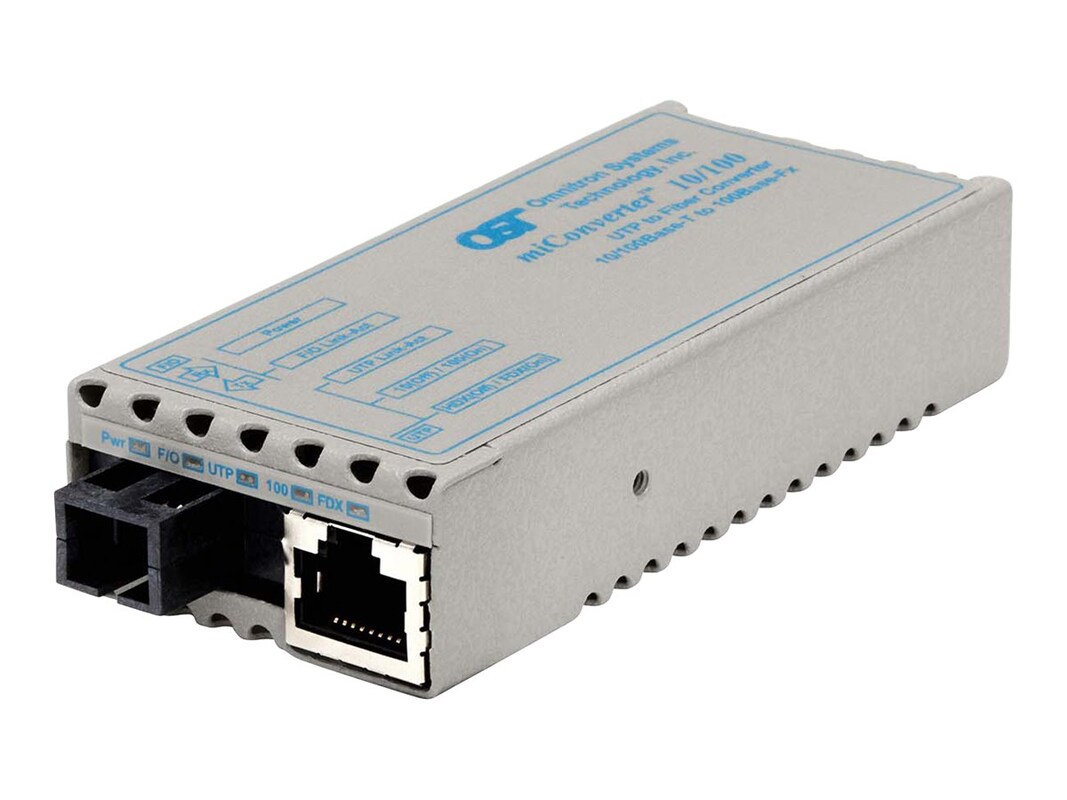

Omnitron Systems Technology 1111-2-1 Main Image from Left-angle
Rollover to Zoom
NOTE: Images may not be exact; please check specifications.
  • Temporarily Out-of-Stock
  • Call for next available delivery
Ordering Information
$447.12
Qty:
  • Ethernet 100Base-FXEthernet 100Base-TXEthernet 10Base-T Transceiver
  • 100.0Mbps100Mbps Transfer Rate
  • Fast Ethernet, Ethernet Protocol(s)
  • FCC Class B certified, UL Compliant
The miniature miConverter 10/100 is a rate-switching 10/100 UTP copper to 100Base-Fx fiber media converter that provides cost-effective fiber network extension and connectivity. The miConverter 10/100's Plug-and-Play capability ensures compatibility with network equipment and simplifies fiber-to-the-desktop deployment. The miConverter 10/100 supports a variety of fiber types and offers many power options.

The miConverter 10/100's UTP copper port can auto-negotiate by detecting the speed and duplex-mode of the connected device. Upon connection to the UTP device, the UTP port speed adjusts to either 10Mbps or 100Mbps, and the duplex-mode adjusts to either Half-Duplex or Full-Duplex. Auto-crossover technology allows the miConverter 10/100 to connect to both a workstation (MDI port) and a hub/switch (MDI-X port) without requiring a crossover cable.
