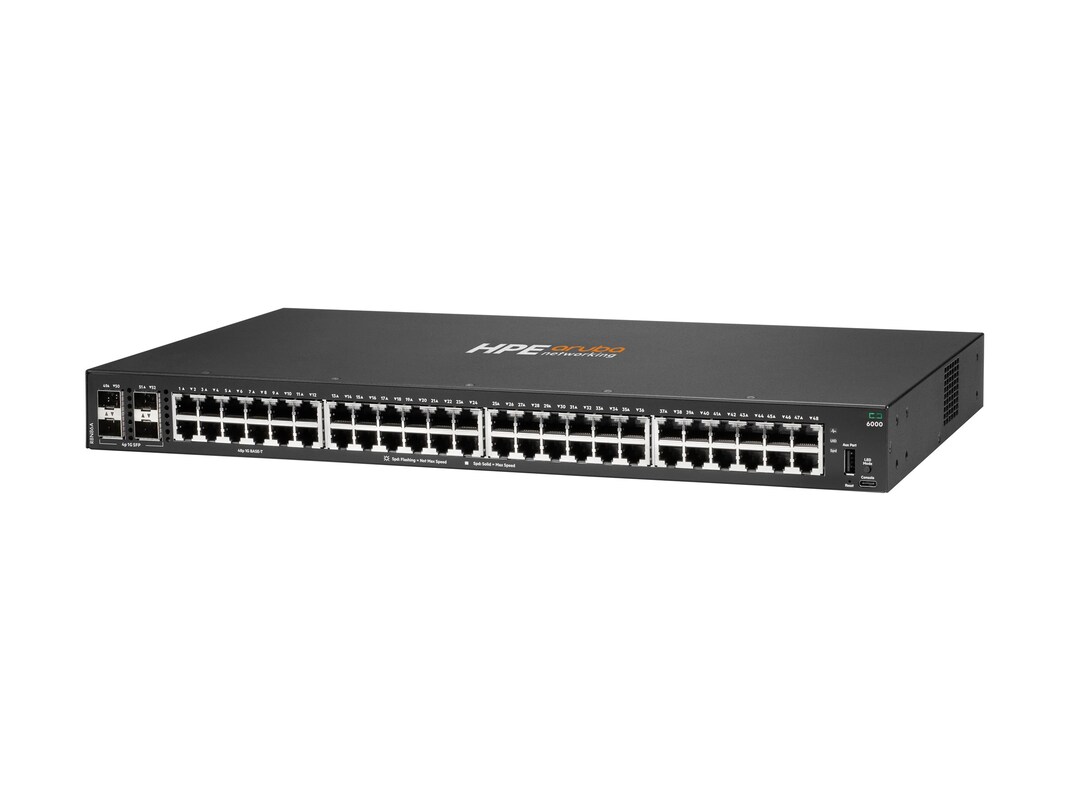

The Aruba CX 6000 Switch Series is a modern family of entry level access switches ideal for branch offices, midsize businesses, and small enterprises. Designed for reliable, simple, and security-enhanced access, the Aruba CX 6000 series provides a convenient and cost-effective wired access solution for networks supporting IoT, mobile, and cloud applications.
-
7.50 lbs
-
# Ports: 4# Ports: 48
-
Switch, power supply, mounting kit, documentation
-
Chassis Form Factor: 1U RackmountColor: BlackForm Factor: Rack-mountableWarranty Period: Limited lifetimeWeight Taxonomy: 7.54lbs
-
Packet buffer size: 12.38 MB
Throughput: 77.3 Mpps
Switching capacity: 104 Gbps
Latency (1 Gbps): 1.9 µs
Switched virtual interfaces (SVIs): 16
ARP entries: 1024
IPv4 routes (Unicast): 512
IPv6 routes (Unicast): 512
IGMP groups: 512
MLD groups: 512
IPv4 ACL entries (ingress): 256
IPv6 ACL entries (ingress): 128
MAC ACL entries (ingress): 256
-
RAM (installed): 4GBRAM Technology: DDR3 SDRAM
-
ARM A9 1.016GHz processor
4GB DDR3 SDRAM
16GB Flash memory
-
Networking Type: Switch
-
1.7"h x 17.4"w x 9.7"d
-
I/O:
(48) 10/100/1000Base-T RJ-45
(4) GbE LAN SFP
(1) USB Type-A
(1) USB Type-C console
(1) Power in
-
# Power Supplies Installed: 1
-
Internal power supply, 100-127V AC/200-240V AC, 50/60Hz
-
# Processors Installed: 1Processor Manufacturer: ARMProcessor Speed: 1.016GHzProcessor Type: A9
-
Networking Protocol: Gigabit EthernetNetworking Protocol: IEEE 802.1DNetworking Protocol: IEEE 802.1pNetworking Protocol: IEEE 802.1QNetworking Protocol: IEEE 802.1sNetworking Protocol: IEEE 802.1WNetworking Protocol: IEEE 802.3Networking Protocol: IEEE 802.3abNetworking Protocol: IEEE 802.3ad (LACP)Networking Protocol: IEEE 802.3azNetworking Protocol: IEEE 802.3xRemote Management Protocol: CLIRemote Management Protocol: DHCPRemote Management Protocol: HTTPRemote Management Protocol: ICMPRemote Management Protocol: RADIUSRemote Management Protocol: RMON 1Remote Management Protocol: RMON 2Remote Management Protocol: RMON 3Remote Management Protocol: RMON 9Remote Management Protocol: SNMP 1Remote Management Protocol: SNMP 2cRemote Management Protocol: SNMP 3Routing Protocol: IGMPRouting Protocol: IGMPv2Routing Protocol: IGMPv3
-
This product is subject to our return policy. Please see our complete return policy for details.
-
0.01 lbs
-
Compliant Standards: CAN/CSA C22.2 No. 60950Compliant Standards: CISPR 24Compliant Standards: CISPR 32 Class ACompliant Standards: CISPR 35Compliant Standards: CNS 13438Compliant Standards: EN 55024:2010Compliant Standards: EN 55032:2015/AC:2016-07 Class ACompliant Standards: EN 55035:2017Compliant Standards: EN 60825-1Compliant Standards: EN 60825-1:2007Compliant Standards: EN 60950-1Compliant Standards: EN 61000-3-2Compliant Standards: EN 61000-3-3Compliant Standards: EN 62368-1:2014Compliant Standards: FCC CFR47 Part 15 ACompliant Standards: ICES-003 Issue 6 Class ACompliant Standards: IEC 60825-1 Class 1Compliant Standards: IEC 60950-1Compliant Standards: IEC 61000-3-2Compliant Standards: IEC 61000-3-3Compliant Standards: IEC 61000-4-11Compliant Standards: IEC 61000-4-2Compliant Standards: IEC 61000-4-3Compliant Standards: IEC 61000-4-4Compliant Standards: IEC 61000-4-5Compliant Standards: IEC 61000-4-6Compliant Standards: IEC 61000-4-8Compliant Standards: IEC 62368-1 Second EditionCompliant Standards: UL 60950-1Compliant Standards: UL 62368-1 Second EditionCompliant Standards: VCCI-CISPR 32:2016 Class A
-
Hard Drive Capacity: 16GBHard Drive Type: Flash
-
