Temporarily Out-of-Stock
- Call for next available delivery
Ordering Information
$23,526.95
Add to Cart
Messages
Loading
-
:
Quick View
Getting Details

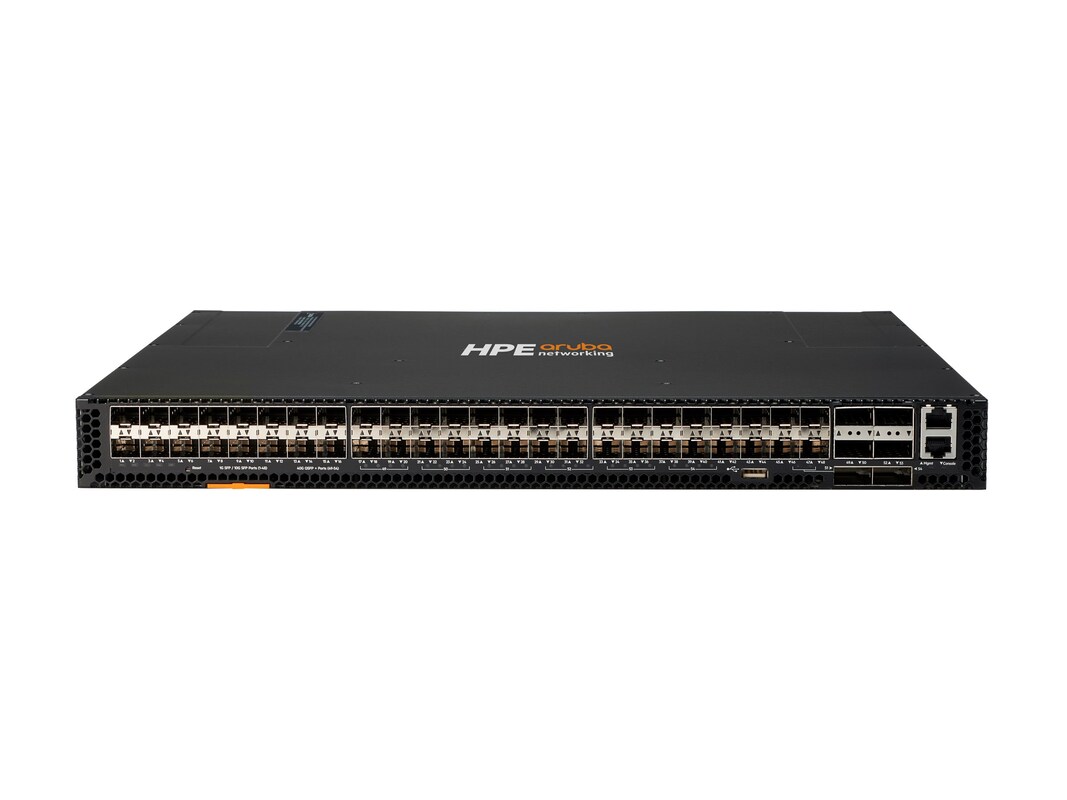

The past several decades in networking have been defined by static, closed networking solutions designed for the client-server era. The Aruba 8320 Switch Series, a campus core and aggregation switch, is a game-changing solution that offers an innovative approach to dealing with the demands of the mobile, cloud and IoT era. The Aruba 8320 is based on ArubaOS-CX, a modern software system that automates and simplifies critical and complex network tasks, delivers enhanced fault tolerance and facilitates zero-service disruption during planned or unplanned control-plane events. The key innovations in ArubaOS-CX are its micro-services style modular architecture, REST APIs, Python scripting capabilities and the Aruba Network Analytics Engine. The Aruba 8320 Switch Series provides line rate 10GbE and 40GbE in a compact 1U form factor and together with the modular Aruba 8400 Switch, rounds out the Aruba Mobile First switching portfolio with an enterprise core and aggregation solution.
-
20.70 lbs
-
# Ports: 48# Ports: 6
-
Switch, power supply, rack mounting kit, documentation
-
Chassis Form Factor: 1U RackmountColor: BlackForm Factor: Rack-mountableWarranty Period: 5 yearsWeight Taxonomy: 20.72lbs
-
Switching capacity: 2.5Tbps
Forwarding performance: 1.905Mpps
Virtual interfaces (VLANs) per port for 802.1q: 4096
Jumbo Frame Support: 9KB -
Networking Type: Switch
-
1.7"h x 17.4"w x 19.9"d
-
I/O:
(48) 10GbE LAN SFP+
(6) 40GbE LAN QSFP+
(1) RJ-45 serial
(1) micro-USB console
(1) RJ-45
(2) Power in -
# Power Supplies Installed: 2# Power Supplies Supported: 2Power Provided: 400Power Provided: 800W
-
(2) 400W internal hot-plug power supplies; maximum.
1+1 power redundancy
Voltage required: 120 to 230V AC, 50 to 60Hz -
Networking Protocol: 10 Gigabit EthernetNetworking Protocol: 40 Gigabit EthernetNetworking Protocol: Gigabit EthernetNetworking Protocol: IEEE 802.1ab (LLDP)Networking Protocol: IEEE 802.1adNetworking Protocol: IEEE 802.1aeNetworking Protocol: IEEE 802.1akNetworking Protocol: IEEE 802.1AXNetworking Protocol: IEEE 802.1DNetworking Protocol: IEEE 802.1pNetworking Protocol: IEEE 802.1QNetworking Protocol: IEEE 802.1sNetworking Protocol: IEEE 802.1tNetworking Protocol: IEEE 802.1WNetworking Protocol: IEEE 802.3ad (LACP)Networking Protocol: IEEE 802.3aeNetworking Protocol: IEEE 802.3baNetworking Protocol: IEEE 802.3xNetworking Protocol: IEEE 802.3zNetworking Protocol: IGMPNetworking Protocol: IGMP v2Networking Protocol: IGMP v3Networking Protocol: OSPFRemote Management Protocol: RMONRemote Management Protocol: SFTPRemote Management Protocol: SNMPRemote Management Protocol: SNMP 2cRemote Management Protocol: SNMP 3Remote Management Protocol: TFTPRouting Protocol: ECMPRouting Protocol: GRERouting Protocol: IGMPRouting Protocol: IGMPv2Routing Protocol: IGMPv3Routing Protocol: OSPFRouting Protocol: Static IPv6 routingRouting Protocol: VRRP
-
This product is subject to our return policy. Please see our complete return policy for details.
-
0 lbs
-
Compliant Standards: TAACompliant Standards: Yes
-
43222612
