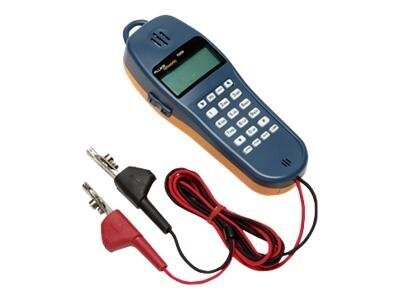

This new feature-rich test set is a necessity for a variety of installs. The TS25D Test Set features data lockout and lockout override, making you completely safe in talk or monitor mode. The DSL/POTS filtering technology allows you to safely draw dial tone without downing DSL. A built-in tone generator simplifies wire identification with a probe. An amplified speaker makes monitoring the line hands-free, so you can keep working. The Talk Battery function provides voltage to carry voice conversation on non-powered pairs. All in a compact unit with an oversized robust liquid crystal display (LCD) that makes the intuitive, common-sense menus easy-to-read and use.
-
Electrical
Return loss: >14dB (ref 600Ohm)
Current range (off-hook): 10 to 100mA
DC Resistance
Off-hook: 150Ohm nominal
On-hook: >1MOhm
AC Impedance
Off-hook: 600Ohm nominal; 300-3400Hz
On-hook: >120kOhm ; 300-3400Hz
Rotary Dial Output
Pulsing rate: 10pps ±1pps
Break/Make ratio: 60/40
Interdigit interval: >300ms
Resistance during break: >100kOhm
DTMF Output
Tone frequency error: +/- 1.5% maximum
Tone level: -1.5 dBm combined (typical)
High versus low tone difference: 2dB ± 2dB
Memory capacity: 10 speed dial memories plus one last number redial memory
Digit capacity: 23 digits per memory
Pause duration: user programmable; default = 4 seconds
Hook flash duration: user programmable; default = 600ms
Automatic speaker shut-off duration: user programmable; default = 5 minutes -
Unit, battery, cord set, documentation
-
Color: BlueColor: YellowManufacturer Product Line: Fluke NetworksModel: TS25D Test SetWeight Taxonomy: 10.02oz
-
Battery Technology: AlkalineVoltage Provided: 9V
-
Battery 9 Volt Alkaline or Lithium battery
-
Due to manufacturer restrictions, all sales for this item are final. Customers can contact Fluke directly at 1-800-283-5853.
-
1.5 lbs
-
43222600
-
Warranty Period: 18 months
