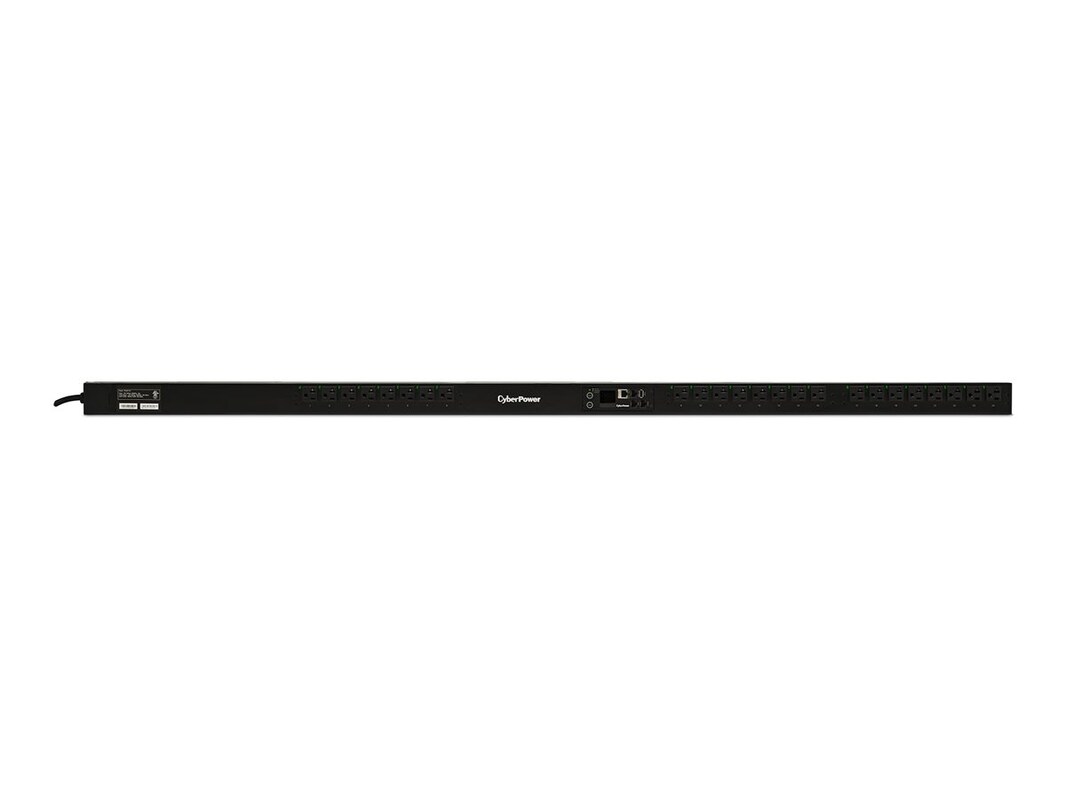

CyberPower Switched 0U PDU 120V 20A, L5-20P Input, (24) 5-20R Outlets

15.43 lbs

Power Distribution:
Delivers AC power to servers, equipment, and connected devices via a power distribution unit.

Switch-Free Design:
Safeguards against accidental power shutdown.

Switchable Outlets:
Provides local and remote control for individual and multiple outlets. Local control: turn on/turn off outlets and disable unused outlets. Remote control: restart outlets and devices, turn on/turn off, schedule power on/off sequencing, and disable unused outlets.

CyberPower Management Console:
CyberPower Management Console is a hardware interface built into switched PDUs. Users can remotely switch individual PDU.

Remote and Local Monitoring:
The user is able to track PDU vitals both offsite and onsite. It also provides control to turn on/off individual outlets or circuits.

Automatic Event Notifications:
Provide immediate updates about power events via email, SMS text, or SNMP traps.

Upgradeable Firmware:
Downloadable firmware updates that provide improvements to programs that run the PDU.

Power Control Display:
Provides easy-to-read information about amperage, voltage, KW, IP address, and other PDU information.

Network-Grade Plugs and Outlets:
Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.

Twist-Lock Plug:
The user can secure the plug into an outlet by twisting and locking into place to prevent accidental disconnection.

Long Input Power Cord:
Allows the user to place the PDU where it’s needed because the power cord reaches distant power sources.

Cord Retention Tray:
Secures power cords. Keeps cord organized and accessible by securing power cord. The cord-retention tray also helps cords stay plugged in.

Configurable Mounting Brackets:
Allows for installation of the PDU in the following configurations: 0U (vertical, under counter, and wall mount), 1U (horizontal, vertical, under counter, and wall mount), and 2U (horizontal and wall mount).

PDU, (2) mounting brackets, (6) M4x5 screws, (6) M5x12 screws/washers, (6) M3x6 screws, L5-20R to 5-20P adapter, cord retention tray, cable ties, RJ45/DB9 serial cable, documentation

65.55"H x 2.2"W x 1.88"D

PDU Type: Switched
Phase: Single Phase

Voltage: 100 – 120 V
Maximum Current: 20A (derated to 16A)
Frequency: 50/60 Hz
Plug Type: NEMA (L)5-20P
Plug Style: Straight
Cord Length: 10 ft

Nominal Output Voltage: 100 – 120 V
Overload Protection (Each Bank): None
Outlets – # of Banks: 1
Outlets – Total: 24
Outlets – Front: 24
Outlet Type: NEMA 5-20R
Meter Readout: Power Control Display
LED Indicators: N/A

Outlet switching: Yes

SNMP / HTTP Remote Monitoring:
IPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, Windows AD

Network Connection: RJ45 (Ethernet), RJ45 (COM Port)
Environmental Sensor: Optional, via RJ45
Modular Expandability (Cascading): Yes, via RJ45
Updateable firmware: Yes, via USB or Ethernet

Multifunction LCD Screen:
Voltage, Frequency, Load, Current, HW/FW Version, Network information, Serial Number

Standard Form Factor: 0U
Style: Vertical Rackmount, Wallmount
Enclosure Construction: Steel
Cord Retention Tray/Cord Organizers: Yes
External Site Ground Pin: Yes
Adjustable Mounting Brackets: 1 set

Operating Temperature: 32 F to 140 F (0 C to 60 C)
Operating Humidity: 0% – 95% non-condensing
Maximum Operating Elevation: 11,483 ft (3,500 m)
