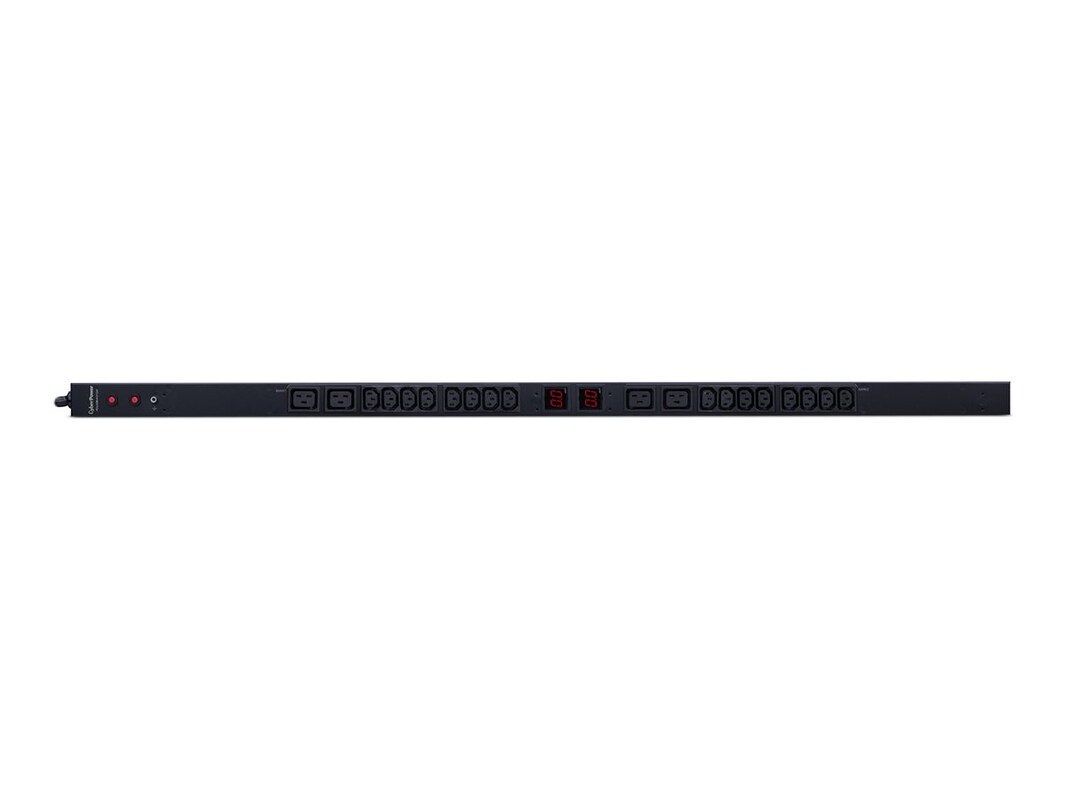

The CyberPower PDU30MVHVT20F, a 20-outlet (front), 0U vertical rackmount basic power distribution unit (PDU), provides 200/230V 30A output. It distributes power to 16 IEC-320 C13, 4 IEC-320 C19 receptacles from a single NEMA L6-30P twist lock plug with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front of two LCDs for real-time load monitoring.
-
9.00 lbs
-
Specifications
Style: Rackmount, Vertical Rackmount, Wallmount/Under-Counter
Form Factors Supported: Vertical or horizontal mounting supported in wallmount applications, racks and a variety of other surface types
Cord Retention Tray/Cord Organizers: Yes
Adjustable Mounting Brackets: (3) sets (L-short/L-long/flat)
External Site Ground Pin: Yes
Certifications: UL60950_1 certified by ETL (USA), CSA C22.2 (Canada), RoHS Compliant -
# Ports: 20Connector: Power IEC 320 EN 60320 C13 (F)Connector: Power IEC 320 EN 60320 C19 (F)Connector: Power NEMA L6-30Connector: Power NEMA L6-30 (M)
-
PDU, cord organizers, adjustable mounting brackets, documentation
-
Color: BlackForm Factor: 0U RackmountForm Factor: Rack-mountableManufacturer Product Line: CyberPower Metered SeriesModel: PDU30MVHVT20F
-
48"h x 1.75"w x 2.25"d
-
Plug Type: NEMA L6-30P
Plug Style: Straight
Cord Length: 10ft
Outlets, Total: (20)
Outlets, Front: (4) C19 + (16) C13
Outlets, Rear: 0
Outlet Type: IEC-320 C13/C19 -
Voltage Provided: 230VVoltage Provided: AC 200-230V
-
Input
Voltage: 200V/230V
Frequency: 50/60Hz
Maximum Input Current: 30A (derated to 24A)
Output
Overload Protection: 16A x 2
Nominal Output Voltage: 200V/230V -
This product is subject to our return policy. Please see our complete return policy for details.
-
10 lbs
-
Compliant Standards: ETLCompliant Standards: RoHSCompliant Standards: UL 60950-1
-
39121017
-
Warranty Period: Limited lifetime
