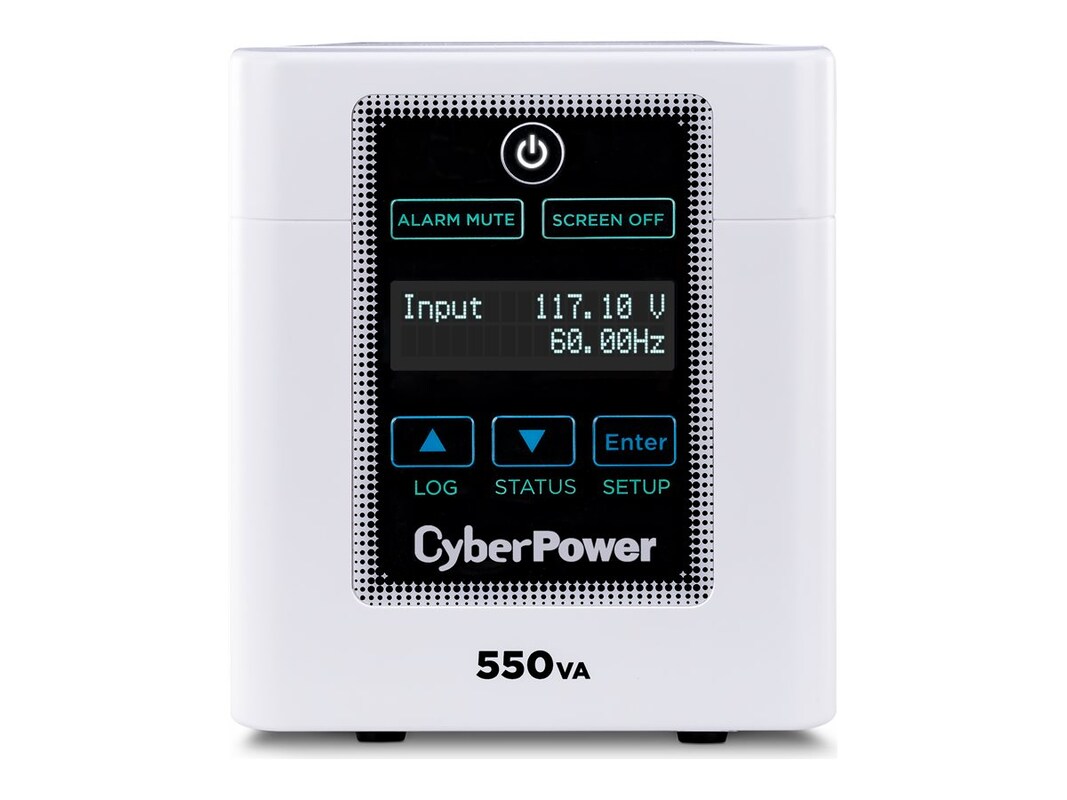

CyberPower Medical Grade 550VA UPS (M550L)

30.10 lbs

NOTE: This UPS is not intended for use in critical care or life support applications.

UPS, USB A+B cable, serial cable, documentation

Battery Backup:
Provides power to cover shorter-outages and supplies power long enough for equipment to properly shut down when utility power fails for longer periods of time. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.

Surge Protection:
Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.

Line Interactive Topology:
Exists when a UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.

Automatic Voltage Regulation (AVR):
Provides clean, consistent AC power by automatically regulating low voltages and over voltages, within defined tolerances, when incoming utility power has minor fluctuations.

UL 60601-1 Tested:
Meets all UL 60601-1 requirements necessary for use in patient-care environments.

Hospital-Grade Plugs & Outlets:
Offer an added degree of safety and reliability to the input/output connections of hospital-grade equipment.

Isolation Transformer:
Minimizes the current leakage and cumulative shock potential of connected equipment to below 100µA (microamps) and helps to alleviate line noise.

Sealed LCD Screen:
Resists dirt, debris and spray, and can withstand repeated cleaning procedures common to patient-care environments.

Multifunction LCD Panel:
Displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime.

Ultra Quiet Design:
Minimizes noise during operation for a quieter patient environment.

Replaceable Batteries:
Can be quickly accessed and replaced by a qualified technician. Batteries are hot-swappable to eliminate unnecessary downtime.

Three-Year Warranty:
CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.

Connected Equipment Guarantee:
CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.

5.4"H x 6.4"W x 13.7"D

UPS Topology: Line Interactive

Voltage: 120Vac
Input Voltage Rang: 90Vac – 150Vac
Adjustable Voltage Range: 88Vac – 150Vac
Input Frequency Range: 60Hz ± 3Hz
Input Circuit Breaker: 6A
Plug Type: 5-15P-HG
Cord Length (ft.): 6

VA: 550
Watts: 440
Power Factor: 0.8
On Battery Voltage: 120 Vac ± 5%
Automatic Voltage Regulation (AVR): 1 Boost/1 Buck
On Battery Frequency: 60 Hz ± 1%
On Battery Waveform: Simulated Sine Wave
Outlet Type: 5-15R-HG
Outlets – Total: 4
Outlets – Battery & Surge Protected: 4
Overload Protection: Internal circuitry limiting / circuit breaker
Transfer Time: <10 ms

Runtime at 112W: 52.2 min
Runtime at Half Load: 25 min
Runtime at 225W: 24.5 min
Runtime at Full Load: 8 min
Battery Type: Sealed Lead-Acid
Battery Size: 12V/7Ah
Battery Quantity: 2
EBM: No
User Replaceable: Yes
Hot-Swappable: Yes
Typical Recharge Time: < 8 hours (Recovery to 90% capacity)
Replacement Battery Pack Quantity: 1

Surge Suppression: 1445 J
Phone / Network Protection: No
Coax Protection RG6: No
EMI/RFI Filtration: Yes

Output Isolation Transformer: Hospital grade load isolation transformer
Leakage Current (Max Shock Potential): <100 µA

LCD Control Panel: Yes
LED Indicators: Power On
HID Compliant USB Port: Yes
Serial Port: Yes
SNMP Card: No
Management Cable: USB Cable
Audible Alarms: On Battery; Low Battery; Overload; Fault

Form Factor: Mini-Tower
Grounding: Gound Screw

Operating Temperature: 32 F to 104 F (0 C to 40 C)
Operating Humidity: 0% – 95% non-condensing
Operating Elevation: 0-10000 feet (0-3000 meters)
Storage Temperature Range: 5 F to 113F (-15C to 45 C)

This product is subject to our return policy. Please see our complete return policy for details.

32.8 lbs

39121011
