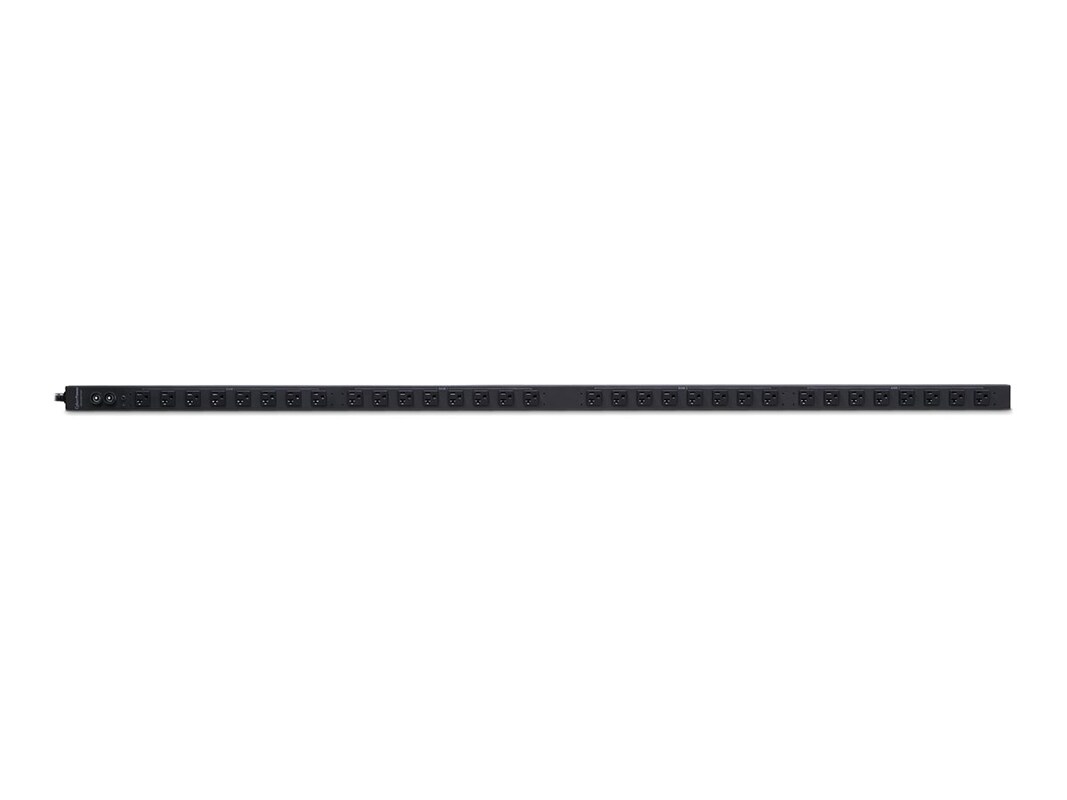

The CyberPower 32-outlet (32 Front) 0U vertical rack mount Basic power distribution unit (PDU30BVT32F) provides 120V, 30A output. It distributes power to (32) NEMA 5-20R receptacles from a single NEMA L5-30P twist lock plug, with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal and wall mount installation, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material and workmanship.
-
12.13 lbs
-
Rack Size: 0U
Style: Rackmount, Vertical Rackmount, Wallmount/Under-Counter
Form Factors Supported: Vertical or horizontal mounting supported in wallmount applications, racks and a variety of other surface types
Cord Retention Tray/Cord Organizers: Yes
Adjustable Mounting Brackets: (3) sets (L-short/L-long/flat)
External Site Ground Pin: Yes
Certifications: UL1363 certified by ETL (USA), CSA C22.2 (Canada)
RoHS Compliant -
# Ports: 32Connector: Power NEMA 5-20 (F)Connector: Power NEMA L5-30Connector: Power NEMA L5-30 (M)
-
PDU, cord retention tray kit, mounting hardware, documentaton
-
Color: BlackForm Factor: 0U RackmountForm Factor: Rack-mountableForm Factor: Wall-mountedManufacturer Product Line: CyberPower Basic SeriesModel: PDU30BVT32FWeight Taxonomy: 12.13lbs
-
70"h x 1.75"w x 2.25"d
-
Plug Type: NEMA L5-30P
Plug Style: Straight
Cord Length: 10ft
Outlets, Total: (32) Front
Outlet Type: NEMA 5-20R -
Voltage Provided: 120VVoltage Provided: AC 120V
-
Input
Voltage: 120V
Current: 30A (derated to 24A)
Frequency: 50/60Hz
Output
Overload Protection: 20A x 2
Nominal Output Voltage: 120VAC -
This product is subject to our return policy. Please see our complete return policy for details.
-
18.84 lbs
-
Compliant Standards: CSA 22.2Compliant Standards: ETLCompliant Standards: RoHSCompliant Standards: UL 60950-1
-
39121017
-
Warranty Period: Limited lifetime
