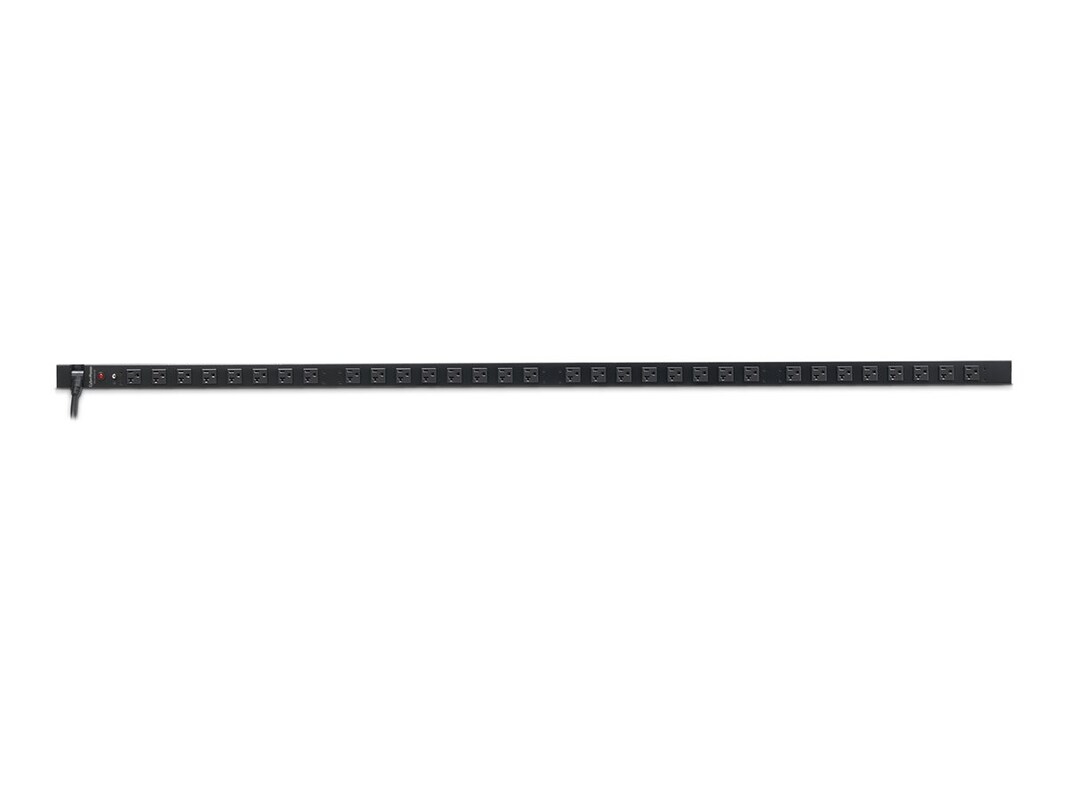

The CyberPower 32-outlet (14 Front) 0U vertical rack mount basic power distribution unit (PDU20BV32F) provides 120V, 20A output. It distributes power to (32) NEMA 5-20R receptacles from a single NEMA 5-20P plug, with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal and wall mount installation, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.
-
10.00 lbs
-
Physical
Rack Size 0U
Style: Rackmount, Vertical Rackmount, Wallmount/Under-Counter
Form Factors Supported: Vertical or horizontal mounting supported in wallmount applications, racks and a variety of other surface types
Cord Retention Tray/Cord Organizers: Yes
Adjustable Mounting Brackets: (3) sets (L-short/L-long/flat)
External Site Ground Pin: Yes
Certifications
UL1363 certified by ETL (USA), CSA C22.2 (Canada)
RoHS Compliant -
# Ports: 32Connector: Power NEMA 5-20Connector: Power NEMA 5-20 (F)Connector: Power NEMA 5-20 (M)
-
PDU, documentation
-
Color: BlackForm Factor: 0U RackmountForm Factor: Rack-mountableForm Factor: Wall-mountedManufacturer Product Line: CyberPower Basic SeriesModel: PDU20BV32FWeight Taxonomy: 9.92lbs
-
70"h x 1.75"w x 1.5"d
-
Input
Plug Type: NEMA 5-20P
Plug Style: Straight
Cord Length: 10ft
Output
Outlets, Total: (32)
Outlets, Front: (32)
Outlets, Rear: 0
Outlet Type: NEMA 5-20R -
Voltage Provided: 120VVoltage Provided: AC 120V
-
Input
Voltage: 120V
Current: 20A max
Frequency: 50/60Hz
Output
Overload Protection: 20A
Nominal Output Voltage: 120V -
This product is subject to our return policy. Please see our complete return policy for details.
-
16.3 lbs
-
Compliant Standards: CSA C22.2Compliant Standards: ETLCompliant Standards: RoHSCompliant Standards: UL 1363
-
39121017
-
Warranty Period: Limited lifetime
