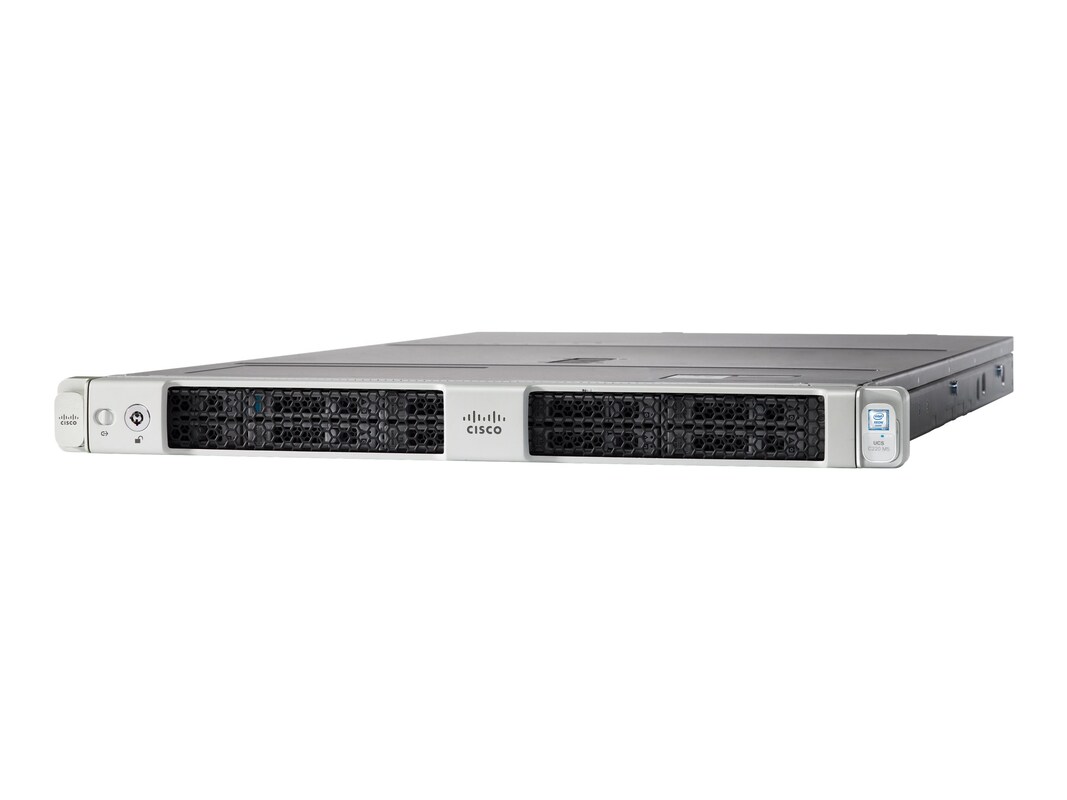

The UCS C220 M5 SFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 1U form factor with the addition of the Intel Xeon Processor Scalable Family, 24 DIMM slots for 2666 MHz DIMMs and big capacities, two 2 PCI Express (PCIe) 3.0 slots, and up to 10 SAS/SATA hard disk drives (HDDs) or solid state drives (SSDs). The C220 M5 SFF server also includes one dedicated internal slot for a 12G SAS storage controller card.
The C220 M5 server included one dedicated internal modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC), without consuming a PCI slot, in addition to 2x 10Gbase-T Intel x550 embedded (on the motherboard) LOM ports.
The Cisco UCS C220 M5 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.
The C220 M5 server included one dedicated internal modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC), without consuming a PCI slot, in addition to 2x 10Gbase-T Intel x550 embedded (on the motherboard) LOM ports.
The Cisco UCS C220 M5 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.
-
# External 2.5" Bays: 10
-
Server, (2) CPU Heatsink, 32GB SD Memory Card, Cisco Ball Bearing Rail Kit, SuperCap cable, mini storage carrier, (10) SFF drive blanking panels, (2) power supplies, documentation
-
Chassis Form Factor: 1U RackmountChassis Form Factor: Rack-mountableColor: GrayColor: SilverForm Factor: DIMM 288-pinPrinter Type: NoneSystem Type: ServerWarranty Period: 3 years
-
Cache Memory (installed): 16MBFlash Memory Form Factor: microSDFlash Memory Form Factor: SD Memory CardMemory Attributes: RegisteredMemory Attributes: Single RankMemory Rating: PC4-21300RAM (installed): 32GBRAM (max): 3072GBRAM Technology: DDR4 SDRAM
-
32GB (2x16GB) *2666MHz DDR4 SDRAM, upgradeable to 3072GB.
There are twenty-four 288-pin DIMM slots. Two slots are occupied by removable 16GB modules; the other slots are open.
*Memory will operate at 2400MHz due to processor limitations
Video memory: ASPEED Pilot 4 graphics with 16MB dedicated video RAM. Connects via VGA interface. -
There is no operating system pre-installed.
-
OS Provided: No Operating System Installed
-
CD/DVD Type: No Optical DriveCD/DVD Type: None
-
1.7"h x 16.9"w x 29.8"d
-
Expansion slots:
(1) PCIe 3.0 x24, HL/HH (x16 mode/NCSI support)
(1) PCIe 3.0 x24, 3/4 length/FH (x16 mode)
(1) mLOM
(1) SD memory card
Expansion bays:
(10) 2.5" HS bays
I/O:
(2) USB 3.0 (back)
(1) VGA, DB-15 (back)
(1) RJ-45 serial (back)
(2) RJ-45 LAN (10GbE; back)
(1) RJ-45 management NIC (back)
(1) KVM (front)
(1) USB 3.0 (internal)
(2) Power in
Networking controller:
Intel X550
2x10GbE ports, features Wake on LAN (WoL)
Storage controller:
Integrated RAID controller, SAS 12Gbps interface type, 2GB buffer size -
# Power Supplies Installed: 2# Power Supplies Supported: 2Power Provided: 1540WPower Provided: 770
-
(2) 770W hot-plug power supplies
1+1 power redundancy -
# Processors Installed: 2# Processors Supported: 2Data Bus Speed: 2400MHzNumber of Cores: 12-coreProcessor Features: Intel Turbo Boost TechnologyProcessor Manufacturer: IntelProcessor Model Number: 4116Processor Speed: 2.1GHzProcessor Speed (Boosted): 3GHzProcessor Type: Xeon SilverProcessor Upgradability: Upgradable
-
Networking Protocol: 10 Gigabit EthernetNetworking Protocol: Gigabit EthernetNetworking Protocol: Wake on LAN (WoL)Remote Management Protocol: CLIRemote Management Protocol: IPMI 2.0Remote Management Protocol: SNMP 2Remote Management Protocol: SNMP 3
-
Due to manufacturer restrictions, all sales on this item are final.
-
1 lbs
-
Compliant Standards: ACPI 4.0Compliant Standards: AS/NZS 60950-1Compliant Standards: AS/NZS CISPR 32 Class ACompliant Standards: CAN/CSA C22.2 No. 60950-1 Second EditionCompliant Standards: CISPR 24Compliant Standards: CISPR 32 Class ACompliant Standards: CNS 13438 Class ACompliant Standards: Directive 2014/30/EUCompliant Standards: Directive 2014/35/EUCompliant Standards: EN 300386Compliant Standards: EN 55032 Class ACompliant Standards: EN 60950-1 Second EditionCompliant Standards: EN55024Compliant Standards: EN61000-3-2Compliant Standards: EN61000-3-3Compliant Standards: FCC CFR47 Part 15 ACompliant Standards: GB4943.1-2001Compliant Standards: ICES-003 Class ACompliant Standards: IEC 60950-1 Second EditionCompliant Standards: KN32 Class ACompliant Standards: KN35Compliant Standards: UL 60950-1 Second EditionCompliant Standards: VCCI Class A
-
Hard Drive Capacity: 0GBHard Drive Type: Hot-swapHard Drive Type: NoneStorage Controller RAID Level: JBODStorage Controller RAID Level: RAID 0Storage Controller RAID Level: RAID 1Storage Controller RAID Level: RAID 10Storage Controller RAID Level: RAID 5Storage Controller RAID Level: RAID 50Storage Controller RAID Level: RAID 6Storage Controller RAID Level: RAID 60Storage Controller Type: RAIDStorage Controller Type: SAS 12.0 Gbps
-
43211501
-
Display Technology: None.Video Card: ASPEED Pilot 4Video RAM (installed): 16MB
