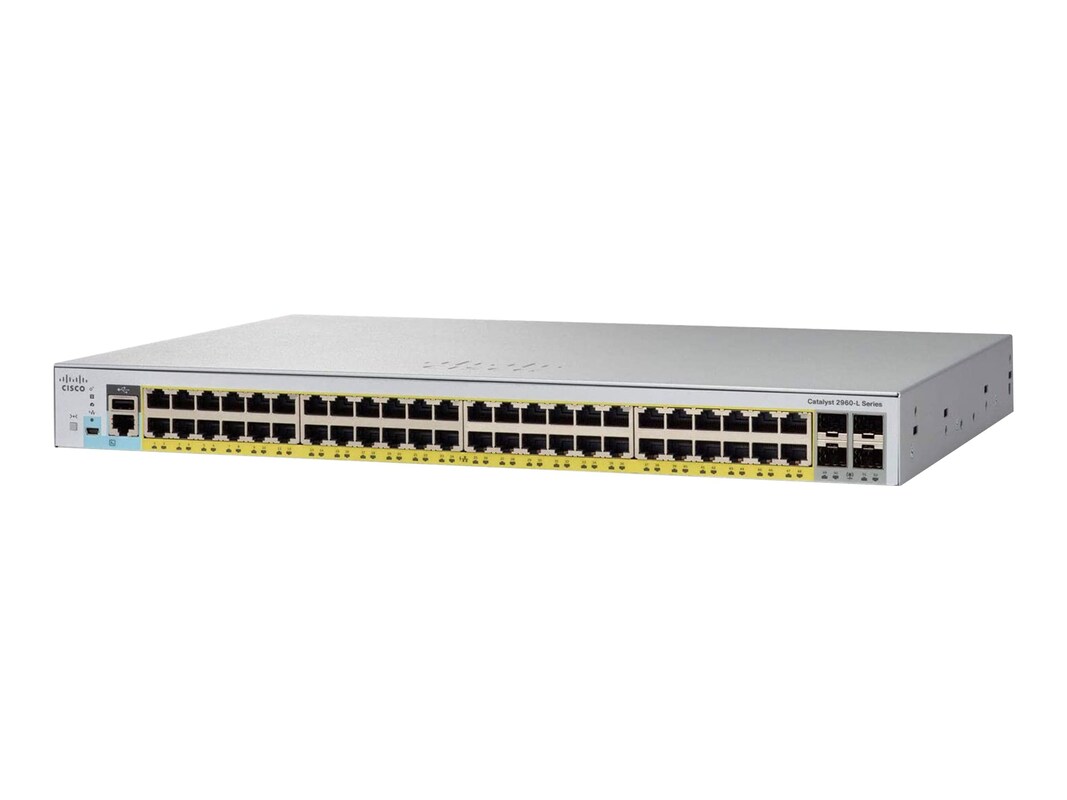

Cisco Catalyst 2960-L Series Switches are fixed and smart-managed Gigabit Ethernet switches that provide enterprise-class access switching for branch offices, out-of-the-wiring-closet applications, and critical Internet of Things (IoT) deployments, as well as small and medium-sized businesses. They operate on Cisco IOS Software and support simple device management and network management via Command Line Interface (CLI) as well as an on-box web interface.
Catalyst 2960-L Smart Managed Switches are secure, reliable, enterprise grade switches built for small office deployments. These switches can be configured and managed via an on-box web interface allowing customers a quick and reliable way to get a small branch or office network up and running within minutes. These switches also feature limited CLI support for troubleshooting and monitoring.
The Cisco Catalyst 2960-L Series and 2960-L Smart Managed Switches are fully managed switches that offer advanced Layer 2 and basic Layer 3 features as well as Power over Ethernet Plus (PoE+) power. These switches deliver enhanced network security, network reliability, and operational efficiency.
Catalyst 2960-L Smart Managed Switches are secure, reliable, enterprise grade switches built for small office deployments. These switches can be configured and managed via an on-box web interface allowing customers a quick and reliable way to get a small branch or office network up and running within minutes. These switches also feature limited CLI support for troubleshooting and monitoring.
The Cisco Catalyst 2960-L Series and 2960-L Smart Managed Switches are fully managed switches that offer advanced Layer 2 and basic Layer 3 features as well as Power over Ethernet Plus (PoE+) power. These switches deliver enhanced network security, network reliability, and operational efficiency.
-
6.57 lbs
-
# Ports: 48
-
Switch, documentation
-
Color Family: GrayForm Factor: Rack-mountableManufacturer Product Line: Cisco CatalystModel: 2960L-SM-48TSWeight Taxonomy: 6.57lbs
-
Forwarding bandwidth: 1G: 52 Gbps; 10G: 88 Gbps
Switching bandwidth: 1G: 104 Gbps; 10G: 176 Gbps
Forwarding rate (64-byte L3 packets): 77.38 Mpps
Unicast MAC addresses: 16000
IPv4 unicast direct routes: 512
IPv4 unicast indirect routes: 256
IPv6 unicast direct routes: 414
IPv6 unicast indirect routes: 128
IPv4 static routes: 16
IPv6 static routes: 16
IPv4 multicast routes and IGMP groups: 1024
IPv6 multicast groups: 1024
IPv4/MAC security ACEs: 384
IPv6 security ACEs: 384
Maximum active VLANs: 256
VLAN IDs available: 4094
IPv4 Static Routes: 16
IPv6 Static Routes: 16
Maximum STP instances: 64
Maximum SPAN sessions: 4
MTU-L3 packet: 9198 bytes
Jumbo Ethernet frame: 10,240 bytes
-
RAM (installed): 512MB
-
CPU: ARMv7 800 MHz
DRAM: 512 MB
Flash memory: 256 MB -
Networking Type: Switch
-
1.7"h x 17.5"w x 9.5"d
-
(48) GbE RJ45
(4) Gb SFP
(1) RJ45 Ethernet console
(1) USB mini-B console
(1) USB-A (for storage and Bluetooth console) -
Single fixed power supply included
Data:
Voltage (auto ranging): 110 to 220V AC in
Frequency: 50 to 60 Hz
Current: 0.29A to 0.48A
Power rating (maximum consumption): 0.09 kVA -
# Processors Installed: 1Processor Speed: 800MHzProcessor Type: ARM7
-
Networking Protocol: Bluetooth 4.0Networking Protocol: Gigabit EthernetNetworking Protocol: IEEE 802.1ab (LLDP)Networking Protocol: IEEE 802.1AXNetworking Protocol: IEEE 802.1DNetworking Protocol: IEEE 802.1pNetworking Protocol: IEEE 802.1QNetworking Protocol: IEEE 802.1sNetworking Protocol: IEEE 802.1WNetworking Protocol: IEEE 802.1xNetworking Protocol: IEEE 802.3Networking Protocol: IEEE 802.3abNetworking Protocol: IEEE 802.3ad (LACP)Networking Protocol: IEEE 802.3aeNetworking Protocol: IEEE 802.3ahNetworking Protocol: IEEE 802.3azNetworking Protocol: IEEE 802.3uNetworking Protocol: IEEE 802.3xNetworking Protocol: IEEE 802.3zRemote Management Protocol: CLIRemote Management Protocol: HTTPRemote Management Protocol: NTPRemote Management Protocol: RMONRemote Management Protocol: RMON 1Remote Management Protocol: RMON 2Remote Management Protocol: SNMPRemote Management Protocol: SNMP 2cRemote Management Protocol: SNMP 3Remote Management Protocol: SSHRemote Management Protocol: SSH-2Remote Management Protocol: TFTPRouting Protocol: IGMPRouting Protocol: MLDRouting Protocol: MLDv2Routing Protocol: RIP
-
Due to manufacturer restrictions, all sales on this item are final. Call the Cisco Technical Assistance Center (TAC) for defective product and technical issues at 1-800-553-6387
-
1 lbs
-
Compliant Standards: AS/NZS 60950-1Compliant Standards: AS/NZS CISPR22 Class ACompliant Standards: CAN/CSA C22.2 No. 60950-1 Second EditionCompliant Standards: CISPR 22 Class ACompliant Standards: CISPR 24Compliant Standards: CNS 13438 Class ACompliant Standards: Directive 2011/65/EUCompliant Standards: EN 300 386Compliant Standards: EN 55022 Class ACompliant Standards: EN 60950-1 Second EditionCompliant Standards: EN 61000-3-2Compliant Standards: EN 61000-3-3Compliant Standards: EN 61000-4-5Compliant Standards: EN55024Compliant Standards: FCC CFR47 Part 15 ACompliant Standards: ICES-003 Class ACompliant Standards: IEC 60950-1 Second EditionCompliant Standards: KN22 Class ACompliant Standards: KN24Compliant Standards: Plug and PlayCompliant Standards: RoHSCompliant Standards: UL 60950-1 Second EditionCompliant Standards: USGv6Compliant Standards: VCCI Class A
-
43222612
-
Warranty Period: Limited lifetime
