Limited Quantity Available
- Call for next available delivery
Entry-level NAS powered by WS IoT 2025!

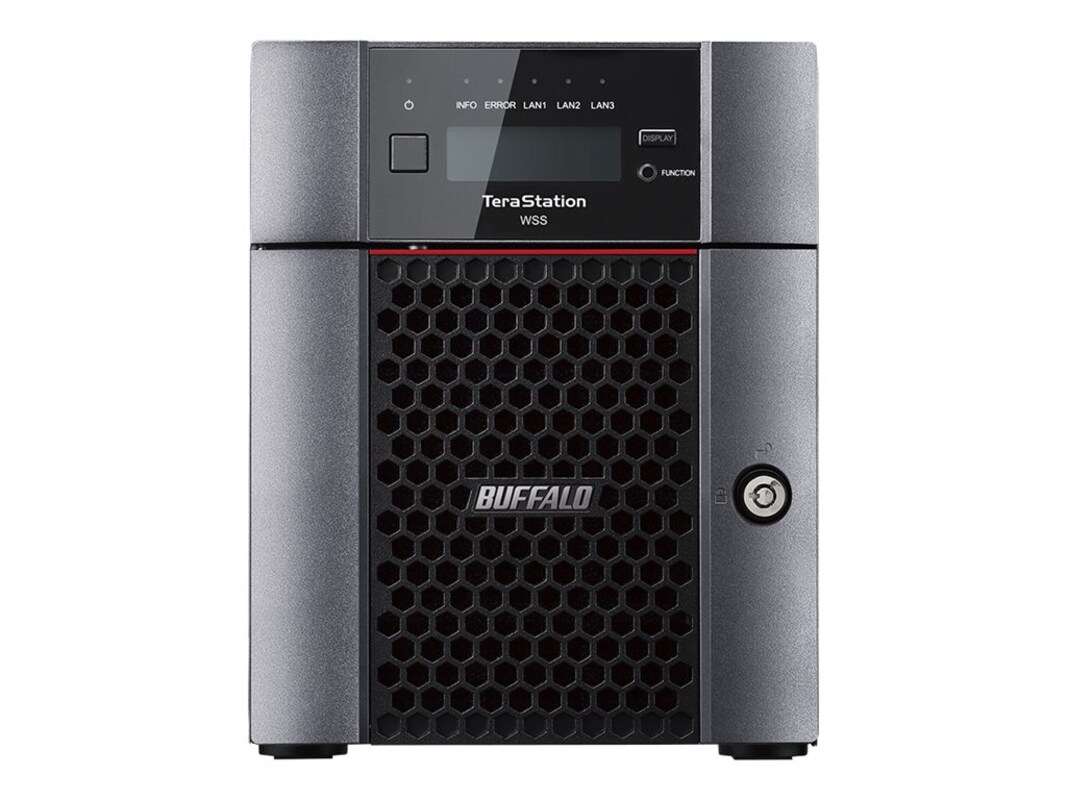

The 16TB TeraStation WS5420 IoT Workgroup Network Storage aims to provide open-ended storage/backup solution for businesses as they see fit. The featured Windows Server IoT 2025 for Storage Workgroup Edition enables a wide variety of IoT scenarios for customers regardless of industry. From manufacturing to retail to medical, Windows Server IoT allows businesses to manage hundreds or thousands of devices, as well as storing, processing, and backing up data from edge-based IoT devices to enact a wide variety of use cases, such as surveillance server storage or device monitoring.
-
11.00 lbs
-
Supported RAID: 0/1/5/JBOD
Supported Protocols: TCP/IP
Network File Services: CIFS/SMB, AFP, FTP, SFTP, NFS, SNMP -
Connector: RJ-45Connector: USB Type AConnector Type: EthernetConnector Type: USB 3.0
-
Unit, AC cable, 6a Ethernet cable, front panel key, software, documentation
-
Color: BlackColor Family: BlackManufacturer Product Line: BUFFALO TeraStation WS5020 IoT SeriesModel: WS5420DNWeight Taxonomy: 15.9lbs
-
Memory Attributes: ECCRAM (installed): 8GBRAM Technology: DDR4 SDRAM
-
Memory: 8GB DDR4 with ECC
-
Windows Server IoT 2025
-
OS Provided: Windows Server IoT 2025 for Storage Workgroup EditionOS Supported: Windows 10OS Supported: Windows 7OS Supported: Windows 8.1
-
CD/DVD Type: None
-
Data Transfer Rate: 1000MbpsData Transfer Rate: 5Gbps
-
8.5"h x 6.7"w x 9.1"l
-
Internal:
(4) 7-pin SATA 6Gb/s port
External:
(2) USB 3.0 Type A ports
RJ-45 10GBASE-T Ethernet port
(2) RJ-45 1000BASE-T Ethernet ports -
Power Consumption
Max: 85W
Data Transfer: 30.7W
Idling: 25.5W
Standby: 6.1W
Power Supply: Internal AC 100-240V Universal 50/60Hz -
# Processors Installed: 1# Processors Supported: 1Number of Cores: Dual-CoreProcessor Manufacturer: IntelProcessor Model Number: C3338Processor Speed: 1.5GHzProcessor Speed (Boosted): 2.2GHzProcessor Type: Atom
-
Networking Protocol: AFPNetworking Protocol: CIFS/SMBNetworking Protocol: FTPNetworking Protocol: IEEE 802.3abNetworking Protocol: IEEE 802.3anNetworking Protocol: IEEE 802.3bzNetworking Protocol: IEEE 802.3iNetworking Protocol: IEEE 802.3uNetworking Protocol: Microsoft Active Directory (AD)Networking Protocol: NFSNetworking Protocol: Server Message Block (SMB)Networking Protocol: SFTPNetworking Protocol: SNMPNetworking Protocol: TCP/IPRemote Management Protocol: SNMPTransport Protocol: CIFSTransport Protocol: FTPTransport Protocol: NFSTransport Protocol: SFTPTransport Protocol: SMBTransport Protocol: TCP/IP
-
This product is subject to our return policy. Please see our complete return policy for details.
-
18.2 lbs
-
Compliant Standards: TAACompliant Standards: Yes
-
# of Bays (Open): 0# of Bays (Total): 4Drive Type: Hard driveHard Drive Capacity: 4TBHard Drive Type: HDDNative Capacity: 16TBStorage Controller RAID Level: RAID 0Storage Controller RAID Level: RAID 1Storage Controller RAID Level: RAID 5Storage Controller Type: RAIDStorage Controller Type: SATA 6.0 GbpsStorage Controller Type: SATA RAID
-
Windows 10 (32-bit/64-bit)
Windows 8.1 (32-bit/64-bit)
Windows 7 (32-bit/64-bit)
Windows Server 2019
Windows Server 2016
Windows Server 2012R2
Windows Server 2012
Mac OS 10.12 or laterOS Required: Apple macOS 10.12 or laterOS Required: Apple macOS 10.12 Sierra or laterOS Required: Microsoft Windows 10 (32/64 bits)OS Required: Microsoft Windows 7 (32/64 bits)OS Required: Microsoft Windows 7 / 8.1 / 10 (32/64 bits)OS Required: Microsoft Windows 7 / 8.1 / 10 / 11OS Required: Microsoft Windows 8.1 (32/64 bits)OS Required: Microsoft Windows Server 2012OS Required: Microsoft Windows Server 2012 R2OS Required: Microsoft Windows Server 2016OS Required: Microsoft Windows Server 2019 -
43222615
-
Warranty Period: 3 years
