Get ultimate durability for even the toughest conditions with a rugged design that features 6 foot drop protection, plus IP54 dust and water resistance even without a case!
Ordering Information
$746.79
Quick View
Getting Details

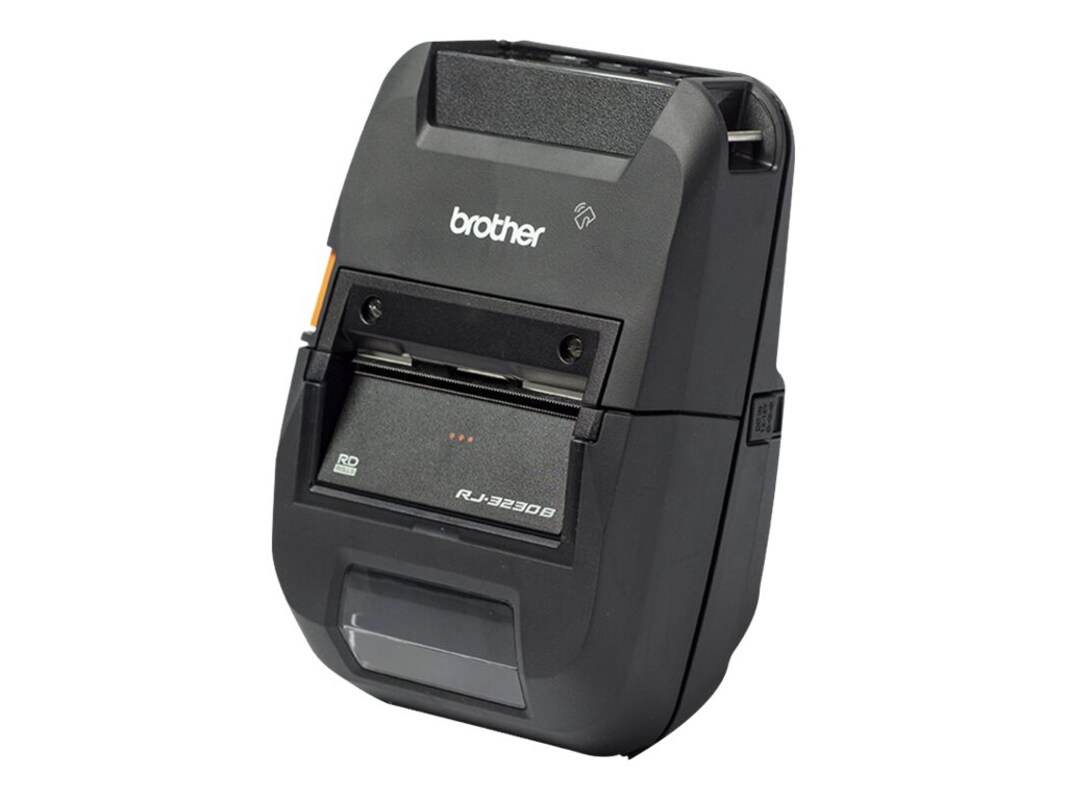

The RuggedJet 3230BL offers extreme durability and large media capacity that make it an optimal solution for on-the-go printing of public safety citations and field service receipts. Plus, you can charge with standard USB-C power and connect to print wirelessly from your mobile device with Bluetooth connectivity. This rugged receipt and label printer also includes a rechargeable smart Li-ion battery with staying power to print in the field or on the road all day.
-
1.50 lbs
-
Printer languages:
BPL (P-touch Template 2.0), Raster, ESC/P
Emulations :
ZPL II, CPCL (CPCL page print mode / CPCL line print mode)
Linear barcodes
Common: CODE39, ITF(I-2/5), EAN-8(JAN8), EAN-13(JAN13), UPC-A, UPC-E, CODABAR(NW-7), CODE128, GS1-128(UCC/EAN-128), POSTNET, GS1 DataBar (RSS)
Additional ESC/P mode: CODE93, UPC/EAN EXTENSION, MSI, Intelligent Mail Barcode
Additional P-touch Template mode: Intelligent Mail Barcode
Additional ZPL II mode: CODE93, UPC/EAN EXTENSION, MSI, Intelligent Mail Barcode, Industrial 2-of-5, Standard 2-of-5
Additional CPCL mode: CODE93, MSI
(Supported barcodes depend on printer command. Please refer to the command reference for details.)
2D barcodes
Common: QR Code, PDF417, MaxiCode, Aztec
Additional ESC/P mode: Micro QR Code, MicroPDF417, DataMatrix
Additional P-touch Template mode: GS1 Databar Composite, Micro QR Code, MicroPDF417, DataMatrix
Additional ZPL II mode: GS1 Databar Composite, MicroPDF417, DataMatrix
Additional CPCL mode: GS1 Databar Composite
(Supported barcodes depend on printer command. Please refer to the command reference for details.)
Fonts
ESC/P: 6 BMP & 4 Outline Fonts
P-touch Template: 4 Outline Fonts
ZPL II: 2 BMP & 1 Outline Font
CPCL: 7 BMP Fonts -
Connectivity Technology: WiredConnectivity Technology: WirelessConnector: RJ-45Connector: USB Type CConnector: WirelessConnector Type: BluetoothConnector Type: Bluetooth 5.0Connector Type: EthernetConnector Type: USBConnector Type: USB-CPrinter Output Type: Monochrome
-
Printer, belt clip, roll holder stop, roll holder (for 1.375" core diameter), Li-Ion smart battery, documentation
-
Language Simulation: BPLLanguage Simulation: Comtec Printer Control Language (CPCL)Language Simulation: CPCL-nativeLanguage Simulation: EPSON ESC/PLanguage Simulation: EPSON ESC/P RasterLanguage Simulation: ZPL II
-
Color Family: BlackManufacturer Product Line: Brother RuggedJetModel: RJ-3230BLCPPrint Technology: Direct thermalPrinter Type: Label printerScanner Type: NoneType: PrinterWeight Taxonomy: 28.46oz
-
Media Capacity (Standard): 1rollsStandard Media Size (max): Roll (2.83 in)Supported Media Type: Black mark labelsSupported Media Type: Receipt labelsSupported Media Type: Tags
-
RAM (installed): 256MB
-
Memory: 256MB DRAM / 128MB Flash
-
Networking Type: Print server
-
B&W H-Resolution (max): 203dpiB&W Print Speed (max): 5inch/secB&W Resolution (max): 203 dpiB&W V-Resolution (max): 203dpi
-
4.6" x 7.1" x 3"
-
USB Type C port
Bluetooth connector
RJ-45 Ethernet port -
Battery Capacity: 3000mAhBattery Technology: Lithium ion
-
Power: 15V DC 4.0A, USB-C
Battery: Rechargeable Li-Ion smart battery, 7.2V, 3000mAh -
Networking Protocol: 802.1xNetworking Protocol: EAP-FASTNetworking Protocol: EAP-MD5Networking Protocol: EAP-TLSNetworking Protocol: EAP-TTLSNetworking Protocol: SNMP 3Networking Protocol: SSLNetworking Protocol: TLS
-
2.53 lbs
-
Compliant Standards: IP54Compliant Standards: MFI
-
OS Required: Android 6.0 (Marshmallow) or laterOS Required: Apple iOS 10 or laterOS Required: LinuxOS Required: Microsoft Windows
-
43212100
-
Warranty Period: 2 years
