Temporarily Out-of-Stock
- Call for next available delivery
- 2688 x 15121280 x 8002016 x 1512 Resolution
- 9mm 50mm Lens
- Capture Speed: 30 frames per second
- Horizontal Field of View (degrees):, 46-9 Vertical Field of View (degrees): 26-5
- TAA, UL, CUL, CE, RCM, FCC Part 15 Subpart B Class B, FCC Part 15 Subpart C Compliant

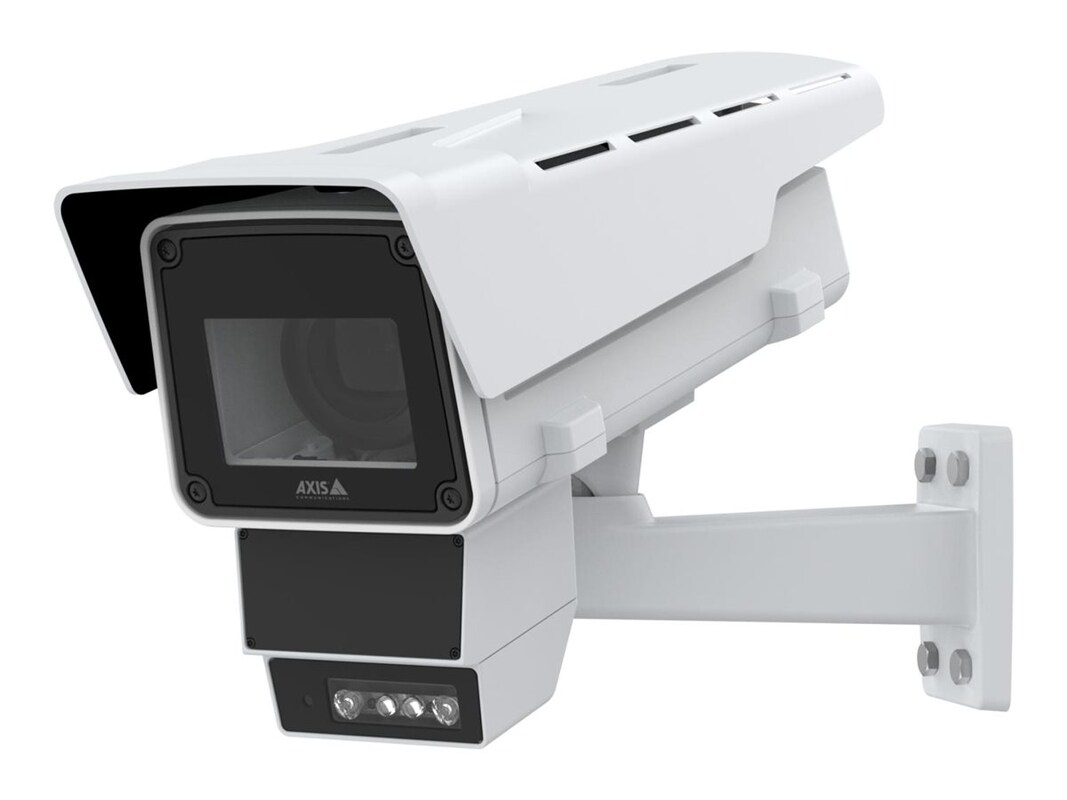

AXIS Q1686-DLE uses a 60 GHz radar to monitor vehicle speeds up to 200 km/h (125 mph), 24/7. It can accurately track speed and direction with a minimum false alarm rate. Featuring a varifocal tele lens with 46°–9° horizontal FoV and traffic-optimized IR illumination kit, it can reliably identify an offending vehicle, 24/7. Built on an open platform, you can use AXIS Q1686-DLE with license plate recognition software to connect the speed and direction to a specific license plate. This enables reliable identification of a vehicle, on the edge– in the camera itself. Furthermore, it offers easy installation and configuration.
-
11.20 lbs
-
Merge vehicle speed and license plate– on the edge
Radar tracking of speed and direction
Monitor speeds up to 200 km/h (125 mph)
Reliable license plate capture and recognition 24/7
Open platform for third-party software
-
Connector: 3.5mm audioConnector: microSD slotConnector: RJ-45Connector: RS-422Connector: RS-485Connector Type: AudioConnector Type: EthernetConnector Type: microSD slotConnector Type: Serial
-
Camera, weathershield, Wall Mount, resistorx T20 tool, terminal block connectors, connector guard, cable gaskets, owner authentication key, documentation
-
Color: NCS S 1002-BColor: WhiteWarranty Period: 5 yearsWeight Taxonomy: 11.24lbs
-
Focal Length (max): 50mmFocal Length (min): 9mmHorizontal Field of View (degrees): 46-9Vertical Field of View (degrees): 26-5
-
2048MB RAM, 8192MB Flash
-
Optical Sensor Type: PS RGB CMOS
-
(1) RJ-45 PoE
(2) 3.5mm audio (in, out)
(1) RS485/RS422
(1) terminal block
(1) MicroSD slot
-
Consumption:
Power over Ethernet (PoE) IEEE 802.3at Type 2 Class 4: 25.5W (max); 10W (typ.)
10–28VDC: 25.5W (max); 9.5W (typ.)
-
Networking Protocol: ARPNetworking Protocol: BonjourNetworking Protocol: CDPNetworking Protocol: CIFSNetworking Protocol: DDNSNetworking Protocol: DHCPNetworking Protocol: DNSNetworking Protocol: FTPNetworking Protocol: HTTPNetworking Protocol: HTTPSNetworking Protocol: ICMPNetworking Protocol: IGMPNetworking Protocol: IPv4Networking Protocol: IPv6Networking Protocol: LLDPNetworking Protocol: mDNSNetworking Protocol: MQTTNetworking Protocol: NTPNetworking Protocol: NTSNetworking Protocol: QOSNetworking Protocol: RTCPNetworking Protocol: RTPNetworking Protocol: RTSPNetworking Protocol: RTSPSNetworking Protocol: SFTPNetworking Protocol: SIPNetworking Protocol: SMBNetworking Protocol: SMTPNetworking Protocol: SNMPNetworking Protocol: SRTPNetworking Protocol: SSHNetworking Protocol: SyslogNetworking Protocol: TCP/IPNetworking Protocol: TLSNetworking Protocol: UDP/IPNetworking Protocol: UPnPNetworking Protocol: USGv6Networking Protocol: Zeroconf
-
This product is subject to our return policy. Please see our complete return policy for details.
-
0 lbs
-
Compliant Standards: BFR-freeCompliant Standards: CECompliant Standards: CFR freeCompliant Standards: CULCompliant Standards: FCC Part 15 Subpart B Class BCompliant Standards: FCC Part 15 Subpart CCompliant Standards: IEEE 802.1aeCompliant Standards: IEEE 802.1arCompliant Standards: IEEE 802.1xCompliant Standards: IK10Compliant Standards: IP66Compliant Standards: NEMA Type 4XCompliant Standards: RCMCompliant Standards: TAACompliant Standards: UL
-
46171610
-
Digital Video Capture Resolution: 1280 x 800Digital Video Capture Resolution: 2016 x 1512Digital Video Capture Resolution: 2688 x 1512Digital Video Capture Speed: 30frames per second
