The APC Symmetra PX is a world class, redundant, scalable, power protection system designed to cost effectively provide high levels of availability. Seamlessly integrating into today's state-of-the-art data center designs, the Symmetra PX is a true modular system. Made up of dedicated and redundant modules -- power, intelligence, battery and bypass, all engineered into a design that is easily and efficiently serviceable -- this architecture can scale power and runtime as demand grows or as higher levels of availability are required. Symmetra PX serves as the core power train that drives APC InfraStruXure systems for small and medium data centers but can also power individual "zones" of larger data centers. Highly manageable, the Symmetra PX features self-diagnostic capabilities and standardized modules which mitigate the risk of human error resulting in increased overall data center reliability.

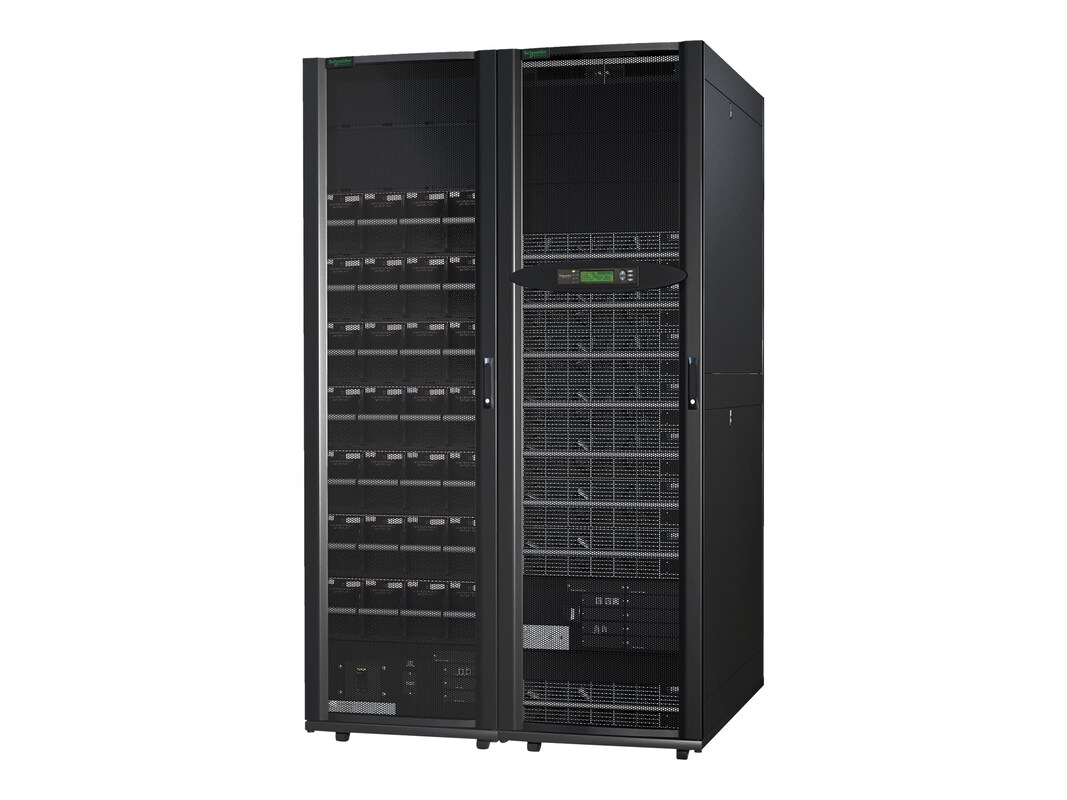

This APC Symmetra PX 70kW Scalable to 100kW, 208V with Startup is a modular, high-efficiency 3-phase UPS that is hot-scalable up to 100kW, suitable for use in small to medium data centers and high density zones.
This APC Symmetra PX 70kW Scalable to 100kW, 208V with Startup is a modular, high-efficiency 3-phase UPS that is hot-scalable up to 100kW, suitable for use in small to medium data centers and high density zones.
-
3386.00 lbs
-
Communications & Management
Interface Ports: SmartSlot
Available SmartSlot Interface Quantity: (2)
Control panel: Multi-function LCD status and control console
Audible Alarm: Alarm when on battery, distinctive low battery alarm, configurable delays
Conformance
Regulatory Approvals: CE, EN/IEC 62040-3, FCC Part 15 Class A, ISO 14001, ISO 9001, UL 1778 -
# Ports: 1Connector: Hardwire 5-wire (3PH + N + G)Connector: Hardwired
-
UPS, network management card, documentation
-
Color: BlackEnclosure Type: Plug-in moduleForm Factor: ExternalWarranty Period: 1-year warrantyWeight Taxonomy: 3392.88lbs
-
79.2"h x 42.25"w x 42.1"d
-
Output Connection: (1) Hard Wire 5-wire (3PH + N + G)
-
Battery Run Time (max): 6.4minPower Capacity (VA): 70000VAPower Provided: 70kWSurge Suppression: StandardVoltage Provided: 192V
-
Output
Output Power Capacity: 70kW/70kVA
Max Configurable Power: 100kW/100kVA
Nominal Output Voltage: 120V, 208V, 208V 3-phase
Efficiency at Full Load: 93%
Output Voltage Distortion: Less than 2%
Output Frequency (sync to mains): 57-63Hz for 60Hz nominal
Waveform Type: Sine wave
Output Voltage Tolerance: +/-1% static and +/- 5% at 100% load step
Output Voltage THD: < 2% for 0 to 100% linear load and < 6% for full n
Efficiency at Half Load: 92%
Bypass: Built-in Static Bypass
Input
Nominal Input Voltage: 208V, 3-phase
Input Frequency: 40-70Hz
Input voltage range for main operations: 177-239V (208V)
Maximum Input Current: 332A
Input Total Harmonic Distortion: Less than 5% for full load
Batteries & Runtime
Battery Type: VRLA
Included Battery Modules: (7)
Available Battery Slots: (2)
Typical recharge time: 2 hours
Nominal Battery Voltage: +/-192V (split battery referenced to neutral)
End of Discharge Battery Voltage: +/-154V
Maximum Available Short Circuit Current: 30kA
Efficiency in Battery Operation: 92%
End of Discharge Maximum Battery Current: 351A
Runtime at full load: 6.4 minutes (70kW)
Runtime at half load: 18.2 minutes (35kW) -
Remote Management Protocol: HTTPRemote Management Protocol: SNMP
-
This product is subject to our return policy. Please see our complete return policy for details.
-
375.6 lbs
-
Compliant Standards: FCC Part 15 ACompliant Standards: IEC 62040-3Compliant Standards: ISO 14001Compliant Standards: ISO 9001Compliant Standards: NEMA Type 1Compliant Standards: UL 1778
-
