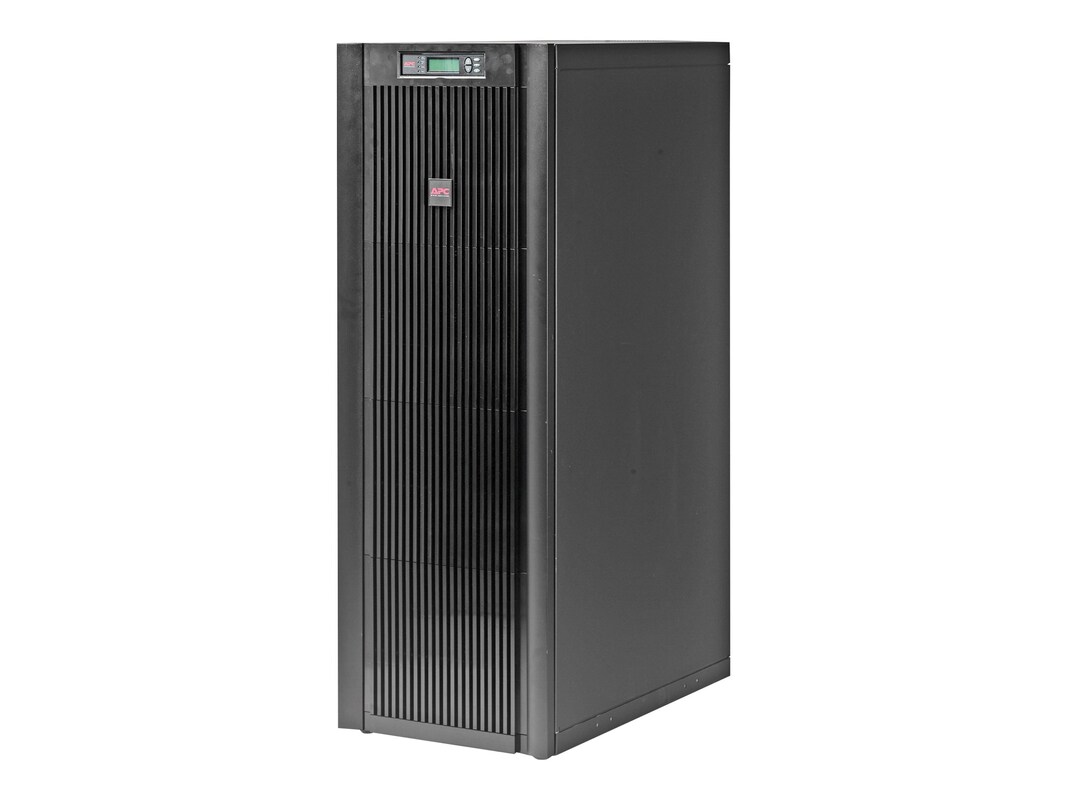

The APC Smart-UPS VT gives you centralized three-phase power protection with the reliability of the Smart-UPS family. Ideal for small data centers, large retail stores, regional offices, and dense power requirements, the Smart-UPS VT includes dual-mains input, automatic and maintenance bypasses, and scalable runtime with hot-swappable batteries for increased availability. Low cost of ownership is achieved through best-in-class efficiency and a reduction in the rating of electrical infrastructure -- wires, transformers and generators -- due to the Smart-UPS VT's Soft Start feature. The i9ncluded APC Network Management Card with temperature monitoring provides remote monitoring and management through a simple Web/SNMP interface and provides integration with InfraStruXure Manager. Serviceability is greatly enhanced by user-replaceable batteries, manageable extended run frames and included startup and standard onsite warranty services. All these features make the Smart-UPS VT the easiest UPS in its class to deploy, manage and maintain.
-
1181.00 lbs
-
Communications and Management
Interface Ports: DB-9 RS-232, Smart-Slot
Pre-Installed SmartSlot Card: AP9619
Control panel: Multi-function LCD status and control console
Audible Alarm: Audible and visible alarms, configurable delays
Emergency Power Off (EPO): Yes -
# Ports: 2Communication Interface: EthernetCommunication Interface: Serial (RS-232)Connector: Hardwire 5-wire (3PH + N + G)Connector: Power Hard Wire 5-wire (3PH + N + G)
-
UPS, (3) battery modules, bolt-down brackets, power modules, Web/SNMP card, Smart UPS signalling RS-232 cable, software, start-up service, documentation
-
Attributes: Double conversion onlineColor: BlackEnclosure Type: InternalForm Factor: ExternalForm Factor: TowerWarranty Period: 1-year warrantyWeight Taxonomy: 1183.87lbs
-
59"h x 20.6"w x 36.4"d
-
Output Connections
(1) Hard Wire 5-wire (3PH + N + G)
(1) Screw Terminals
Input Connection
Hard Wire 5-wire (3PH + N + G) -
Battery Run Time (max): 5.5minBattery Run Time (max): 6minPower Capacity (VA): 30000VAPower Provided: 24kWPower Provided: 24000WSurge Suppression: StandardSurge Suppression: YesVoltage Provided: AC 120/208/220V
-
Output
Output Power Capacity: 24kW/30kVA
Maximum Configurable Power: 24kW/30kVA
Nominal Output Voltage: 120V, 208V, 208V 3-PH
Output Voltage Note: Configurable for 208 and 220VAC 3-Phase
Efficiency at Full Load: 93.3%
Output Voltage Distortion: Less than 5% at full load
Output Frequency (sync to mains): 57-63Hz for 60Hz nominal
Crest Factor: Unlimited
Waveform Type: Sine wave
Overload Operation: 10 minutes @ 125% and 60 seconds @ 150%
Input
Bypass: Built-in Maintenance Bypass, Built-in Static Bypass
Nominal Input Voltage: 208VAC, 3-PH
Input Frequency: 47-70Hz (auto sensing)
Input voltage range for main operations: 165-240VAC
Other Input Voltages: 165-240V
Maximum Input Current: 80A
Input Breaker Capacity: 125A
Batteries and Runtime
Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte
Included Battery Modules: (3)
Available Battery Slots: (1)
Typical recharge time: (3) hours
Replacement battery cartridge: SYBT4
RBC Quantity: (1)
Nominal Battery Voltage: +/-192V (split battery referenced to neutral)
Discharge Battery Voltage: +/-154V
Typical Backup Time at Half Load: 18 minutes (12000 Watts)
Typical Backup Time at Full Load: 6 minutes (24000 Watts) -
Remote Management Protocol: HTTPRemote Management Protocol: HTTPSRemote Management Protocol: SNMPRemote Management Protocol: WAP
-
This product is subject to our return policy. Please see our complete return policy for details.
-
1250 lbs
-
Compliant Standards: CULCompliant Standards: ISO 14001Compliant Standards: ISO 9001Compliant Standards: UL 1778
-
39121011
-
1 Year
-
1 Year
