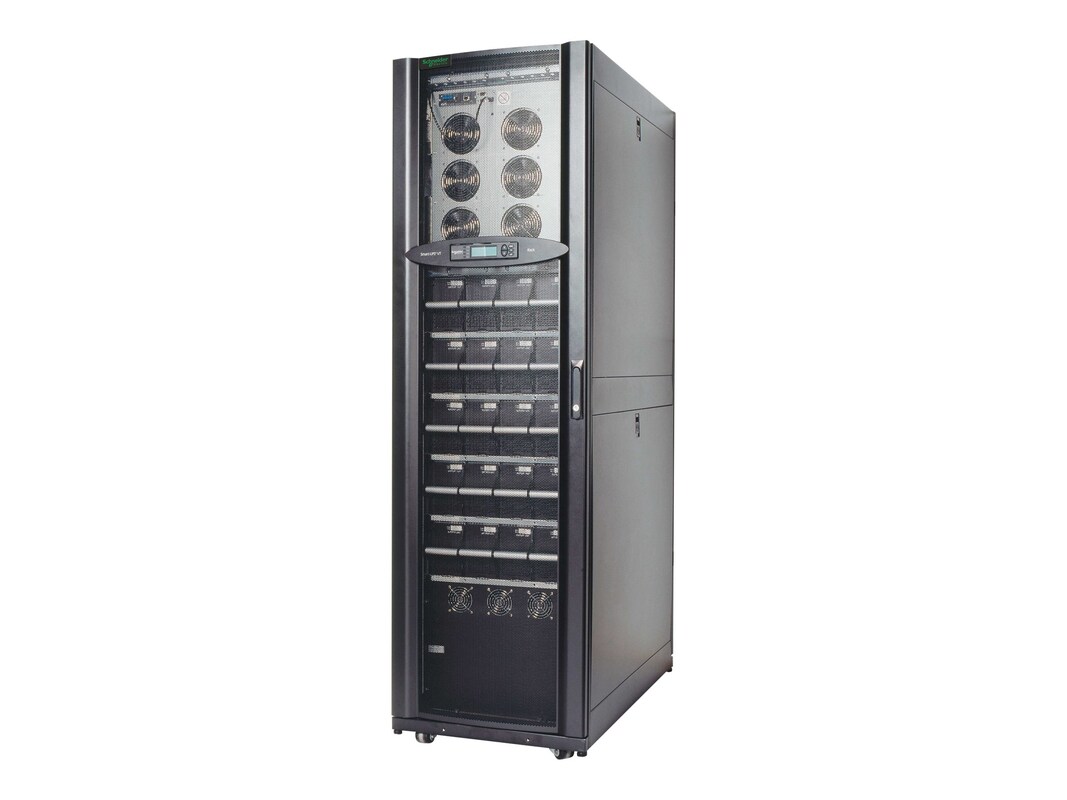

This APC Smart-UPS VT provides 20kVA of backup power with a dual mains power source and battery modules connected in parallel for increased availability. Scalable runtime allows additional run time to be quickly added as needed. Clean, uninterrupted power to protected equipment is provided while batteries are being replaced or when generator power is used. Features include: field-replaceable power distribution panel, locking cabinet, multiple cable-entry points and resettable circuit breakers. Its modular design provides fast serviceability and reduced maintenance requirements via self-diagnosing, field-replaceable modules.
InfraStruXure Manager enables centralized management and the UPS can be manage remotely over the network. Intelligent battery management provides higher availability through intelligent precision-charging that maximizes battery performance, life, and reliability.
InfraStruXure Manager enables centralized management and the UPS can be manage remotely over the network. Intelligent battery management provides higher availability through intelligent precision-charging that maximizes battery performance, life, and reliability.
-
1690.00 lbs
-
Communications and Management
Pre-Installed SmartSlot Card: AP9619
Control panel: multi-function LCD status and control console
Audible alarm: audible and visible alarms, configurable delays
Emergency Power Off (EPO): Yes -
# Ports: 6Communication Interface: EthernetConnector: Hardwire 4-wire (3PH + G)Connector: Power Hard Wire 5-wire (3PH + N + G)Connector: Power NEMA L21-20 (F)
-
UPS, power modules installed, signalling cable, startup service, management card, software, documentation
-
Attributes: Double conversion onlineColor: BlackEnclosure Type: InternalForm Factor: ExternalForm Factor: Rack-mountableWarranty Period: 1-year warrantyWeight Taxonomy: 1693.13lbs
-
78.5"h x 23.6"w x 42.3"d
-
(1) Hard Wire 5-wire (3PH + N + G) for output
(5) NEMA L21-20R outlets
(1) Hard Wire 5-wire (3PH + N + G) for input
(1) SmartSlot expansion port with AP9619 Web/SNMP card installed -
Battery Run Time (max): 5.5minPower Capacity (VA): 20000VAPower Provided: 16kWPower Provided: 16000WSurge Suppression: StandardVoltage Provided: 208VVoltage Provided: AC 120/208/220V
-
Output
Output power capacity: 16,000W/20,000VA
Maximum configurable power: 16,000W/20,000VA
Nominal output voltage: 120V, 208V, 208V 3PH
Output voltage note: configurable for 200, 208 or 220VAC 3 Phase nominal output voltage
Efficiency at full load: 93.80%
Output voltage distortion: less than 5% at full load
Output frequency (sync to mains): 57-63Hz for 60Hz nominal
Crest factor: Unlimited
Waveform type: sine wave
Input
Bypass: built-in maintenance bypass, built-in static bypass
Nominal input voltage: 480VAC 3PH
Input frequency: 40-70Hz
Input voltage range for main operations: 408-552VAC
Input breaker capacity: 40A
Batteries and Runtime
Battery type: VRLA
Included battery modules: (2)
Available Battery Slots: (3)
Typical recharge time: 3 hours
Replacement battery cartridge: SYBT4
RBC quantity: (2)
Typical backup time at half load: 18.1 minutes (8000W)
Typical backup time at full load: 5.5 minutes (16000W) -
Remote Management Protocol: HTTPRemote Management Protocol: SNMPRemote Management Protocol: Telnet
-
This product is subject to our return policy. Please see our complete return policy for details.
-
1767 lbs
-
Compliant Standards: CULCompliant Standards: ISO 14001Compliant Standards: ISO 9001Compliant Standards: UL 1778
-
39121011
-
1 Year
-
1 Year
-
Startup service included
