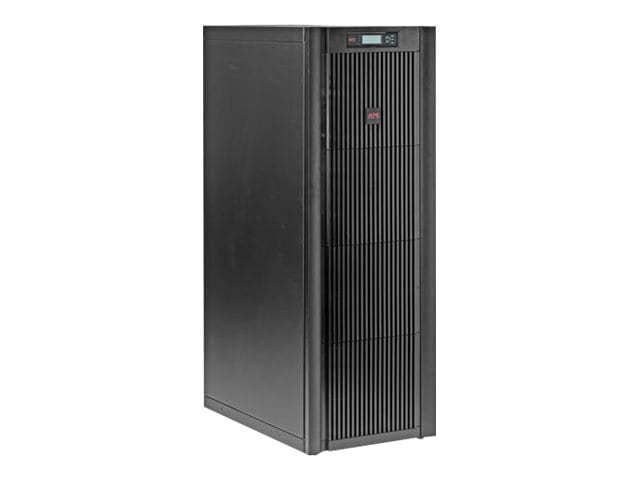

Effective 10-40kVA 3 phase UPS power protection against downtime and data loss for mission critical applications.
-
1181.00 lbs
-
Pre-Installed SmartSlot card: AP9619
Control panel: multi-function LCD status and control console
Audible alarm: audible and visible alarms, configurable delays
Emergency Power Off (EPO): Yes -
# Ports: 2Communication Interface: EthernetCommunication Interface: Serial (RS-232)Connector: Hardwire 5-wire (3PH + N + G)Connector: Power Hard Wire 5-wire (3PH + N + G)
-
UPS, (3) battery modules, power modules, bolt-down brackets, Web/SNMP management card, software, documentation
-
Attributes: Double conversion onlineColor: BlackEnclosure Type: InternalForm Factor: ExternalForm Factor: TowerWarranty Period: 1-year warrantyWeight Taxonomy: 1183.87lbs
-
59"h x 20.6"w x 32"d
-
(1) Hard Wire 5-wire (3PH + N + G) power out
(1) Screw Terminals power out
(1) Hard Wire 5-wire (3PH + N + G) power in
(1) DB-9 RS-232 interface port
(1) Smart-Slot (occupied) -
Battery Run Time (max): 11.5minPower Capacity (VA): 20000VAPower Provided: 16kWPower Provided: 16000WSurge Suppression: StandardSurge Suppression: YesVoltage Provided: 230VVoltage Provided: AC 120/208/220V
-
Output power capacity: 16kW/20kVA
Maximum configurable power: 16kW/20kVA
Nominal output voltage: 120VAC, 208VAC, 208VAC 3PH
Output voltage note: configurable for 208 and 220VAC - 3 Phase
Efficiency at full load: 94%
Output voltage distortion: less than 5% at full load
Output frequency: 57-63Hz for 60Hz nominal
Built-in Maintenance Bypass
Built-in Static Bypass
Nominal input voltage: 208VAC 3PH
Input frequency: 40-70Hz
Input voltage range for main operations: 165-240VAC
Other input voltages: 220VAC
Maximum input current: 53A
Input breaker capacity: 80A
Battery type: VRLA
Included battery modules: (3)
Available battery slots: (1)
Typical recharge time: 5 hours
RBC quantity: (1)
Typical backup time at half load: 31.2 minutes (8000 Watts)
Typical backup time at full load: 11.5 minutes (16000 Watts) -
Remote Management Protocol: HTTPRemote Management Protocol: HTTPSRemote Management Protocol: SNMPRemote Management Protocol: TelnetRemote Management Protocol: WAP
-
This product is subject to our return policy. Please see our complete return policy for details.
-
1249 lbs
-
Compliant Standards: CULCompliant Standards: ISO 14001Compliant Standards: ISO 9001Compliant Standards: NEMA Type 1Compliant Standards: UL 1778
-
39121011
-
1 Year
-
1 Year
