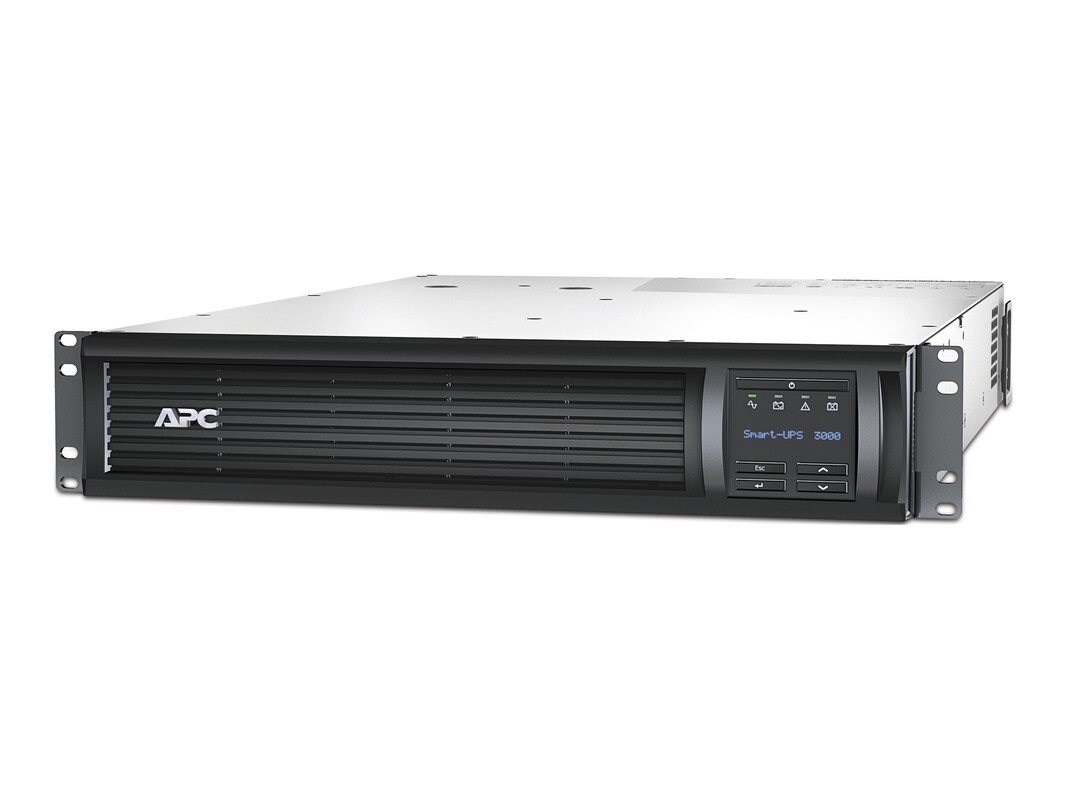

APC Open Box Smart-UPS 3000VA LCD RM 2U 120V w Smartconnect (SMT3000RM2UC)

97.42 lbs

UPS, rack mounting hardware, rack mounting support rails, Smart-UPS signalling RS-232 cable, USB cable, CD with software, documentation CD

Adjustable voltage sensitivity:
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

Adjustable voltage-transfer points:
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

Audible alarms:
Provides notification of changing utility power and UPS power conditions

Automatic restart of loads after UPS shutdown:
Automatically starts up the connected equipment upon the return of utility power.

Automatic self-test:
Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Battery failure notification:
Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Boost and Trim Automatic Voltage Regulation (AVR):
Eliminates voltage fluctuations as a source of AV signal degradation and component power-supply stress.

Disconnected battery notification:
Warns when a battery is not available to provide backup power.

Energy meter:
Provides actual kilowatt hours of usage for energy conscious users.

Green mode:
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

Hot-swappable batteries:
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Intelligent battery management:
Maximizes battery performance, life, and reliability through intelligent, precision charging.

Intuitive LCD interface:
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.

LED Indicators:
Provide easy-to-read status of the unit and utility power conditions.

Network manageable:
Provides proactive notifications of changing power or unit conditions and provides the user the ability to remotely control PMU functions.

Outlet group control:
Turn on/off, reboot or shut down select outlet groups to save dispatching technicians to remote locations (for UPSs with switched outlet groups).

Predicitive failure notification:
Provides early-warning fault analysis ensuring proactive component replacement.

Predictive replace battery date:
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.

Pure sine wave output on battery:
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

Safety-agency approved:
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Sequenced network shutdown and reboot:
Customize network shutdown and reboot sequence of connected servers and UPSs.

Serial connectivity:
Use any Home Automation network to monitor and control the S20 through its RS-232 serial port. For information on how to communicate with the S20, see APC's Application Note #102. Crestron and AMX installers should visit their respective websites for information on how to integrate the S20 into those networks.

Sine wave output:
Eliminates humming and heat generated when powering tubelights and fans.

Single switched outlet group:
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.

StruxureWare Data Center Expert compatible:
Enables centralized management via StruxureWare Data Center Expert.

Temperature-compensated battery charging:
Prolongs battery life by regulating the charge voltage according to battery temperature.

USB connectivity:
Provides management of the UPS vi

3.39"H x 18.9"W x 26.89"D

Output power capacity: 2.7 KWatts / 2.88 kVA
Max Configurable Power (Watts): 2.7 KWatts / 2.88 kVA
Nominal Output Voltage: 120V
Output Voltage Distortion: Less than 5%
Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
Other Output Voltages: 110, 127
Topology: Line Interactive
Waveform type: Sine wave
Output Connections: (2) NEMA 5-20R (Battery Backup); (6) NEMA 5-15R (Battery Backup)
Transfer Time: 6ms typical : 10ms maximum


Nominal Input Voltage: 120V
Input frequency: 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections: NEMA L5-30P
Cord Length: 8ft ( 2.44meters )
Input voltage range for main operations: 82 - 144V
Input voltage adjustable range for mains operation: 75 - 154V
Number of Power Cords: 1
Other Input Voltages: 110, 127

Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time: 3 hour(s)
Replacement Battery: SMT3000RM2UNC
Expected Battery Life (years): 3 - 5
RBC Quantity: 1

Interface Port(s): SmartSlot , USB
Control panel: LED status display with On Line : On Battery : Replace Battery and Overload indicators, Multi-function LCD status and control console
Audible Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Available SmartSlot Interface Quantity: 1

Surge energy rating: 459Joules

Rack Height: 2U
Color: Black

Operating Temperature: 32 - 104 F ( 0 - 40 C )
Operating Relative Humidity: 0 - 95 %
Operating Elevation: 0-10000ft ( 0-3000meters )
Storage Temperature: -15 - 45 C
Storage Relative Humidity: 0 - 95 %
Storage Elevation: 0-50000ft ( 0-15000meters )
Audible noise at 1 meter from surface of unit: 55.0dBA
Online thermal dissipation: 348.0BTU/hr
