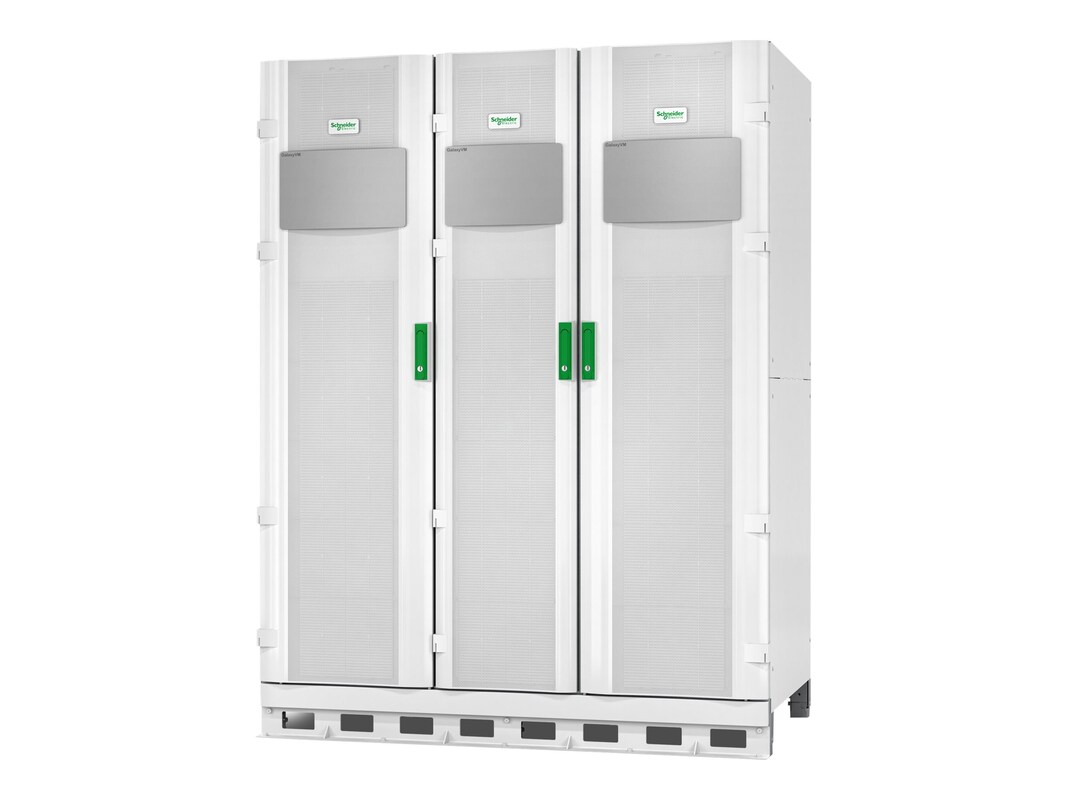

The APC Galaxy VM System Bypass Cabinet 450K 480V is a system bypass cabinet for use in a parallel configuration. It has a maximum load capacity of 450 kVA.
-
1067.00 lbs
-
Bypass cabinet, documentation
-
Color: WhiteForm Factor: ExternalModel: System Bypass CabinetWarranty Period: 1-year warrantyWeight Taxonomy: 1069.23lbs
-
77.56"H x 59.25"W x 32.95"D
-
Power Capacity (VA): 450000VAVoltage Provided: AC 480V
-
Nominal Output Voltage: 480V 3PH
Nominal Input Voltage" 480V 3PHInput frequency 40 - 70 Hz
Operating Temperature: 32 - 104 F ( 0 - 40 C )
Operating Relative Humidity: 0 - 95 %
Operating Elevation: 0-3333ft ( 0-999.9meters )
Storage Temperature: -15 - 40 C
Storage Relative Humidity: 0 - 95 %
Storage Elevation: 0-49212ft ( 0-14763.6meters -
This product has a limited return policy. For defective returns, technical issues and support please contact APC directly at 800-555-2725. Defective units should be replaced through APC directly. Visit http://www.apc.com/us/en/support/contact-us for APC warranty details and contact information.
-
1235 lbs
-
Compliant Standards: CULCompliant Standards: EN 62040-3Compliant Standards: Energy StarCompliant Standards: FCC Part 15 ACompliant Standards: FCC Part 15 BCompliant Standards: IEC 62040-3Compliant Standards: OSHPDCompliant Standards: UL 1778
-
39121000
