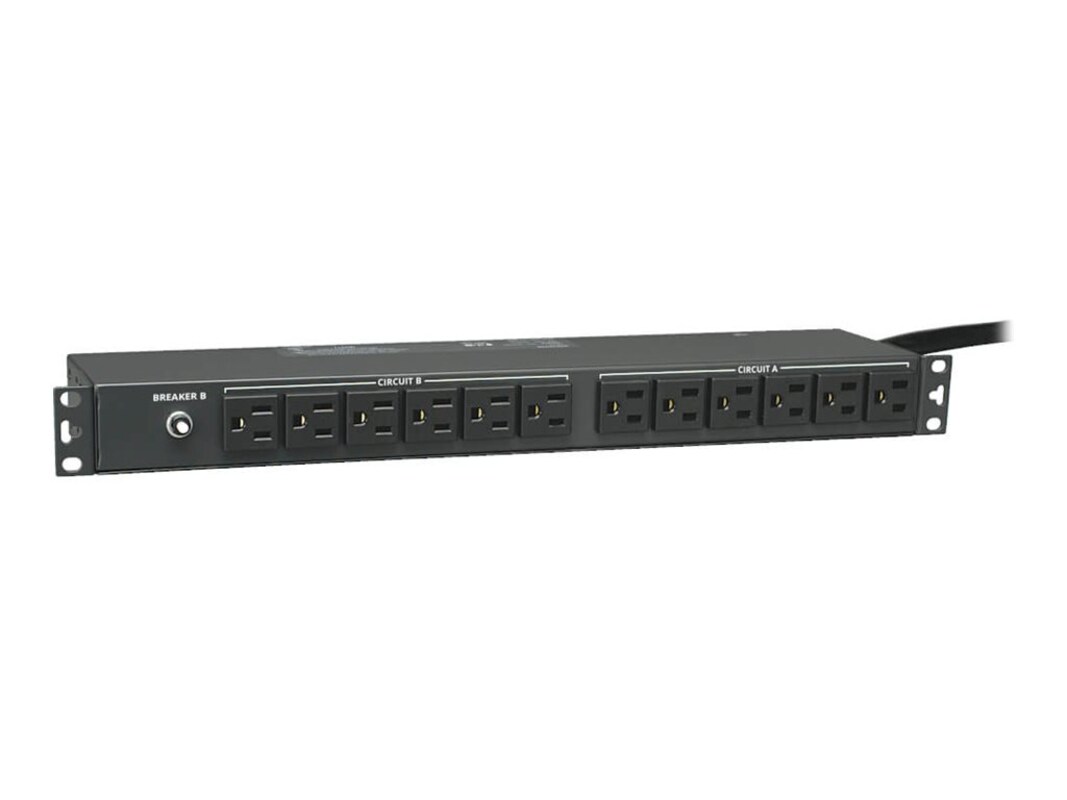

The Tripp Lite PDU2430 AC power distribution unit gives you 30 amp, 120V capacity in a versatile multi-mount cabinet. Detachable mounting flanges are configurable for wallmount, under-counter or 1U/0U rackmount installation. Uses only 1 rack space (1U) when installed in any 19 inch rack, with the potential for 0U mounting in the cable management area of most rack enclosures. Detachable flanges with pre-punched access holes and adjustable depth channels give you configuration choices in dozens of potential mounting schemes. Unfiltered electrical pass-through without a power switch makes PDU2430 ideal for distributing an alternate waveform UPS or generator power in rack enclosures, network closets and more. It includes (24) NEMA5-15R outlets, a 15ft. AC power cord, two 15 amp circuit breakers, grounding lug and rugged all-metal case design.
-
# Ports: 24Connector: Power NEMA 5-15 (F)Connector: Power NEMA L5-30Connector: Power NEMA L5-30 (M)
-
Unit, documentation
-
Color: BlackForm Factor: Rack-mountableManufacturer Product Line: Eaton Tripp Lite SeriesModel: PDU Basic 120V 2.9kW 30A 5-15R 24 Outlet L5-30P Horizontal 1URMWarranty Period: 5 years
-
1.75"h x 17.5"w x 4.5"d
-
(24) NEMA 5-15R outlets (12 front, 12 rear)
(1) NEMA L5-30P input cord, 15ft. -
Power Provided: 2.9kWVoltage Provided: 120V
-
Voltage compatibility: 120VAC
Frequency compatibility: 50/60Hz
Output capacity: 2880VA
Maximum input current: 30A per phase
Recommended electrical service: 120VAC, 30A -
This product is subject to our return policy. Please see our complete return policy for details.
-
7.75 lbs
-
Compliant Standards: CULCompliant Standards: UL
-
