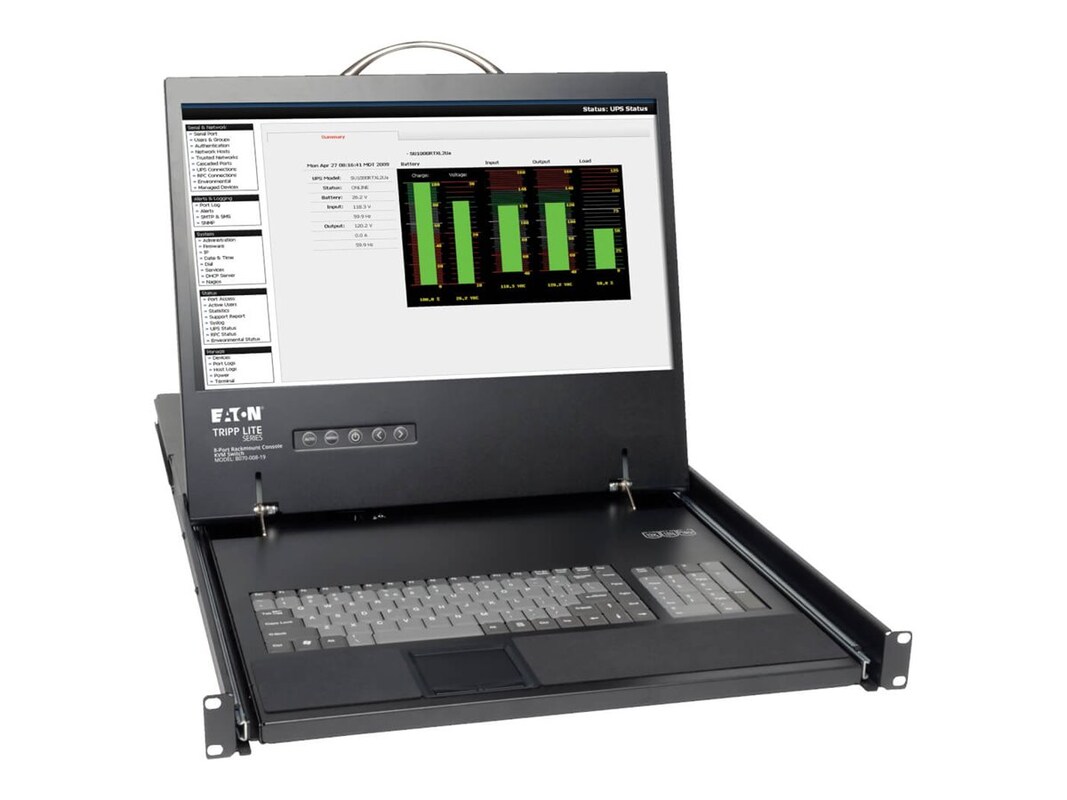

Tripp Lite NetCommander Console Cat5 KVM Switch, 8-Port with 19" LCD

Saves Space and Money
? Combines 8-port KVM switch, 19" LCD screen, keyboard and touchpad in a 1U rack-mountable drawer – ideal when rack space is at a premium
? Mounts into 19"-wide rack, 27"-42" deep; can be mounted in 2-post rack with B019-000
? Flip-up/fold-down screen keeps console from blocking access to rack equipment when not in use
? Eliminates need to buy costly monitors, keyboards and mice for each computer/server
? Uses inexpensive Cat5e/6/6a Cables
? Low-cost cables lets you locate servers up to 100 ft. from the switch
? Use a plug-and-play Server Interface Unit, B078-101-USB-1 (for USB) with each server that will be connected with Cat5 cable
? For computers with Displayport or HDMI, change to VGA using adapters P134-06N-VGA-V2 or P131-06N. Maximum video resolutions using adapters may vary.
Simplifies IT Tasks
? Switch easily between the 8 ports via on-screen display or keyboard hot key commands
? Hot pluggable; add or remove USB computers without having to power down the switch
? Auto-scan mode automatically sequences through all active ports accessible to the user
Large 19" LCD
? Extra-wide display makes multitasking easier
? Supports video resolutions up to 1366 x 768
? DDC emulation allows the video settings of each computer to be automatically adjusted for optimal output to the LCD
Multi-Level Password Security
? Multi-level password security limits access to authorized users (administrator, supervisor or user)
? Two-level log-out allows manual log-out or automatic log-out after a user-defined period of time has passed
Expandability and Long-Lasting Reliability
? Expandable - Cascade a second level of KVM switches to control up to 128 servers from a single station using B072-008-1, B072-008-1A, B072-016-1 and/or B072-016-1A to increase the number of ports.
? Compatible with all major operating systems for easy integration into your existing structure
? Firmware is upgradable with included cable and utility
? Heavy-duty steel housing stands up to frequent use
TAA Compliant
? Complies with the Federal Trade Agreements Act for GSA Schedule purchases.
