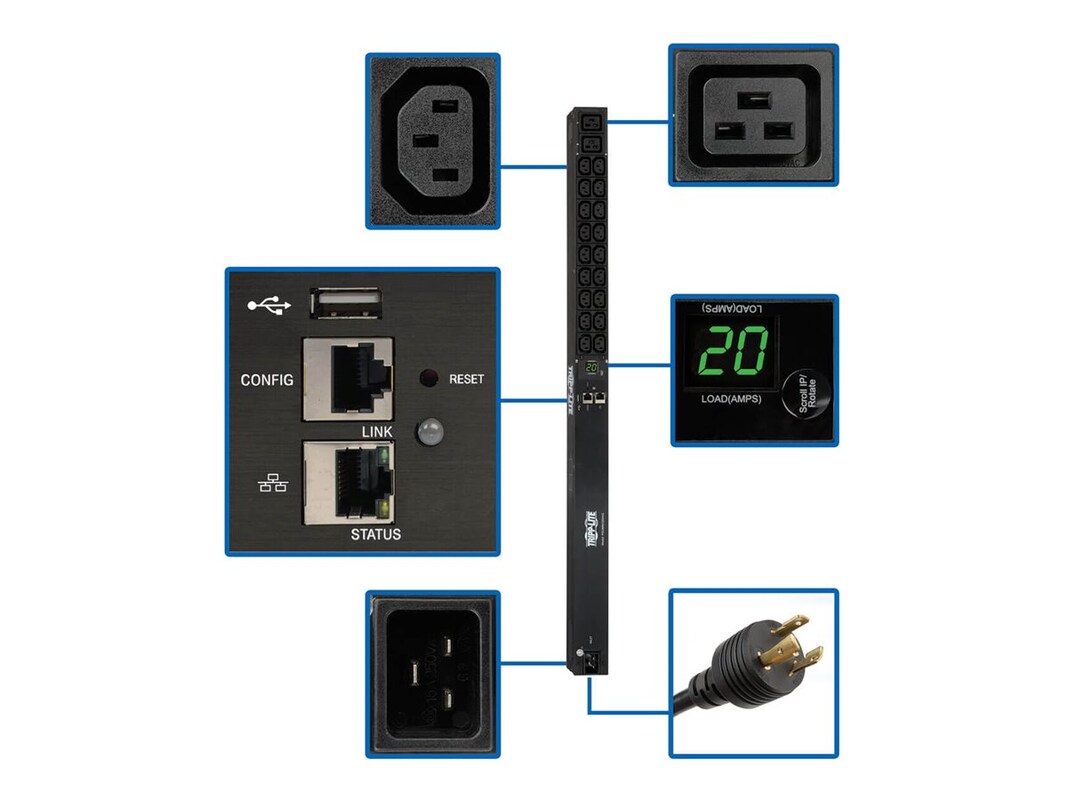

Tripp Lite Monitored 0U PDU 3.3 3.7kW 208 230V 20A, C20 L6-20P Input, (18) C13 (2) C19 Outlets, LX, TAA

6.50 lbs

Distributes and Monitors Network-Grade AC Power:
3.3/3.7kW 208/230V 16/20A monitored PDU with single-phase input
C20 inlet compatible with wide variety of user-supplied power cords
Detachable 10 ft. cord with NEMA L6-20P plug included
Firmware upgrades support future product enhancements

18 C13 and 2 C19 Outlets Distribute AC Power:
Included plug-lock inserts prevent cables from becoming accidentally disconnected

Digital Ammeter:
Reports total connected equipment load in real time
Supports IP-address self-ID
Rotates 180° for easy reading at either angle

Built-In LX Platform Interface:
Allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH
Supports 10/100 Mbps auto-sensing for communication with an Ethernet network
Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities
No Java required

Broad Communications Compatibility:
Supports IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP
Supports automatic and manual assignment of IP address

Essential Safety Features:
Tiered access allows administrator and guest to log in via web browser
Immediate alert notifications via email or SNMP traps
Supports user-specified alarm notification thresholds
Real-time clock backup maintains day/date even if PDU is unpowered

Easy 0U Installation in EIA-Standard 19 in. Racks:
90cm PDU mounts vertically using included toolless buttons or rack-mounting brackets
Included PDUMVROTATEBRKT allows mounting with rear-facing outlets

TAA-Compliant:
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

PDU with built-in LX platform interface, detachable NEMA L6-20P to C19 power cord (10ft), configuration cable, (20) plug-lock inserts, rack mounting hardware, PDUMVROTATEBRKT mounting bracket accessory, documentation

35.5"H x 2.2"W x 1.85"D

PDU Type: Monitored

Output Capacity Details: 3.68kW (230V), 3.33kW (208V) / 16A total capacity; 16A max per C19 outlet; 12A (10A CE) max per C13 outlet
Frequency Compatibility: 50 / 60 Hz
Output Receptacles: (18) C13; (2) C19
Output Nominal Voltage: 208; 230
Overload Protection: n/a

PDU Input Voltage: 208; 230
Recommended Electrical Service: 20A 208V; 16A 230V
Maximum Input Amps: 20
Input Connection Type: C20 inlet accepts included L6-20P input cable. Alternate C19 input cordsets supported.
PDU Plug Type: NEMA L6-20P; IEC-320 C20
Input Cord Length (ft.): 10
Input Phase: Single-phase

Front Panel LCD Display: Digital meter reports PDU output current in amps, Scroll IP-address information; Display can be rotated 180 degrees for installation with the input cable at the top

Front Panel LEDs: n/a

Switches: Press the SCROLL IP / ROTATE button and release after one second to display the configured IP address in 2 digit intervals; Press and release after two seconds to rotate the display 180 degrees

Material of Construction: Metal
Form Factors Supported: Vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks
PDU Form Factor: 0U; Vertical

Storage Temperature Range: 5 to 140F (-15 to 60C)
Relative Humidity: 5 to 95% non-condensing
Operating Elevation (ft.): 0-10,000
Operating Elevation (m): 0 - 3000 m

SNMP Compatibility: Built-in LX Platform Interface
